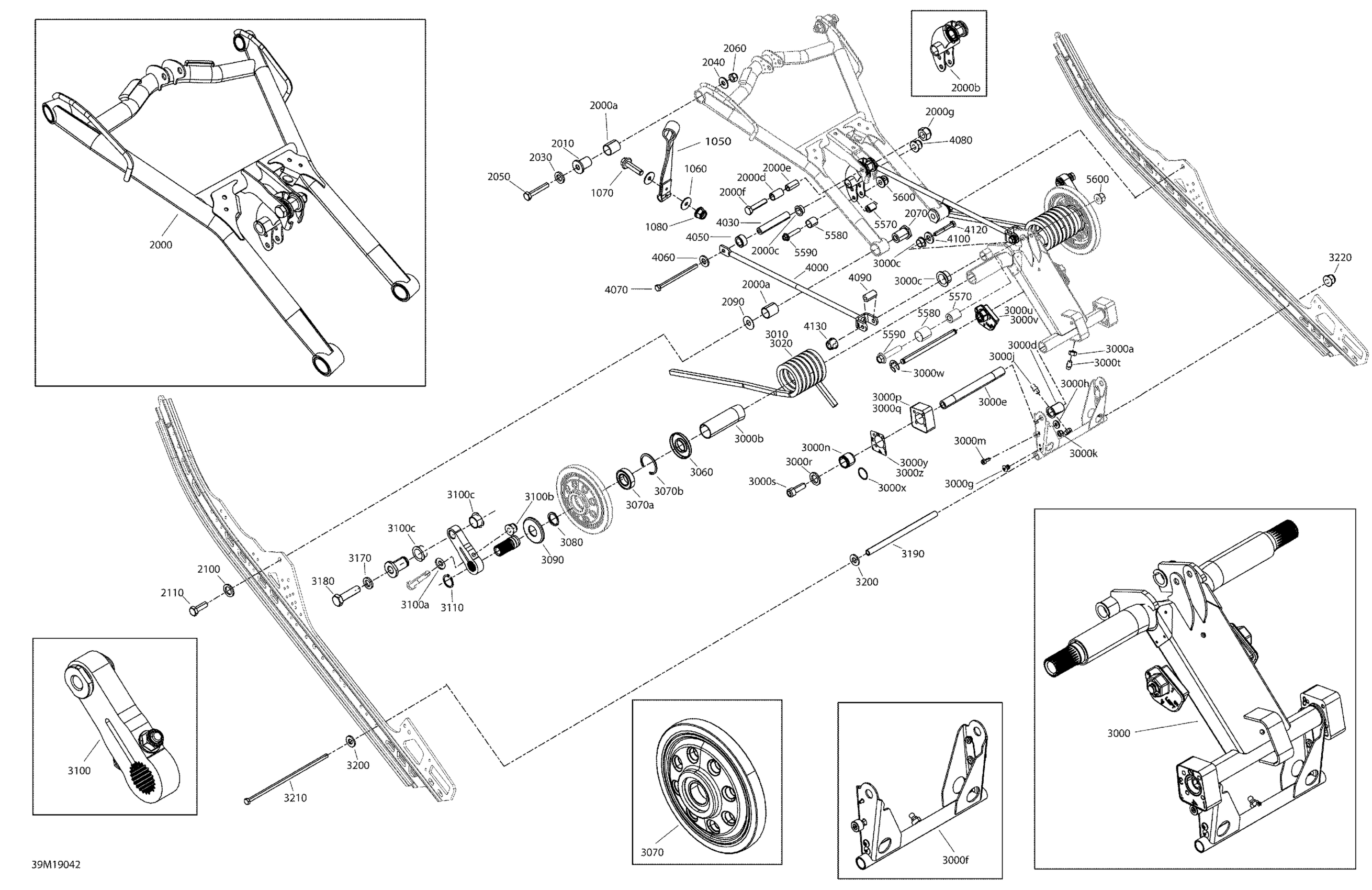

Ski-Doo 003 - RENEGADE 600R E-TEC - Enduro, 2019 08- Rear Suspension - Enduro - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503192759

$25.99

1060

Flat Washer 8 mm

250200128

$4.44

1070

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

1080

Elastic Flange Nut M8

233281466

$1.01

2000

Front Arm Ass'y | Included 2000 to 2000g

503194529

$465.99

2000a

Bushing

503191554

$6.14

2000b

Rocker

503192531

$76.99

2000c

Swivel Bushing

503191555

$7.83

2000d

Bushing

503193037

$16.18

2000e

Bushing | Includes 240d to 240d1

503189282

$4.34

2000f

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000g

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2010

Axle

503190698

$20.99

2030

Washer

503192496

$0.77

2040

Washer

503191926

$1.58

2050

Hex. Cap Screw M10 X 60

207006056

$7.51

2060

Elastic Locking Nut M10

233601466

$2.11

2070

Lower Axle

503191966

$15.89

2090

Washer

503190656

$2.96

2100

Washer

503192491

$4.54

2110

Hex. Cap Screw M12 X 35

250000537

$3.17

3000

Rear Arm Ass'y | Included 3000 to 3000u

503193617

$285.99

3000a

Hexagonal Nut M6

232061404

$0.34

3000b

Bushing

503192767

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

Cushion

503191640

$5.93

3000e

Lower Shaft

503192981

$20.99

3000f

Pivot Arm Ass'y | Included 3000f to 3000f.p

503192823

$124.99

3000g

Pop Rivet 3/16"

390402200

$0.35

3000h

Flat Washer

517225900

$0.18

3000j

Grease Fitting

408200700

$3.49

3000k

Elastic Stop Nut M5

232551414

$0.87

3000m

Socket Head Screw M4X 10

205041060

$2.11

3000n

Guide Block

503192749

$6.19

3000p

LH Cam Block

503192918

$14.99

3000q

RH Cam Block

503192919

$14.99

3000r

Washer

503192491

$4.54

3000s

Socket Head Screw M12 X 35

205523554

$4.44

3000t

Grease Fitting

408200700

$3.49

3000u

LH Cam Adjuster

503191565

$16.49

3000v

RH Cam Adjuster

503191566

$16.49

3000w

E-Circlip

293370013

$0.65

3000x

O-Ring

503192921

$2.32

3000y

LH Block Sticker Decal

516004900

$18.99

3000z

RH Block Sticker Decal

516004901

$18.99

3010

LH Spring

503192081

$67.99

3020

RH Spring

503192080

$67.99

3060

Labyrinth Seal

503190434

$6.09

3070

Black Wheel Ass'y 155 mm | Included 3070 to 3070b

503192808

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3080

Axle Spring

503189146

$9.59

3090

Labyrinth Ring

503192592

$4.99

3100

Link Ass'y | Includes 3100 to 3100f

503195985

$75.99

3100a

Washer

503192494

$3.17

3100b

Elastic Flange Nut M8

233281466

$1.01

3100c

Swivel Bushing

503191555

$7.83

3110

Retaining Ring

293370080

$2.29

3170

Washer

503192496

$0.77

3180

Cap Screw Hex. M10 X 40

207204056

$7.51

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Link Rod

503193058

$19.99

4030

Axle Bar

503193063

$38.99

4050

Spacer

503193064

$10.49

4060

Washer

503192494

$3.17

4070

Screw M8 X 120, 10.9

503193499

$18.49

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle Bar

503192555

$14.15

4100

Washer

503192494

$3.17

4120

Hex. Screw M8 X 55

207085556

$1.69

4130

Elastic Flange Nut M8

233281466

$1.01

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex. Flange Screw M8 X 40

207684044

$1.48

5600

Elastic Flange Nut M8

233281466

$1.01

8000

Black, Wheel Cap

503192771

$2.39
