Description

Price

10

Fuel Tank

415130432

$329.99

15

Tube Ass'y

513033959

$28.99

20

Fuel Tank Cap

513033860

$24.49

60

Check Valve

513033849

$36.99

65

Truss Torx Screw K40 X 16

250000918

$2.11

80

Polyurethane Hose 10000Mm Long

219704410

$56.99

90

Tie-Rap 180 mm

414115200

$0.11

95

Tie-Rap 180 mm

414115200

$0.11

300

Fuel Pump Ass'y | Includes 300a to 300a3

513034236

$259.99

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130726

$149.99

310

Circlip

513033798

$13.99

320

O-Ring

513033862

$23.99

420

Bushing

513033807

$7.62

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

500

Kit Hose Assy This part replaces 513033974.

861805533

$153.49

500a

Fuel Filter

513034047

$21.99

500b

Oetiker Clamp

293650125

$3.29

500c

Crimp Clamp

293650053

$3.09

500d

O-Ring

513033668

$10.99

500e

Y Fitting

513033926

$2.79

560

Hose Ass`y | Includes 560 to 560c This part replaces 513033922.

415130220

$153.49

560a

Oetiker Clamp

293650125

$3.29

560b

Crimp Clamp

293650053

$3.09

560c

O-Ring

513033668

$10.99

560d

Bracket

513033903

$1.49

560e

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

600

Hose Ass`y | Includes 600 to 600c This part replaces 513034001.

415130221

$153.49

600a

Ring

513033910

$7.99

600b

O-Ring

513033668

$10.99

600c

Crimp Clamp

293650053

$3.09

600d

Bracket

513033903

$1.49

600e

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

610

Bracket

513033903

$1.49

680

Hex. Flange Screw M5 X 16

250000911

$0.85

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.46

800

Insulated Foam

513033913

$5.59

805

Insulated Foam

513033914

$16.99

810

Tank Guide

513033826

$2.29

820

Pop Rivet 3/16"

390402200

$0.35

860

Foam

513033915

$19.49

865

Foam

513033916

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

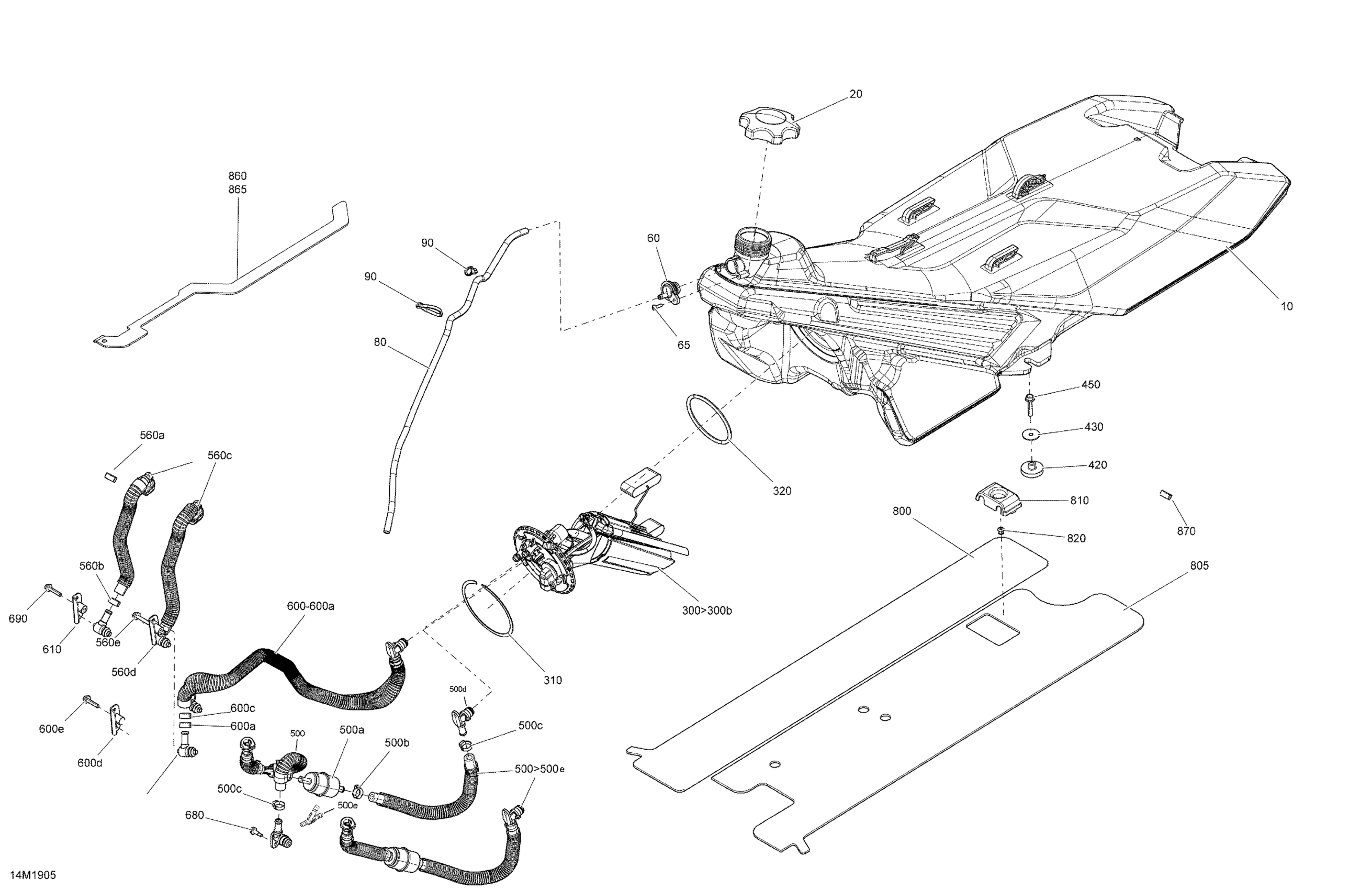

Ski-Doo 003 - RENEGADE 600R E-TEC - Enduro, 2019 02- Fuel - North America Diagram

Fuel Tank

Tube Ass'y

Fuel Tank Cap

Check Valve

Truss Torx Screw K40 X 16

Polyurethane Hose 10000Mm Long

Tie-Rap 180 mm

Tie-Rap 180 mm

Fuel Pump Ass'y | Includes 300a to 300a3

Fuel Filter

Fuel Level Sensor

Circlip

O-Ring

Bushing

Washer | Not Shown

Hex. Flange Screw S.Grip M6 X 35

Kit Hose Assy This part replaces 513033974.

Fuel Filter

Oetiker Clamp

Crimp Clamp

O-Ring

Y Fitting

Hose Ass`y | Includes 560 to 560c This part replaces 513033922.

Oetiker Clamp

Crimp Clamp

O-Ring

Bracket

Hex. Flange Screw M5 X 28 S.Grip

Hose Ass`y | Includes 600 to 600c This part replaces 513034001.

Ring

O-Ring

Crimp Clamp

Bracket

Hex. Flange Screw M5 X 28 S.Grip

Bracket

Hex. Flange Screw M5 X 16

Hex. Flange Screw M5 X 28 S.Grip

Insulated Foam

Insulated Foam

Tank Guide

Pop Rivet 3/16"

Foam

Foam

Retainer Plate

Pop Rivet 3/16" | DS 650 X
