02- Engine - Cooling

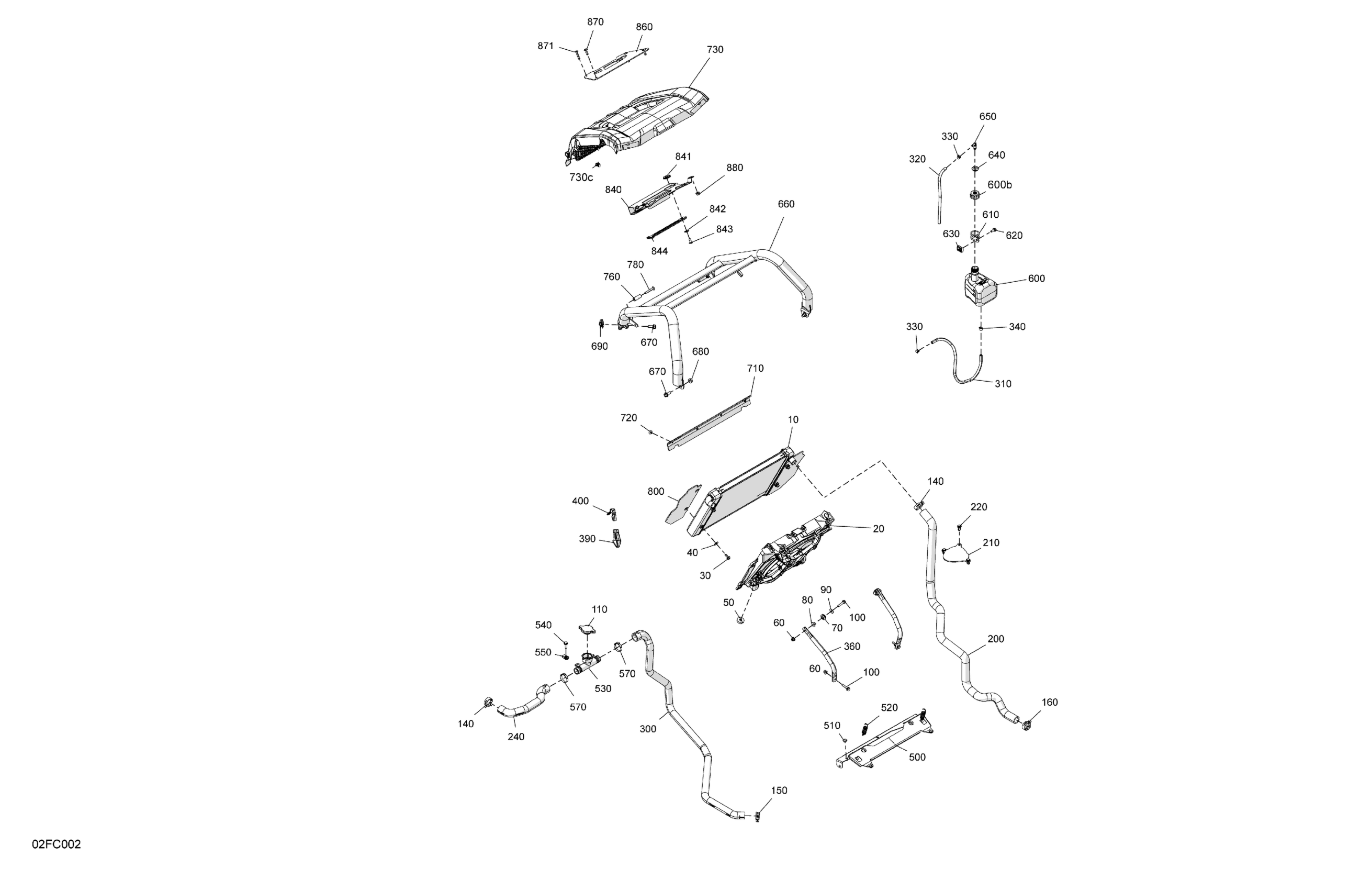

Can-Am 003 - Outlander X mr 700 - CE, 2023 02- Engine - Cooling Diagram
#
10
Radiator
709200762
Unavailable
20
Cooling Fan
709200763
Unavailable
30
Hex Flange Screw M6 X 16
250000906
Unavailable
40
Flat Washer 6 mm
234062410
Unavailable
50
Grommet
709200948
Unavailable
60
Hex. Flange Elastic Nut M6
233261466
Unavailable
70
Grommet
709000582
Unavailable
80
Bushing
709001288
Unavailable
90
Flat Washer
250200082
Unavailable
100
Hex. Flange Screw M6 X 30
207663046
Unavailable
110
Radiator Pressure Cap
709200207
Unavailable
140
Norma Spring Clamp
293650108
Unavailable
150
Norma Spring Clamp
293650109
Unavailable
160
Norma Spring Clamp
293650108
Unavailable
200
Coolant Hose
709200947
Unavailable
210
Cap
709201222
Unavailable
220
Tuflok Plastic Rivet
293150230
Unavailable
240
Coolant Hose
709200939
Unavailable
300
Hose
709200937
Unavailable
310
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
320
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
330
Spring Clamp
414554800
Unavailable
340
Spring Clamp
414420700
Unavailable
360
Tube
709201205
Unavailable
390
End Piece Latch
517304075
Unavailable
400
Panel Latch
517303981
Unavailable
500
Support
709201150
Unavailable
510
Pop Rivet 3/16"
390406500
Unavailable
520
Brake Pedal Spring
705600792
Unavailable
530
Filler Neck
709200422
Unavailable
540
Hex. Flange Screw M6 X 20
207662034
Unavailable
550
Panel Nut M6 X 1.0
250100198
Unavailable
570
Gear Clamp
509000162
Unavailable
600
Coolant Tank Ass'y | Includes 290 to 290b
703501190
Unavailable
600b
Cap
709200586
Unavailable
610
Hose Anchor
709200036
Unavailable
620
Hex. Flange Screw M6 X 16
207661646
Unavailable
630
Panel Nut M6 X 1.0
250100208
Unavailable
640
Grommet
705003264
Unavailable
650
Male Connector
414580700
Unavailable
660
Bumper Reinforcement
705211684
Unavailable
670
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
680
Hex. Flange Nut M8
233181414
Unavailable
690
Panel Nut M8 X 1.25
250100236
Unavailable
710
Gasket
709201191
Unavailable
720
Pop Rivet 3/16"
293150103
Unavailable
730
Hood Ass'y | Includes 730 to 730c
709201249
Unavailable
730c
Edge Clip
517302785
Unavailable
760
Spacer
709201214
Unavailable
780
Torx Screw M6 X 45
250000748
Unavailable
800
Gasket
709201192
Unavailable
840
Tool Kit Support
709201283
Unavailable
841
Panel Nut M6 X 1.0
250100208
Unavailable
842
Stainless Steel Flat Washer
234062670
Unavailable
843
Torx Head Screw M6 X 16
250000717
Unavailable
844
Retaining Strap
708303885
Unavailable
860
Hood
709201212
Unavailable
870
Torx Truss Screw M6 X 20
250000488
Unavailable
871
Torx Screw M6 X 35
250000541
Unavailable
880
Hex. Flange Elastic Nut M6
233261466
Unavailable
