07- Body - Fender Kit

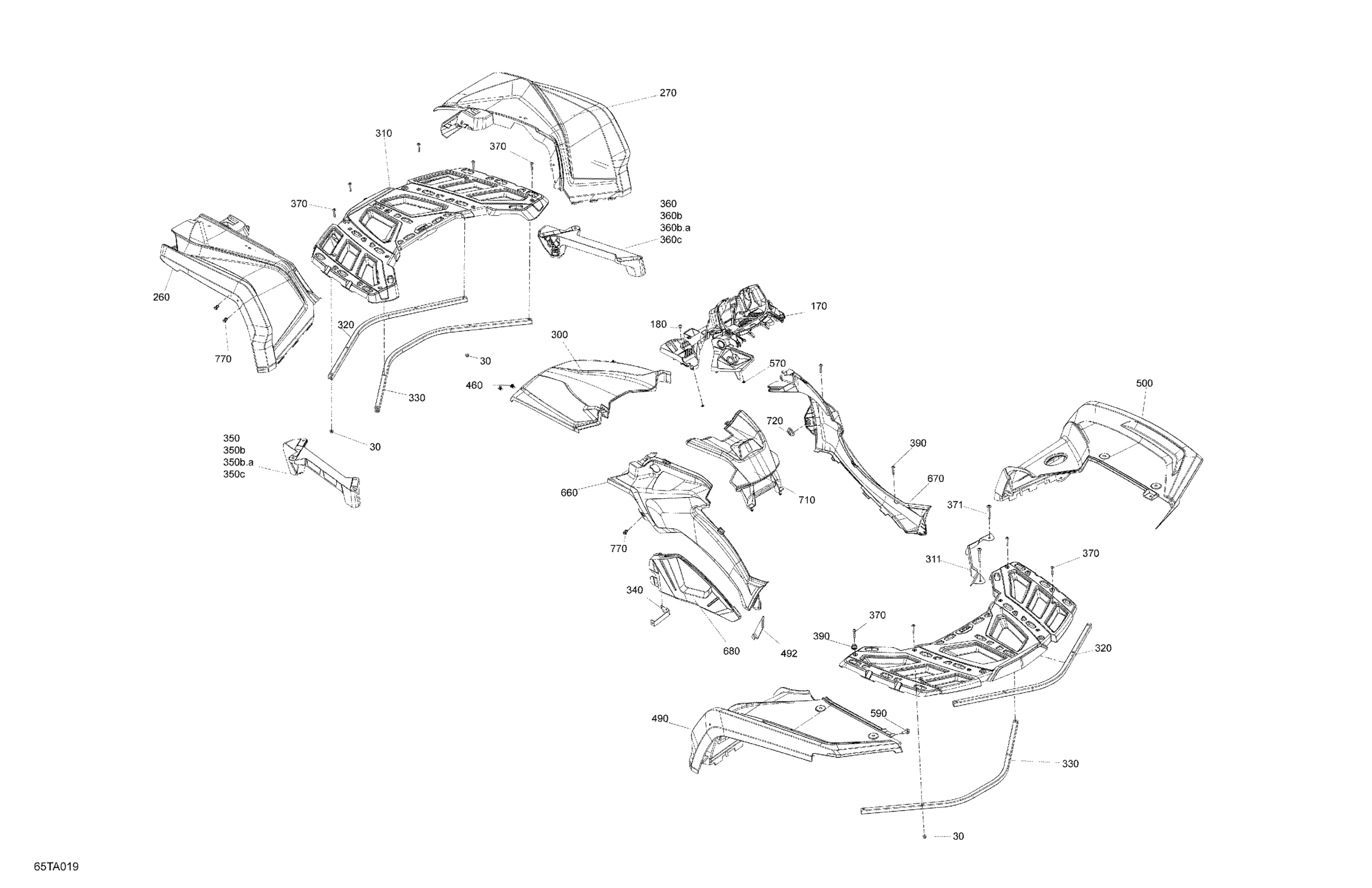

Can-Am 003 - Outlander T MAX 650 EFI - XT_XTP_XU+ - T Regulation, 2021 07- Body - Fender Kit Diagram
#
30
Flange Elastic Nut M6
233261434
Unavailable
170
Console Support Ass'y | Model-Europe/International
715006101
Unavailable
180
Rubber Bumper
293830005
Unavailable
260
Boreal Green, LH Front Fender Ass'y | Model Boreal green
715007898
Unavailable
260
Carbon Black, LH Front Fender Ass'y | Model Phoenix Orange Metallic
715007917
Unavailable
260
Mineral Satin Gray,LH Front Fender Ass'y | Model Mineral Gray Satin
715007919
Unavailable
270
Boreal Green, RH Front Fender Ass'y | Model Boreal green
715007591
Unavailable
270
Carbon Black, RH Front Fender Ass'y | Package XTP
715007596
Unavailable
270
Mineral Gray Satin, RH Front Fender
715006948
Unavailable
300
Hood Ass'y
715007689
Unavailable
300
Phoenix Orange, Hood Ass'y | Model Phoenix Orange Metallic
715007913
Unavailable
300
Mineral Gray Satin, Hood
715006990
Unavailable
310
Rack Kit | Model-International
715002240
Unavailable
311
ESD Bracket
705013222
Unavailable
320
Sectional Bent Tube
705016640
Unavailable
330
Bent Sectional Tube
705016092
Unavailable
340
Lugage Rack Moulding
705004523
Unavailable
350
LH Support Luggage Rack Ass'y | Includes 33 to 35
705011553
Unavailable
350b
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
Unavailable
350b.a
Hex. Elastic Nut M8 Brass
232581200
Unavailable
350c
Hex. Elastic Stop Nut M6
232561600
Unavailable
360
RH Support Luggage Rack Ass'y | Includes 36 to 38
705011555
Unavailable
360b
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
Unavailable
360b.a
Hex. Elastic Nut M8 Brass
232581200
Unavailable
360c
Hex. Elastic Stop Nut M6
232561600
Unavailable
370
Black, Torx Screw M6 X 35
250000646
Unavailable
371
Screw-torx Button Head M6 X 40
235564054
Unavailable
390
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
460
Edge Clip
517302785
Unavailable
490
Boreal Green, LH Rear Fender Ass'y | Model Boreal green
715007903
Unavailable
490
Carbon Black, LH Rear Fender Ass'y | Model Phoenix Orange Metallic
715007909
Unavailable
490
Mineral Gray Satin, LH Rear Fender Ass'y | Model Mineral Gray Satin
715007908
Unavailable
492
Heat Shield
707002457
Unavailable
500
Boreal Green, Rear Fender
705014394
Unavailable
500
Carbon Black, RH Rear Fender
705013877
Unavailable
500
Mineral Gray Satin, RH Rear Fender
705014483
Unavailable
570
Push Nut
732610072
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
660
Boreal Green, LH Panel
705013241
Unavailable
660
Phoenix Orange Met, LH Central Panel | Model Phoenix Orange Metallic
705015838
Unavailable
660
Mineral Gray Satin, LH Panel Central
705014484
Unavailable
670
Boreal Green, RH Panel
705013242
Unavailable
670
Phoenix Orange Met, RH Central Panel | Model Phoenix Orange Metallic
705015837
Unavailable
670
Mineral Gray Satin, RH Panel Central
705014485
Unavailable
680
Deflector Body Panel Kit
715007294
Unavailable
710
Dash Kit | Europe, Int'l
715002783
Unavailable
720
Grommet
705003264
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
