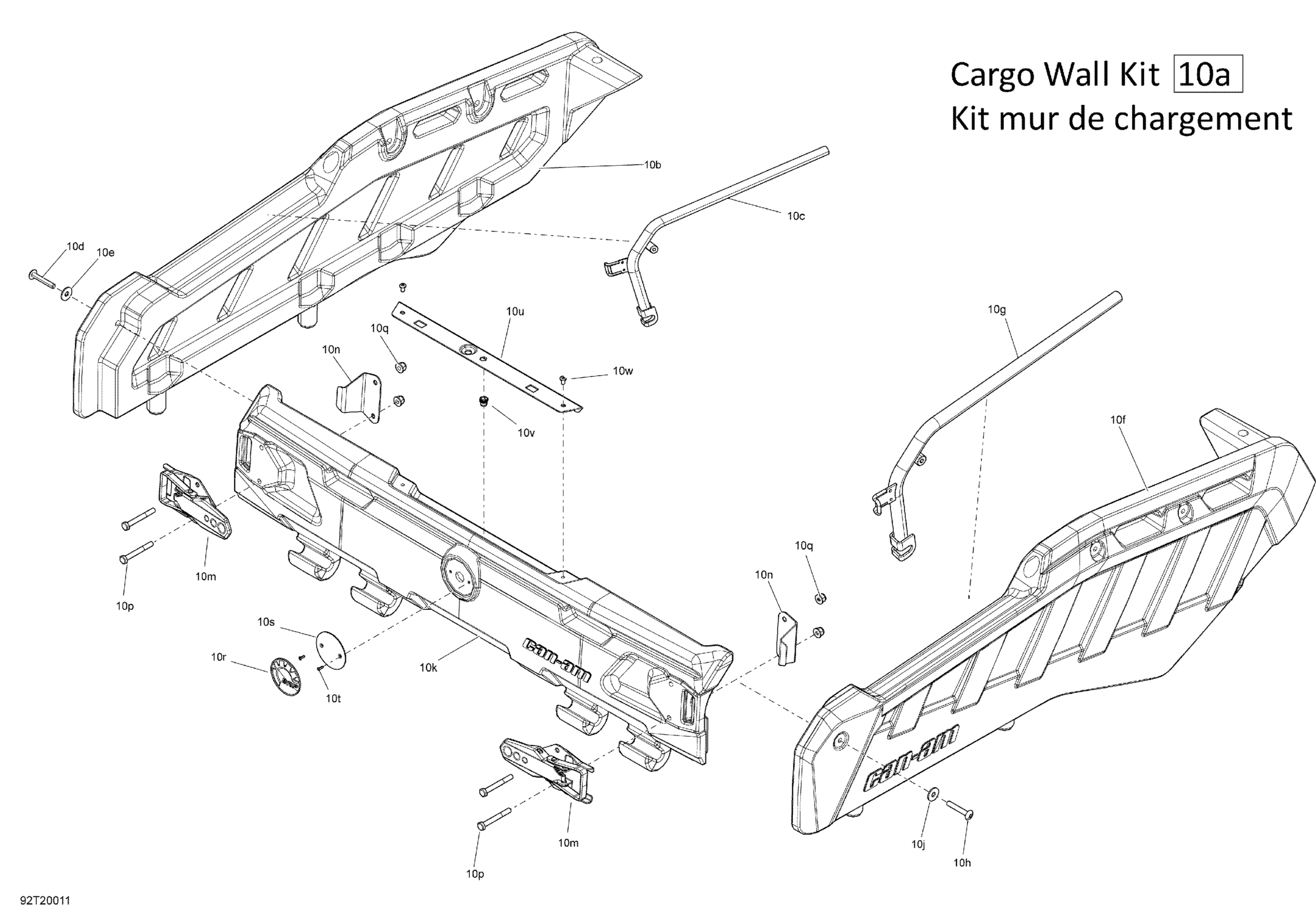

Can-Am Outlander MAX 6X6 - 650 EFI - 2020 Cargo - Kit Cargo Wall Diagram

Description

Price

10a

Cargo Wall Kit | Includes 10a to 10w

715005153

$1,192.99

10b

Black, LH Side Panel

708303727

$309.99

10c

LH Side Railing

708302800

$72.99

10d

Torx Truss Screw M8 X 50

250000761

$7.51

10e

Stainless Steel Flat Washer

234082670

$2.11

10f

Black, RH Side Panel

708303728

$309.99

10g

RH Side Railing

708302799

$72.99

10h

Torx Truss Screw M8 X 50

250000761

$7.51

10j

Stainless Steel Flat Washer

234082670

$2.11

10k

Black, Tailgate

708302080

$519.99

10m

Latch Ass'y

511001014

$38.99

10n

Latch Fixing Plate

708301005

$17.99

10p

Hex. Screw M8 x 65

207086544

$1.47

10q

Hex. Flange Elastic Nut M8

233281414

$1.47

10r

BRP Logo 68mm

516008739

$16.99

10s

Logo Base

708301177

$10.99

10t

Countersunk Head Screw K30 X 10

250000698

$1.90

10u

Lock List

708301184

$19.99

10v

Clinch Nut M6 Hexsert

605636003

$4.23

10w

Socket Screw Button Head M6 X 10 | DS 650

250000436

$2.11
