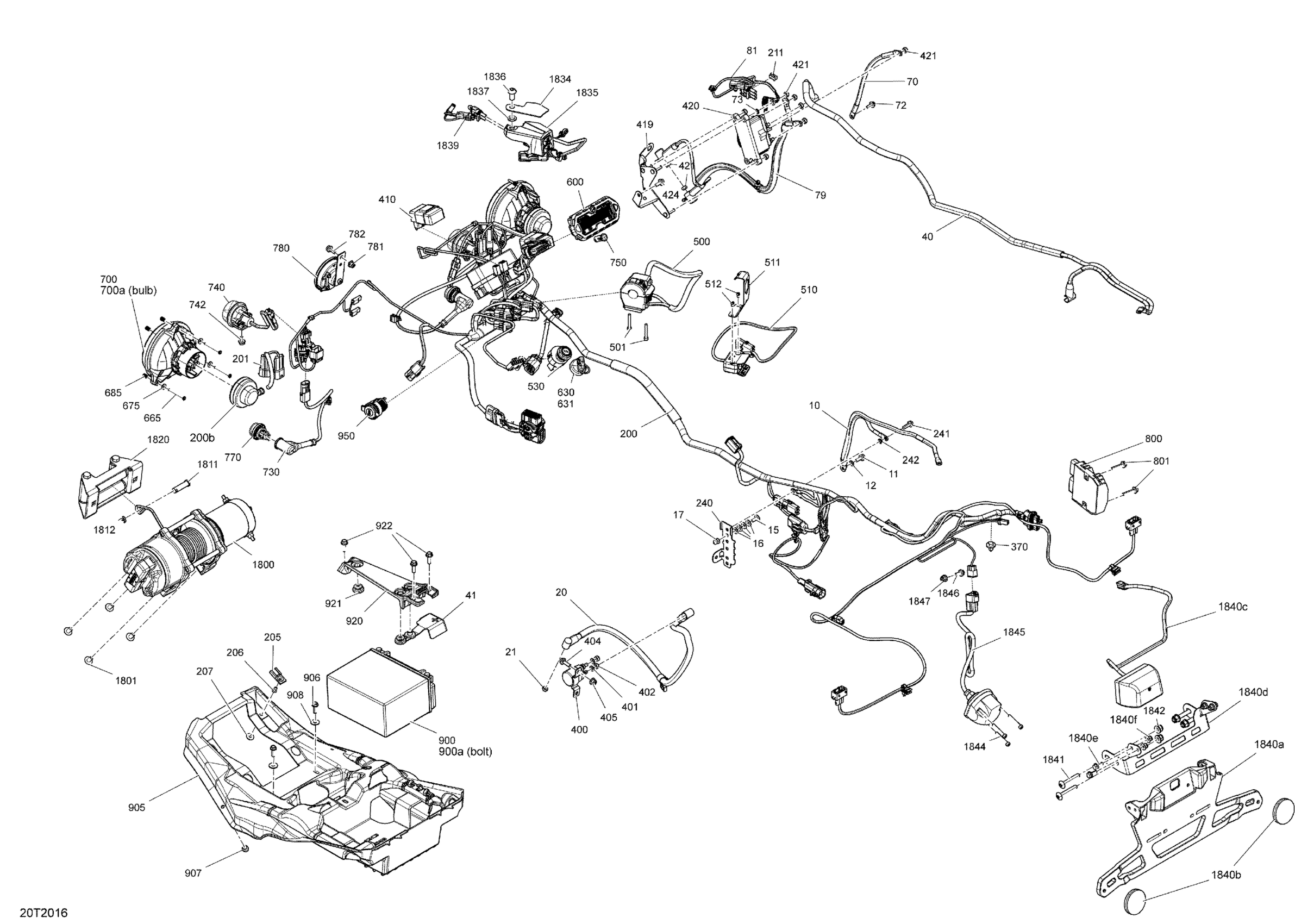

Can-Am Outlander T 570 EFI - PRO+ - T Regulation, 2020 Electrical System Diagram

Ground Cable

710004382

$19.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Lock Washer Helical M6

234161601

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Flat Washer

224061121

$0.53

Domed Nut M6

232361493

$2.11

Positive Cable

710004377

$27.99

Elastic Stop Nut M6

232561414

$0.55

Connector Ass'y

710004375

$32.99

Battery Cable Cap

710006729

$7.20

Negative Cable

710005163

$35.99

Hex. Flange Screw M6 X 16

210261640

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Winch Cable | Model With Winch

710005164

$51.99

Winch Cable

710005246

$43.99

No ABS Cable

710006170

$1,009.99

Headlamp Protector Cap

710004020

$11.49

Light Cable

710005780

$23.99

Clip

270000141

$11.49

Pop Rivet 3/16"

390402300

$0.75

Washer | DS 650 X

391301600

$0.48

Clip

710000992

$4.29

Connector Bracket

710004118

$5.40

Hex. Flange Screw M6 X 20

210262040

$2.11

External Serrated Lock Washer 6 mm

234461608

$1.15

Mount Dart

293730040

$1.04

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flasher Unit

710003239

$78.49

Module Support

710004935

$20.99

Winch Solenoid | XT Models

710001000

$121.99

Elastic Stop Nut M6

232561414

$0.55

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

LH Multi Fonction Control

710006211

$174.99

Socket Head Screw M5 X 35

205053588

$1.90

Winch Switch

710005241

$164.49

Winch Switch Support | XT, XTP, XMR, LTD,

710002631

$10.27

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

Ignition Switch

710008400

$78.49

Speedometer

710006216

$339.99

Black, Electronic Key

710000817

$63.49

Grey, Electronic Key

710002183

$63.49

Hex. Screw K40 X 45

250000718

$2.11

Flat Washer

517225900

$0.18

Spring

517168600

$7.39

Low Beam

710003900

$114.99

Bulb, 12V 35/35W

710000871

$34.99

Position Light Harness

710005676

$15.49

Flasher | Europe

710002964

$35.99

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Pilot Lamp | Model-Europe

710003909

$21.99

Day Light | Europe

710001726

$35.99

Horn

710004791

$38.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 16

207661644

$0.74

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710008370

$50.99

Hexagonal Head Screw

210262050

$2.11

Rubber Bumper

293830005

$8.09

Stainless Steel Flat Washer

234062670

$2.11

Retaining Plate

710009129

$8.69

Stopper Rubber

705014429

$5.95

Hex. Flange Screw M6 X 20

207662054

$1.01

DC Outlet

710001248

$37.99

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

Torx Truss Screw M8 X 16

250000746

$3.38

Clevis Pin

250400021

$13.18

Cotter Pin

250400022

$9.69

Fairlead_Roller Kit

715007699

$83.99

Top Plate

715004008

$21.99

Multifonction Housing Ass'y

710004990

$154.99

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

Washer

503192496

$0.77

Cable

710004567

$12.76

Plate Support | Europe

708300434

$27.99

Red Reflector

705011221

$14.49

License Plate Light | Europe

710005563

$126.99

Bracket License Plate

710005813

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Torx Truss Screw M8 X 50

250000761

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

Socket Head Screw M5 X 35

205053588

$1.90

Trailer Harness

710005846

$229.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
