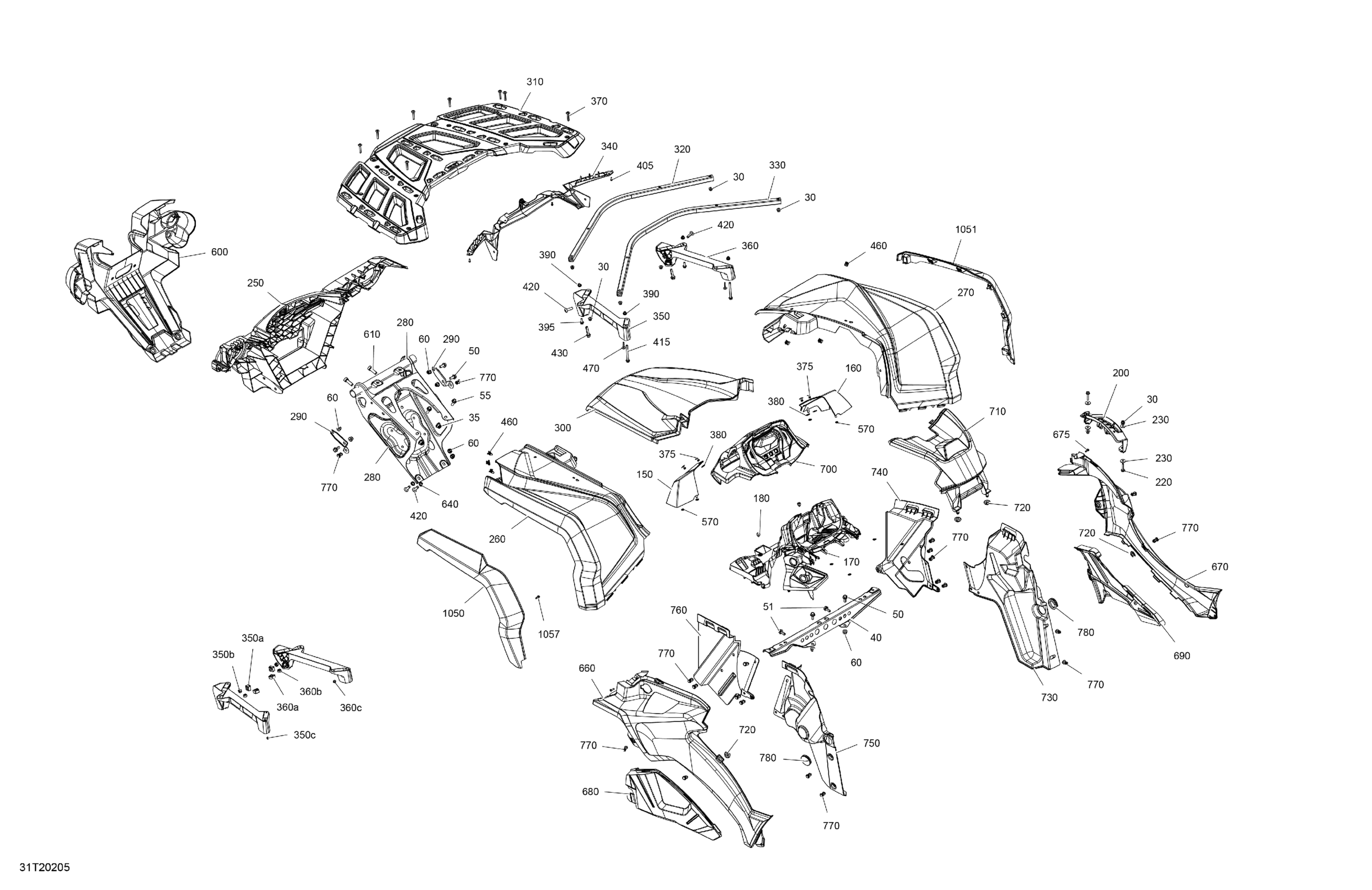

Can-Am Outlander T 570 EFI - PRO+ - T Regulation, 2020 Body - Front Section - PRO+ Diagram

#

Description
Price

30

Flange Elastic Nut M6

233261434

$4.44

35

Hex. Flange Elastic Nut M10

233201434

$2.09

40

Cargo Rack Center Support

705006812

$61.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281434

$2.11

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

170

Console Support Ass'y | Model-Europe/International

715006101

$63.99

180

Rubber Bumper

293830005

$8.09

200

Indicator | Package PRO International

715004085

$26.99

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

250

Fascia

705012822

$119.99

260

Squadron Green, LH Front Fender Kit

715007020

$204.99

270

Squadron Green, RH Front Fender Kit | Squadron Green

715005680

$204.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

300

Squadron Green, Hood Kit | Squadron Green

715005795

$189.99

310

Rack Kit | Europe, Int'l

715002784

$194.99

320

Sectional Bent Tube

705016640

$38.99

330

Sectional Bent Tube

705016641

$42.99

340

Lugage Rack Moulding

705004523

$24.49

350

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

350a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

350b

Hex. Elastic Nut M8 Brass

232581200

$2.22

350c

Hex. Elastic Stop Nut M6

232561600

$1.15

360

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

360a

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

360b

Hex. Elastic Nut M8 Brass

232581200

$2.22

360c

Hex. Elastic Stop Nut M6

232561600

$1.15

370

Black, Torx Screw M6 X 35

250000646

$0.98

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

390

Insert Half Hex Body M6 x 1.0

250100199

$3.19

395

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

405

Screw K40 X 10

241140060

$1.48

415

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Flange Screw M8 X 35

207683534

$2.11

460

Edge Clip

517302785

$0.88

470

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

570

Push Nut

732610072

$2.19

600

Front Guard Plate | Europe

705006300

$43.99

610

Socket Screw M10 x 30 | XT

205003044

$3.17

640

Ring

705004497

$5.19

660

Squadron Green, LH Lateral Panel | Green Model

705009760

$74.99

670

Squadron Green, RH Lateral Panel | Green Model

705009764

$74.99

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector_Body Panel Kit

715007008

$28.99

690

Engine Cover

705003444

$22.99

700

Gauge Support | Includes 700 to 700a

705012572

$44.99

710

Dash Kit | Europe, Int'l

715002783

$64.99

720

Grommet

705003264

$4.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Wheel Arch Protector

705017002

$16.85

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Wheel Arch Protector

705017001

$16.85

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

1050

LH Front Mudguard

705003914

$14.69

1051

RH Front Mudguard

705003915

$14.69

1057

Self Tapping Screw 8 X 5/8

250001072

$1.37
