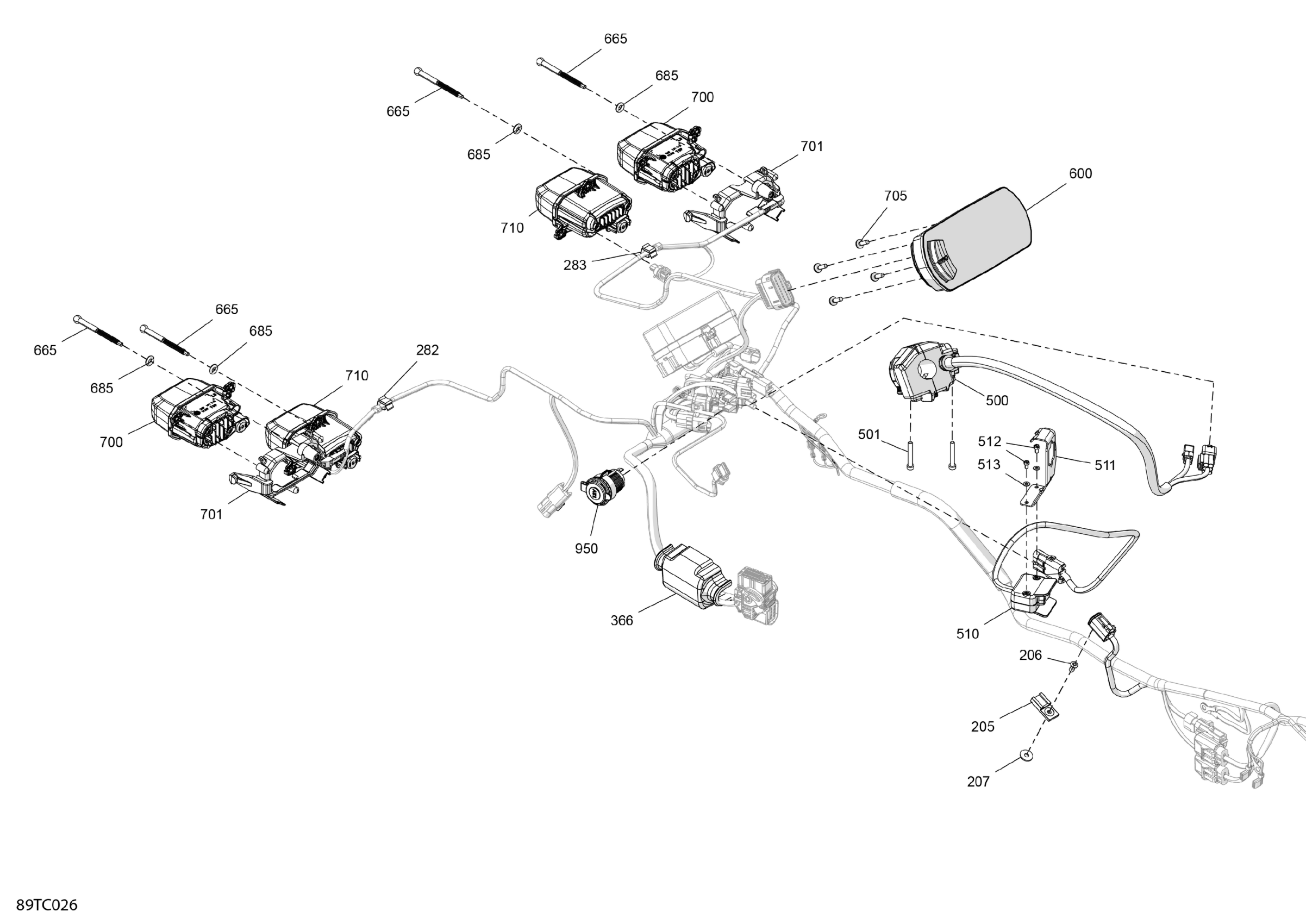

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2023 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

282

Clip

414227300

$1.67

283

Clip

414227300

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Multi-Function Handle | Except Model Europe, Except Model STD

710005070

$69.99

501

Socket Head Screw M5 X 35

205053588

$1.90

510

Winch Switch

710007327

$13.18

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

513

Flat Washer 4 mm

234040600

$0.55

600

Multifunction Gauge Compact Mono

710008108

$409.99

665

Ajustment Screw

710005837

$6.35

685

O-Ring

293300192

$4.92

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

705

Torx Screw K50 X 16

250000720

$1.69

710

HIgh Beam Light

710006910

$129.99

950

DC Outlet

710001248

$37.99
