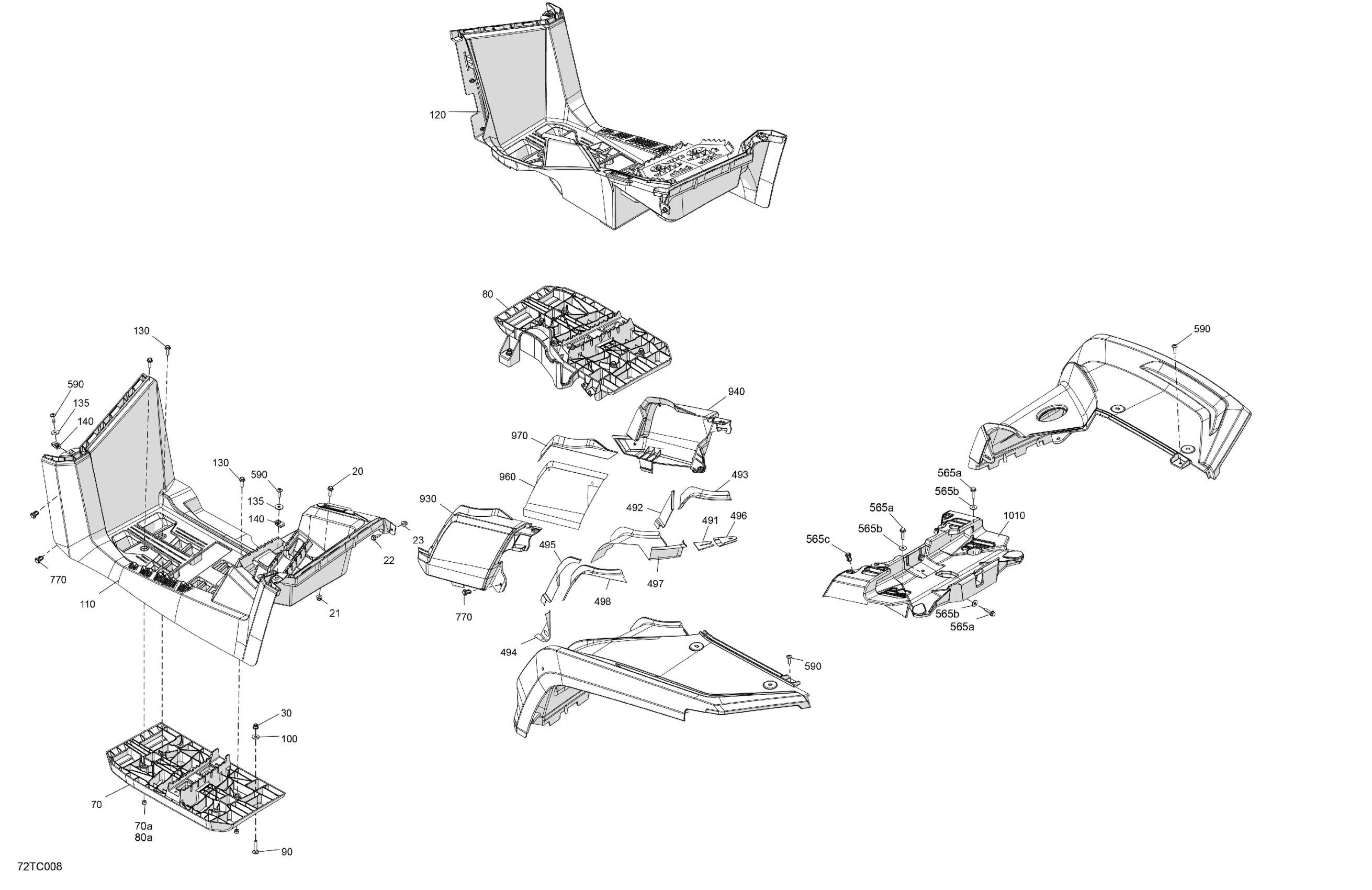

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2023 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$1.01

21

Flange Elastic Nut M6

233261434

$4.44

22

Hex. Flange Screw M6 X 20

207662054

$1.01

23

Flange Elastic Nut M6

233261434

$4.44

30

Flange Elastic Nut M6

233261434

$4.44

70

LH Structural Footboard

705011540

$119.99

70a

Square Nut M6

232862412

$1.49

80

RH Structural Footboard

705011542

$109.99

80a

Square Nut M6

232862412

$1.49

90

Carriage Bolt M6 X 35

207763554

$2.11

100

Flat Washer 6 mm

234062410

$0.77

110

LH Footrest Max

705003525

$189.99

120

RH Footrest Max

705003521

$134.99

130

Hex. Flange Screw M6 X 20

207662054

$1.01

135

Flat Washer

224061201

$1.37

140

Panel Nut M6 X 1.0

250100198

$2.11

491

Heat Shield

707002456

$3.89

492

Heat Shield

707002457

$3.89

493

Heat Shield

707002458

$19.99

494

Heat Shield

707002459

$3.89

495

Heat Shield

707002460

$4.29

496

Heat Shield

707002461

$3.89

497

Heat Shield

707002462

$3.89

498

Heat Shield

707002583

$4.29

565a

Hex Flange Screw M6 X 25

250000841

$7.51

565b

Stainless Steel Flat Washer

234062670

$2.11

565c

Tuflok Plastic Rivet

293150230

$1.47

590

Torx Screw M6 X 20

250000722

$1.68

770

Tuflok Plastic Rivet

293150230

$1.47

930

LH Extension Panel

715001897

$27.99

940

RH Extension Panel

705004348

$26.99

960

Heat Shield

705006870

$5.29

970

Heat Shield

705006871

$5.29

1010

Seat Holder

705007948

$58.99
