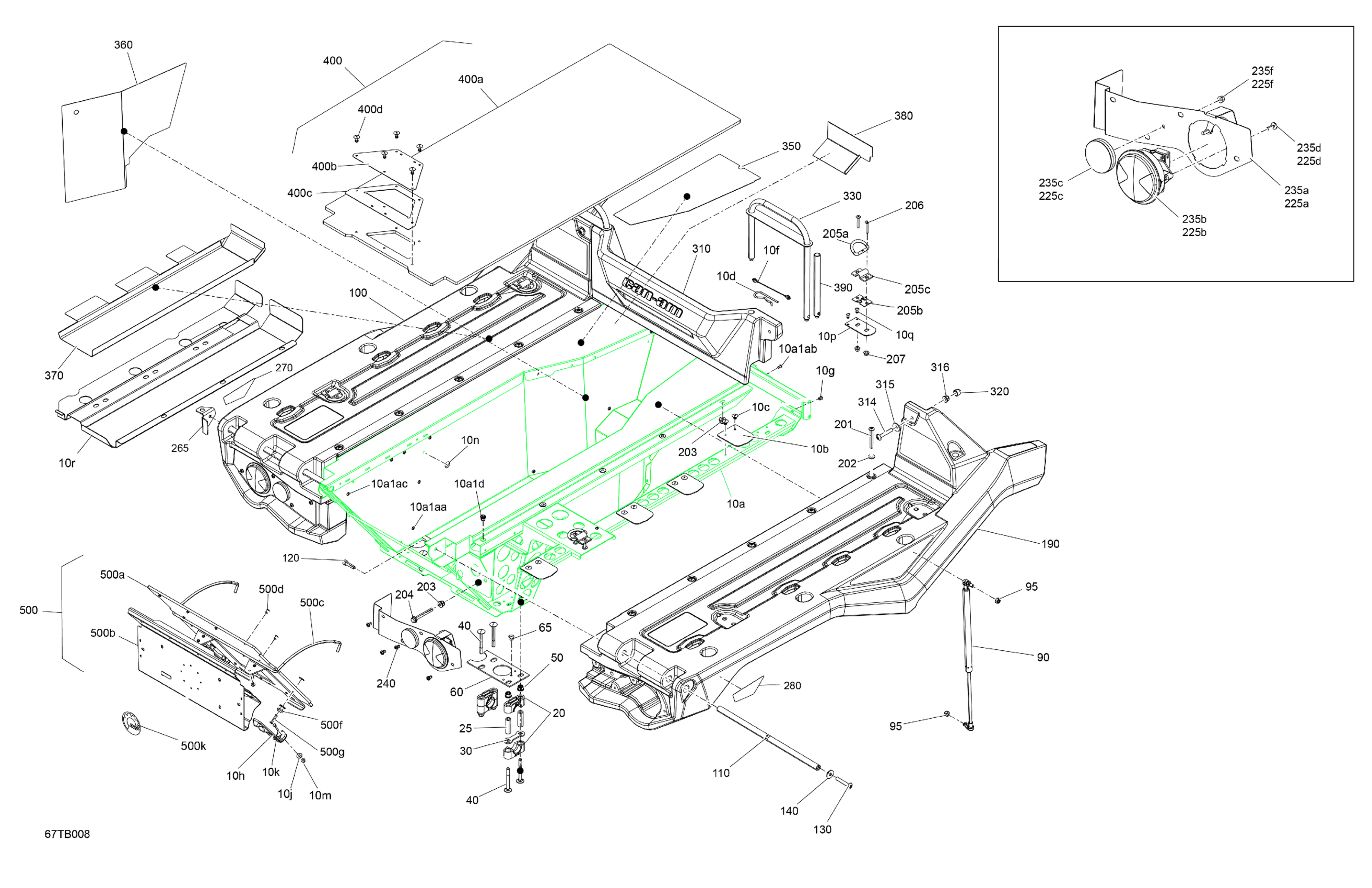

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2022 Body - Cargo Platform Diagram

#

Description
Price

10a

Platform | Includes 10a to 10a1ac

708303452

Unavailable

10a1d

Clinch Nut Hexsert M8

605636002

$7.09

10a1aa

Avex Rivet

390909200

$0.28

10a1ab

Avex Rivet

390909100

$0.28

10a1ac

Avex Rivet

390909200

$0.28

10b

Linq Hole Filler

708301095

$8.16

10c

Pop Rivet 3/16"

293150103

$0.52

10d

Cotter Spring

505073670

$2.00

10f

Retainer Cable

293750069

$13.36

10g

Stavex Rivet

293150144

$0.75

10h

Hood Latch

5342952

$21.61

10j

Flat Washer

234052450

$2.00

10k

Hex.Flange Screw M5 X 20

207652044

$1.79

10m

Flange Elastic Nut M5

233251434

$1.91

10n

Black, Dart

414644300

$0.90

10p

Lashing Rings Support

705203824

$6.76

10q

Avex Rivet

390909100

$0.28

10r

Upper Heat Shield Wide

707601725

$42.99

20

Housing Half

506150400

$7.09

25

Housing Bushing

506150500

$7.27

30

Stopper Plate

506150600

$4.03

40

Carriage Bolt M8 X 70

207787044

$1.27

50

Hex. Flange Elastic Nut M8

233281414

$1.31

60

Cargo Box Hinges Reinforcement Plate

705203836

$14.90

65

Pop Rivet 3/16"

293150103

$0.52

90

Cargo Box Gas Shock

708301058

$105.94

95

Hex. Elastic Stop Nut M8

232581414

$0.54

100

Black, LH Side Platform | North America

715005138

$605.19

110

Hinge Axis

708300935

$94.00

120

Socket Head Screw M8 X 30

205083044

$1.06

130

Torx Truss Screw M8 X 50

250000761

$7.09

140

Stainless Steel Flat Washer

234082670

$2.00

190

Deep Black, RH Decal Kit

715007995

$498.48

201

Torx Truss M/S M8 X 40

205484056

$7.09

202

Washer

503192494

$3.01

203

Hex. Flange Elastic Nut M8

233281414

$1.31

204

Hex. Flange Screw, M8 X 65

207686544

$11.18

205a

D-Ring

708302990

$4.15

205b

Tie-Down Ring Spring

708302991

$2.39

205c

Tie-Down Ring Bracket

708302992

$2.39

206

Socket Screw M6 X 35

250001078

Unavailable

207

Hex. Flange Nut M6

233061414

$1.54

225a

LH Tail Light Plate | Model-International

708301274

$38.78

225b

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

225b1

Bulb

520000758

$8.60

225c

Red, Reflector

705016982

$11.96

225d

Torx Screw K50 X 16

250000720

$1.60

225f

Flange Elastic Nut M5

233251434

$1.91

235a

RH Tail Light Plate | Model-International

708301275

$35.04

235b

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

235b1

Bulb

520000758

$8.60

235c

Torx Screw K50 X 16

250000720

$1.60

235d

Red, Reflector

705016982

$11.96

235f

Flange Elastic Nut M5

233251434

$1.91

240

Torx Truss Screw M6 X 12

250000767

$1.91

265

Flag Pole Bracket

708301639

$11.51

270

Red. LH Reflector Decal

708301617

$14.90

280

Red, RH Reflector Decal

708301618

$14.90

310

Black, Front Panel Max

715006177

$285.79

314

Torx Truss Screw M8 X 50

250000761

$7.09

315

Stainless Steel Flat Washer

234082670

$2.00

316

Hex. Flange Elastic Nut M8

233281414

$1.31

320

Cover | Model-T3

28056

$5.36

330

Locking Handle Weld

708300939

$72.36

350

Bed Heat Shield On Top

708301336

$11.48

360

Bed Heat Shield On Side

708301337

$13.55

370

Side Heat Shield

708301338

$13.55

380

Heat Shield

708302168

$13.55

390

Transport Support

708302018

Unavailable

400

Middle Deck Ass'y | North America

715002810

$35.79

400a

Middle Deck

708300959

$305.19

400b

Filler Plate

708301262

Unavailable

400c

Handle Plate

708301263

$16.39

400d

Pop Rivet 3/16”

293150108

$1.19

500

Lower Tailgate Ass'y | Includes 500 to 500k

708303328

Unavailable

500a

Deep Black, Lower Tailgate Panel Ass'y

715008584

$101.46

500b

Register Plate Support

708303416

$103.70

500c

Limiter Rail

708301213

$51.46

500d

Avex Rivet

390909100

$0.28

500f

Counter Roller

605449087

$3.88

500g

Rivet

293150212

$2.01

500k

BRP Logo 68 mm

219902672

$11.40
