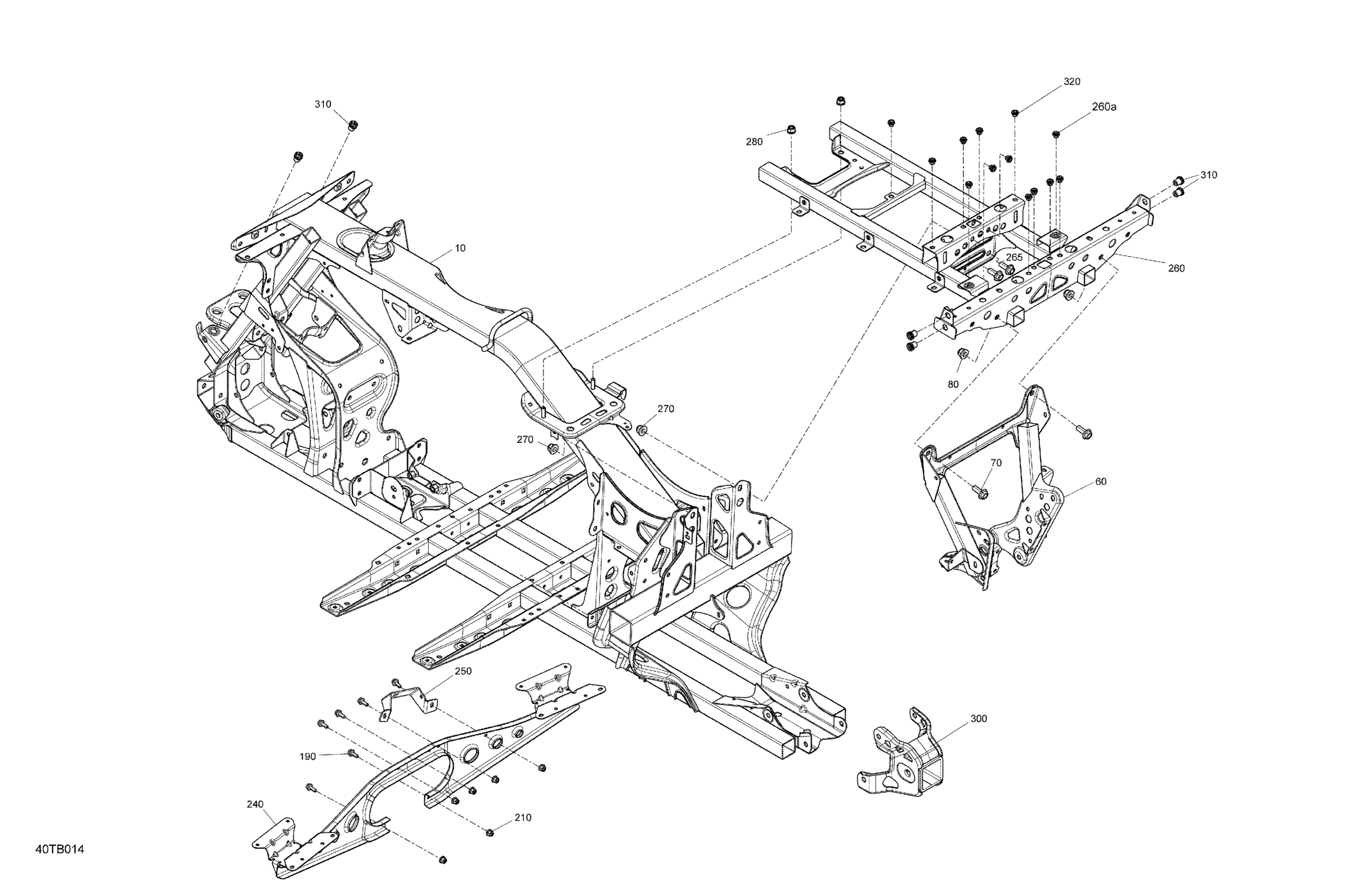

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2022 Frame - System Diagram

#

Description
Price

10

Chassis

705209379

$1,049.99

60

Rear Pillar

705210818

$69.99

70

Hex. Flange Screw M10 X 25

207602546

$2.00

80

Hex. Flange Elastic Nut M10

233201436

$2.00

190

Hex. Flange Screw M6 X 16

207661644

$0.70

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

240

Footrest Support

705210817

$76.99

250

Master Cylinder Bracket

705203874

$11.49

260

Chassis Extension

705210822

$118.74

260a

Insert Half Hex Body M6 x 1.0

250100199

$2.91

265

Hex. Flange Screw M10 X 25

207602546

$2.00

270

Hex. Flange Elastic Nut M10

233201436

$2.00

280

Hex. Flange Elastic Nut M8

233281414

$1.31

300

Trailer Hitch

715005186

$128.49

310

Insert Half Hex Body M8 x 1.25

293450307

$1.97

320

Insert Half Hex Body M6 x 1.0

250100199

$2.91
