05- Suspension - Rear Components

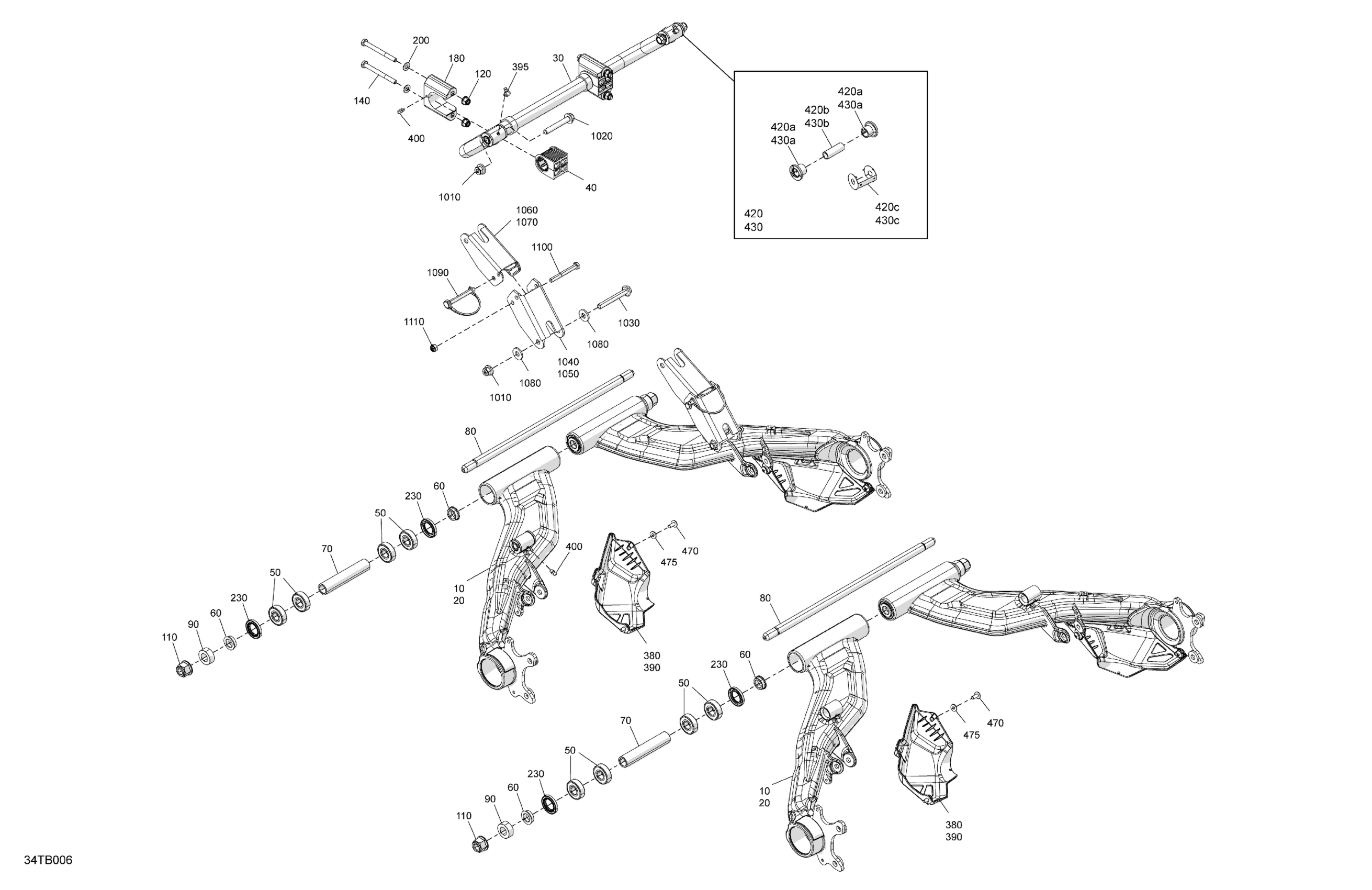

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - XT - North America, 2022 05- Suspension - Rear Components Diagram
#
10
LH Swing Arm
706003041
Unavailable
20
RH Swing Arm
706003042
Unavailable
30
Sway Bar
706003050
Unavailable
40
Stabilizer Bar Bushing
706004641
Unavailable
50
Ball Bearing
293350145
Unavailable
60
Spacer
706001282
Unavailable
70
Spacer
706002259
Unavailable
80
Axial Pivot M16
706001664
Unavailable
90
Flat Washer M17
250200112
Unavailable
110
Hex. Flange Elastic Nut M16
233211466
Unavailable
120
Hex. Flange Elastic Nut M8
233281434
Unavailable
140
Hex. Screw M8 X 85
250001035
Unavailable
180
Bushing Holder
706001099
Unavailable
200
Flat Washer 8 mm
234081410
Unavailable
230
Seal
293200144
Unavailable
380
LH Protector | All Except Packages XXC & Hunting Edition
706003052
Unavailable
390
RH Rear CV Joint Guard
706005102
Unavailable
395
Grease Fitting 90°
293550056
Unavailable
400
Grease Fitting
250000315
Unavailable
420
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
420a
Not Available As Spare Parts
XXX
Unavailable
420b
Not Available As Spare Parts
XXX
Unavailable
420c
Not Available As Spare Parts
XXX
Unavailable
430
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
430a
Not Available As Spare Parts
XXX
Unavailable
430b
Not Available As Spare Parts
XXX
Unavailable
430c
Not Available As Spare Parts
XXX
Unavailable
470
Tork Screw M6 X 16
250000534
Unavailable
475
Flat Washer
250200039
Unavailable
1010
Hex. Flange Elastic Nut M10
233201436
Unavailable
1020
Hex. Flange Screw M10 X 65
207606536
Unavailable
1030
Hex. Screw M10 X 70
250000520
Unavailable
1040
RH Linkage Outer Part
706001765
Unavailable
1050
LH Linkage Outer Part
706001600
Unavailable
1060
RH Linkage Inner Part
706001766
Unavailable
1070
Linkage Inner Part
706001601
Unavailable
1080
Washer
505073634
Unavailable
1090
Pin Onto The Shaft
706001602
Unavailable
1100
Hex. Screw M8 x 65
207086544
Unavailable
1110
Hex. Elastic Stop Nut M8
232581414
Unavailable
