Description

Price

10

Shaft Ass'y Kit

703500989

Unavailable

10a

Rubber Boot

715900118

Unavailable

10b

Universal Joint Ass'y | T3

703500846

Unavailable

10b1

Grease Fitting | T3

715900295

Unavailable

10c

Yoke

715900499

Unavailable

10d

Joint | T3

715900436

Unavailable

10e

Protector

705501123

Unavailable

11

Shaft Ass'y Kit | Built Feb 2019 and Up

703501084

Unavailable

11a

Rubber Boot

715900118

Unavailable

11b

Universal Joint

715900326

Unavailable

11b1

Grease Fitting | T3

715900295

Unavailable

11c

Yoke

715900499

Unavailable

11d

Yoke

715900438

Unavailable

11e

Protector

705501123

Unavailable

50

Wheel Hub

705503257

Unavailable

55

Wheel Stud M10 X 1.25 | 2X4

250300055

Unavailable

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

Unavailable

90

Flat Washer M10 | 4X4

250200014

Unavailable

130

Hex Flange Screw M12 X 16

250001039

Unavailable

180

Conical Spring Washer M12

250200005

Unavailable

190

Hex. Flange Castellated Nut M18

232291413

Unavailable

195

Cotter Pin

250400071

Unavailable

230

RH CV Joint | All Except Package XMR

705502711

Unavailable

230a

CV Joint

705501776

Unavailable

230b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230c

Circlip

705501781

Unavailable

230d

Boot Kit

705501864

Unavailable

230d1

Oetiker Clamp, 82.1 mm

715900241

Unavailable

230d2

Oetiker Clamp, 27.3 mm

715900242

Unavailable

240

LH CV Joint | All Except Package XMR

705502710

Unavailable

240a

CV Joint

705501776

Unavailable

240b

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240c

Circlip

705501781

Unavailable

240d

Boot Kit

705501864

Unavailable

240d1

Oetiker Clamp, 82.1 mm

715900241

Unavailable

240d2

Oetiker Clamp, 27.3 mm

715900242

Unavailable

250

Hex. Flange Screw M10 X 135

250001041

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

Unavailable

270

Ball Bearing

293350150

Unavailable

310

Circlip

293370019

Unavailable

320

Conical Spring Washer M18

250200171

Unavailable

330a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable

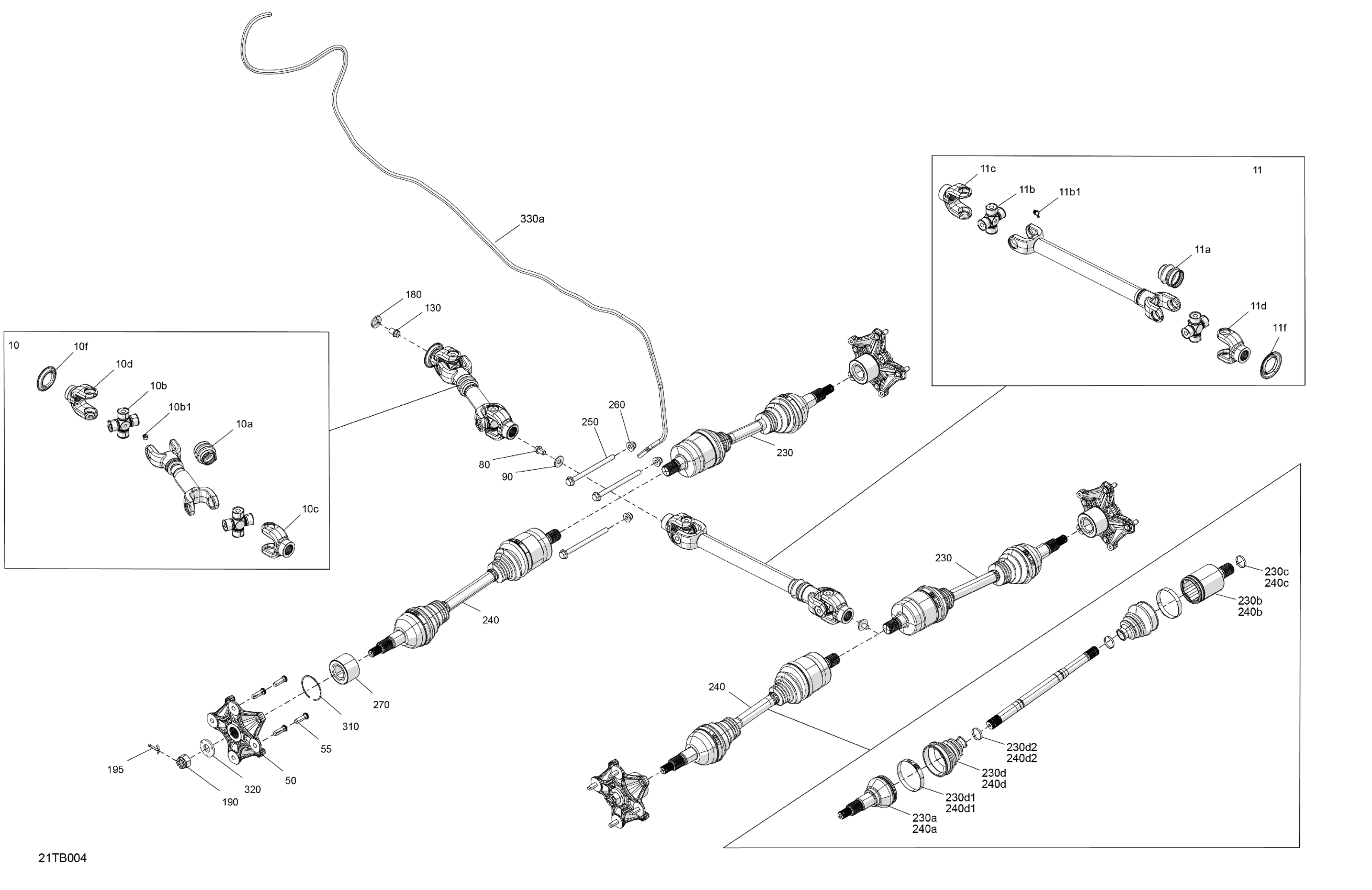

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - XT - North America, 2022 04- Drive - Rear - Common Parts Diagram

Shaft Ass'y Kit

Rubber Boot

Universal Joint Ass'y | T3

Grease Fitting | T3

Yoke

Joint | T3

Protector

Shaft Ass'y Kit | Built Feb 2019 and Up

Rubber Boot

Universal Joint

Grease Fitting | T3

Yoke

Yoke

Protector

Wheel Hub

Wheel Stud M10 X 1.25 | 2X4

Hex. Flange Screw M10 X 16 S.GRIP

Flat Washer M10 | 4X4

Hex Flange Screw M12 X 16

Conical Spring Washer M12

Hex. Flange Castellated Nut M18

Cotter Pin

RH CV Joint | All Except Package XMR

CV Joint

PLUNGING JOINT - Call your local BRP dealership

Circlip

Boot Kit

Oetiker Clamp, 82.1 mm

Oetiker Clamp, 27.3 mm

LH CV Joint | All Except Package XMR

CV Joint

PLUNGING JOINT - Call your local BRP dealership

Circlip

Boot Kit

Oetiker Clamp, 82.1 mm

Oetiker Clamp, 27.3 mm

Hex. Flange Screw M10 X 135

Hex. Flange Elastic Nut M10

Ball Bearing

Circlip

Conical Spring Washer M18

Polyurethane Hose 4000MM Long | Includes 250 to 250a
