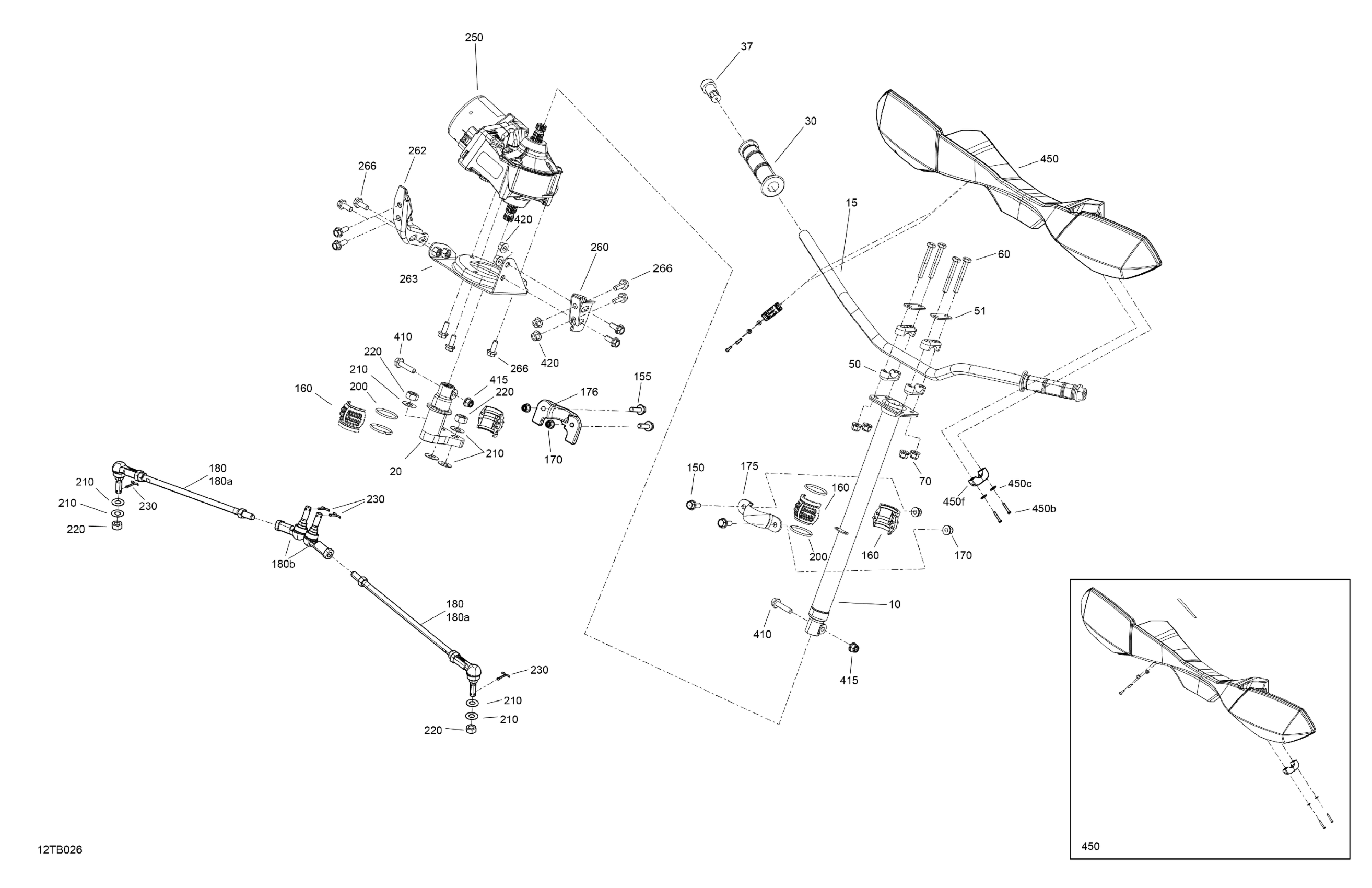

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2022 Mechanic - Steering Diagram

#

Description
Price

10

Main Tube Kit | Model With DPS

703501108

$74.99

15

Deep Black, Handlebar

709402872

$56.99

20

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Elastic Flange Nut M8

233281416

$1.48

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

180a

LH Ball Joint

709402303

$36.99

180b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Hex Nut M12

250100239

$2.00

230

Cotter Pin

211400013

$0.37

250

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

260

LH Power Steering Bracket | Model With DPS

709402184

$18.49

262

RH Bracket | Model With DPS

709402185

$28.99

263

Power Steering Support | Model With DPS

709401743

$19.99

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

410

Hex. Flange Screw M8 X 45 Scotch Grip

250001133

$3.72

415

Hex. Elastic Flange Nut M8

233281416

$1.48

420

Hex. Flange Nut

233081436

$2.00

450

ATV Handlebar Air Deflector Kit | Includes 450 to 450f

709402845

$98.49

450a2

DPS Decal

704902966

$14.49

450b

Hex. Flange Screw K40 X 25

241142560

$2.64

450c

Flat Washer | XT

211200035

$0.55

450f

Mounting Clamp

517308718

$12.49
