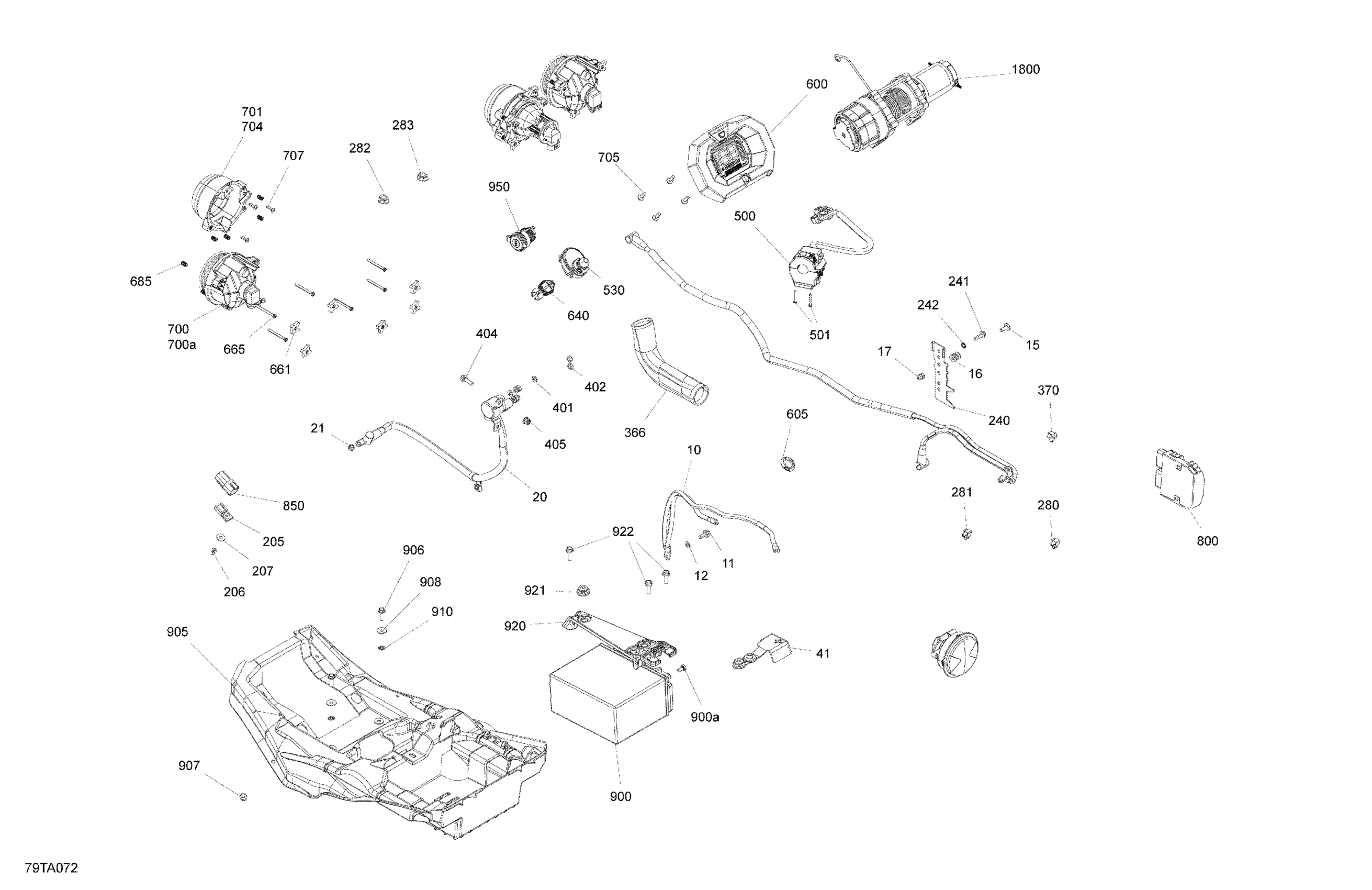

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - XT - North America, 2021 08- Electric - System Diagram
#
10
Ground Cable
710004382
Unavailable
11
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
12
Lock Washer Helical M6
234161601
Unavailable
15
Torx Head Screw M6 X 16
250000717
Unavailable
16
Flat Washer
224061121
Unavailable
17
Domed Nut M6
232361493
Unavailable
20
Positive Cable
710004377
Unavailable
21
Elastic Stop Nut M6
232561434
Unavailable
41
Battery Cable Cap
710006729
Unavailable
205
Clip
270000141
Unavailable
206
Pop Rivet 3/16"
390402300
Unavailable
207
Washer | DS 650 X
391301600
Unavailable
240
Connector Bracket
710004118
Unavailable
241
Hex. Flange Screw M6 X 20
210262040
Unavailable
242
External Serrated Lock Washer 6 mm
234461608
Unavailable
280
Clip
414227300
Unavailable
281
Clip
414227300
Unavailable
282
Clip
414227300
Unavailable
283
Clip
414227300
Unavailable
366
Soft Protection Sleeve
710007255
Unavailable
370
Mount Dart
293730040
Unavailable
401
Lock Washer Helical M6
234161601
Unavailable
402
Elastic Stop Nut M6
232561434
Unavailable
404
Hex. Flange Screw M6 X 20
207662054
Unavailable
405
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
500
Multi-Function Handle | Except Model Europe, Except Model STD
710005070
Unavailable
501
Socket Head Screw M5 X 35
205053588
Unavailable
530
Terminal Dess One-Wire | Except Model Europe
515178840
Unavailable
600
Multifunction Compact Gauge
710007407
Unavailable
605
Safety Nut (DESS Switch)
278002963
Unavailable
640
Grey Key RFID | Except Model Europe, Except T3
710004964
Unavailable
661
Handle
572106600
Unavailable
665
Hex. Screw K40 X 45
250000718
Unavailable
685
Spring
517168600
Unavailable
700
Low Beam | Includes 54 to 55
710006177
Unavailable
700a
Bulb 12V 55W
715900141
Unavailable
701
RH High Front Housing
710002291
Unavailable
704
LH High Front Housing
710002292
Unavailable
705
Torx Screw K50 X 16
250000720
Unavailable
707
Phillips Screw K40 X 16
250000723
Unavailable
800
Voltage Regulator
710005842
Unavailable
802
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
803
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
850
Housing
710003006
Unavailable
900
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
900a
Battery Bolt Kit
250000282
Unavailable
905
Battery Support
710006561
Unavailable
906
Hexagonal Head Screw
210262050
Unavailable
907
Rubber Bumper
293830005
Unavailable
908
Stainless Steel Flat Washer
234062670
Unavailable
910
Push Nut
732610072
Unavailable
920
Fixation Plate
710002404
Unavailable
921
Stopper Rubber
705014429
Unavailable
922
Hex. Flange Screw M6 X 20
207662054
Unavailable
950
DC Outlet
710001248
Unavailable
1800
Electric Winch
710007072
Unavailable
