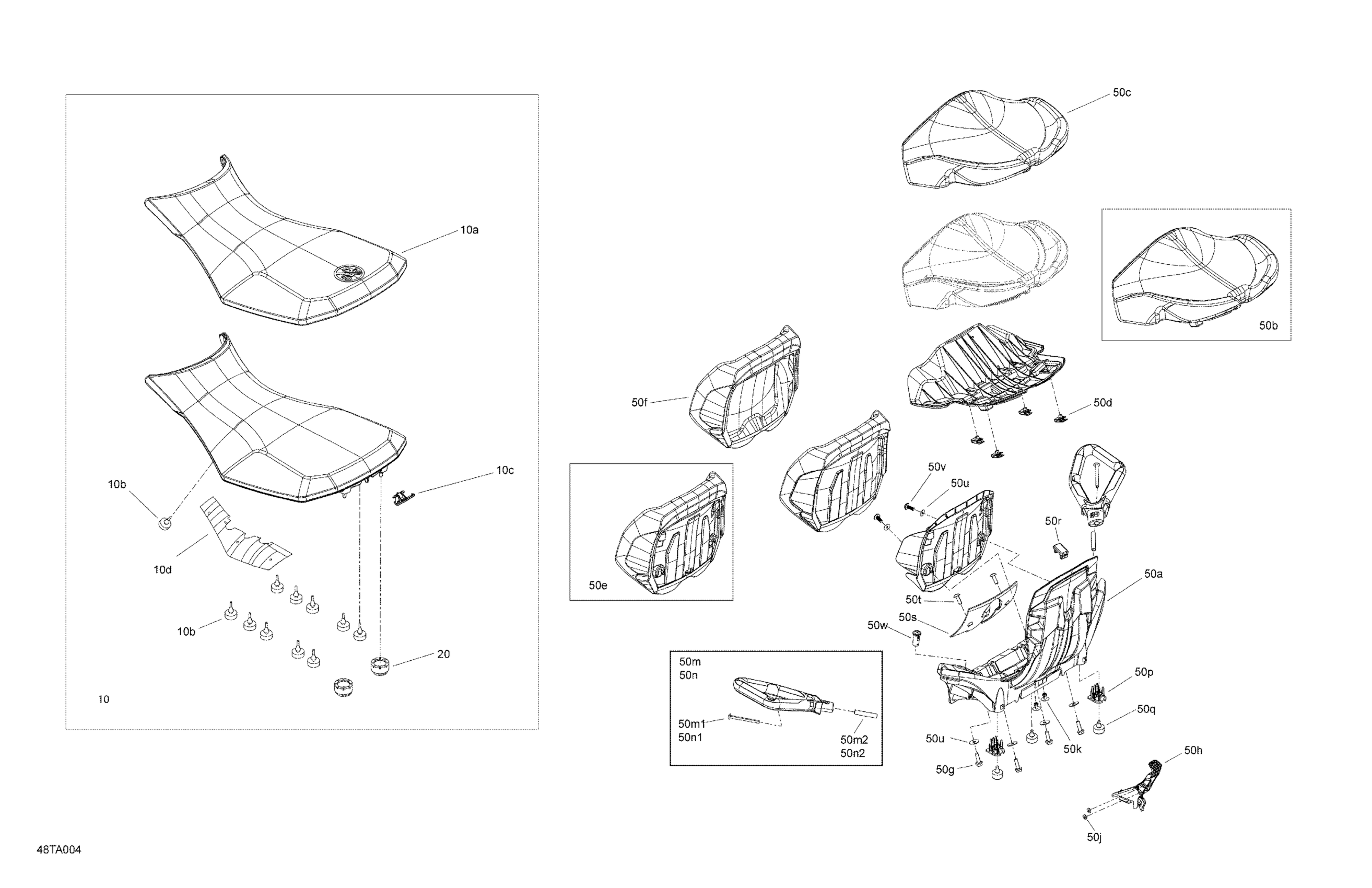

Can-Am Outlander MAX 6X6 - 1000 EFI - XT - 2021 Body - Seat Diagram

Description

Price

Seat Ass'y | Includes 1 to 4

708002491

$349.99

10a

Black, Seat Cover

708000724

$77.49

10b

Rubber Stopper

708000759

$4.19

10c

Latch

708000909

$6.29

10d

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

Seat Stopper

708003609

$10.49

50a

Seat Base

708002574

$249.99

50b

Seat | Model-OUT-MAX XTP

708002086

$234.99

50c

Passenger Seat Cover | Model-OUT-MAX XTP

708001581

$150.49

50d

Panel Nut M6 X 1.0

250100198

$2.11

50e

Backrest | Model-OUT-MAX XTP

708002081

$519.99

50f

Back Rest Cover

708001847

$123.49

50g

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50h

Latch

708001532

$67.99

50j

Flat Washer M5

234051410

$0.53

50k

Pop Rivet 3/16”

293150108

$1.19

50m

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50m1

Torx Truss M8 X 90

250000806

$7.51

50m2

Sleeve

705006129

$14.99

50n

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

50n1

Torx Truss M8 X 90

250000806

$7.51

50n2

Sleeve

705006129

$14.99

50p

Seat Support

708001483

$2.99

50q

Rubber Stopper

708000758

$12.99

50r

Insert

708001511

$4.29

50s

Cap

708001512

$13.99

50t

Torx Truss Screw K40 X 12

250000577

$2.11

50u

Flat Washer

224060201

$1.26

50v

Oval Head Torx Screw K60 X 16

250000546

$2.11

50w

Pilot Lamp Cap

710003910

$4.29
