07- Body - Front Section

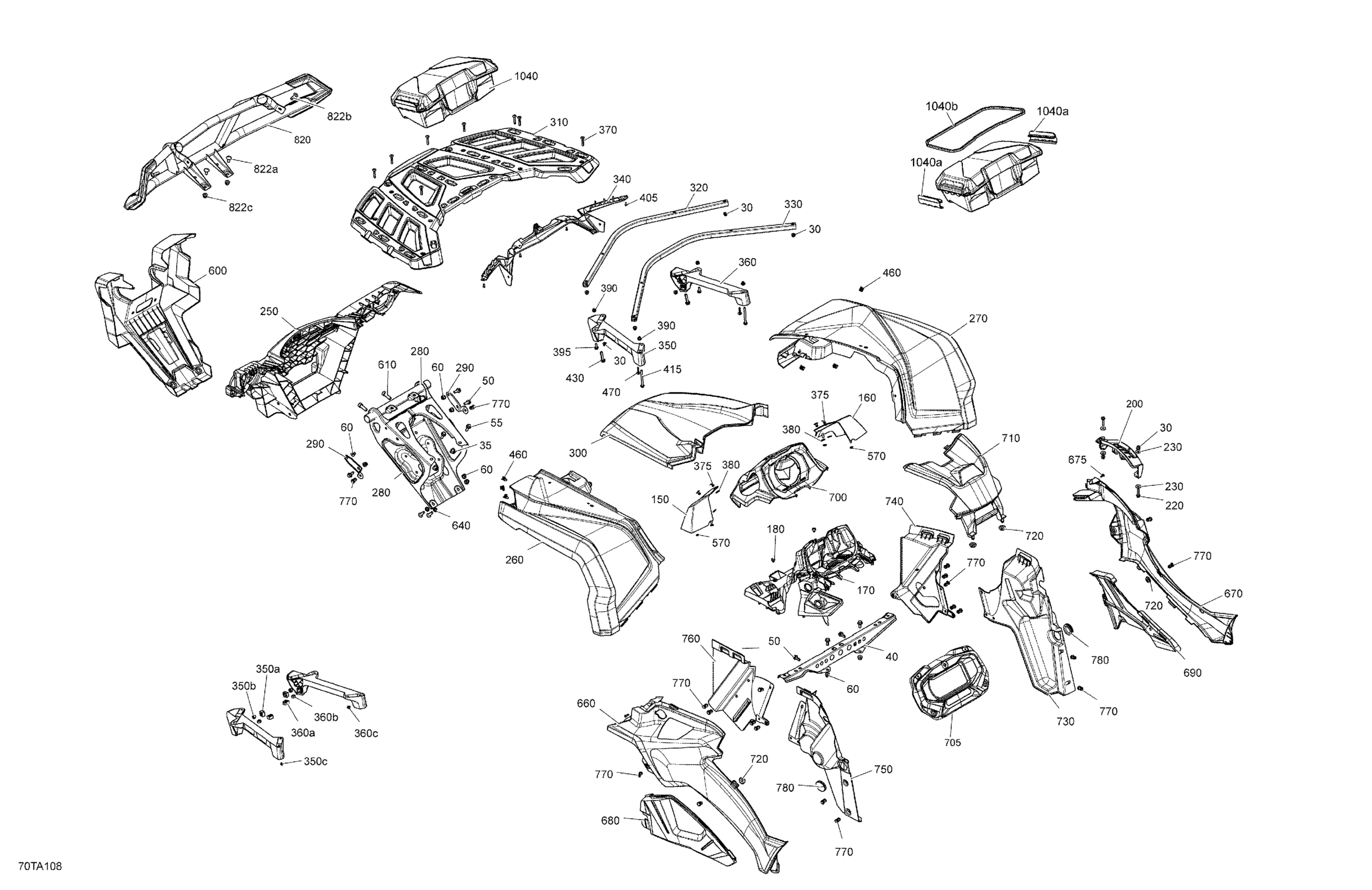

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - XT - North America, 2021 07- Body - Front Section Diagram
#
30
Flange Elastic Nut M6
233261434
Unavailable
35
Hex. Flange Elastic Nut M10
233201434
Unavailable
40
Cargo Rack Center Support
705006812
Unavailable
50
Hex. Flange Screw M8 X 20
207682044
Unavailable
55
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
60
Hex. Flange Elastic Nut M8
233281434
Unavailable
150
LH Air Deflector
705006134
Unavailable
160
RH Air Deflector
705006135
Unavailable
170
Console Support Ass'y | Model-Europe/International
715006101
Unavailable
180
Rubber Bumper
293830005
Unavailable
200
Indicator | Package PRO International
715004085
Unavailable
220
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
230
Flat Washer
224061201
Unavailable
250
Fascia
705012822
Unavailable
260
Pure Magnesium, LH Front Fender Kit | OUT-MAX&B-321&C/U
715006449
Unavailable
270
Pure Magnesium Front RH Fender
715006071
Unavailable
280
Front Bumper Support
705016893
Unavailable
290
Lower Fender Support
705004565
Unavailable
300
Magnesium Hood
715006092
Unavailable
310
Rack Kit | Europe, Int'l
715002784
Unavailable
320
Sectional Bent Tube
705016640
Unavailable
330
Bent Sectional Tube
705016092
Unavailable
340
Lugage Rack Moulding
705004523
Unavailable
350
LH Support Luggage Rack Ass'y | Includes 33 to 35
705011553
Unavailable
350a
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
Unavailable
350b
Hex. Elastic Nut M8 Brass
232581200
Unavailable
350c
Hex. Elastic Stop Nut M6
232561600
Unavailable
360
RH Support Luggage Rack Ass'y | Includes 36 to 38
705011555
Unavailable
360a
Elastic Nut Housing M8 | Included 10a6 to 10a6a
269501943
Unavailable
360b
Hex. Elastic Nut M8 Brass
232581200
Unavailable
360c
Hex. Elastic Stop Nut M6
232561600
Unavailable
370
Black, Torx Screw M6 X 35
250000646
Unavailable
375
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
380
Washer
517124300
Unavailable
390
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
395
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
405
Screw K40 X 10
241140060
Unavailable
415
Hex. Flange Screw M6x70, Scotch Grip
207567044
Unavailable
430
Hex. Flange Screw M8 X 35
207683534
Unavailable
460
Edge Clip
517302785
Unavailable
470
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
570
Push Nut
732610072
Unavailable
600
Front Guard Plate | North America, International
705006299
Unavailable
610
Socket Screw M10 x 30 | XT
205003044
Unavailable
640
Ring
705004497
Unavailable
660
Pure Magnesium, LH Lateral Panel | Pure Magnesium
705011909
Unavailable
670
Pure Magnesium, RH Lateral Panel
705011910
Unavailable
675
Phillips Screw K40 X 16
250000723
Unavailable
680
Deflector_Body Panel Kit
715007008
Unavailable
690
Engine Cover
705003444
Unavailable
700
Gauge Support | Includes 700 to 700a
705012572
Unavailable
705
Gauge Trim
705015547
Unavailable
710
Dash Kit
715006098
Unavailable
720
Grommet
705003264
Unavailable
730
RH Wheel Arch Protector
705013925
Unavailable
740
RH Front Inner Fender
705011463
Unavailable
750
LH Wheel Arch Protector
705013924
Unavailable
760
LH Front Inner Fender
705011465
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
780
Rubber Cover
293250242
Unavailable
820
Deep Black, Bumber Kit
715004837
Unavailable
822a
Carriage Bolt, M8 X 20
207782044
Unavailable
822b
Torx Screw M8 X 30
250000886
Unavailable
822c
Hex. Flange Elastic Nut M8
233281434
Unavailable
1040
Box Ass'y
708200408
Unavailable
1040a
Clip | Outlander Max
269501945
Unavailable
1040b
Was 715900411 Neoprene Seal | Outlander MAX
219704452
Unavailable
