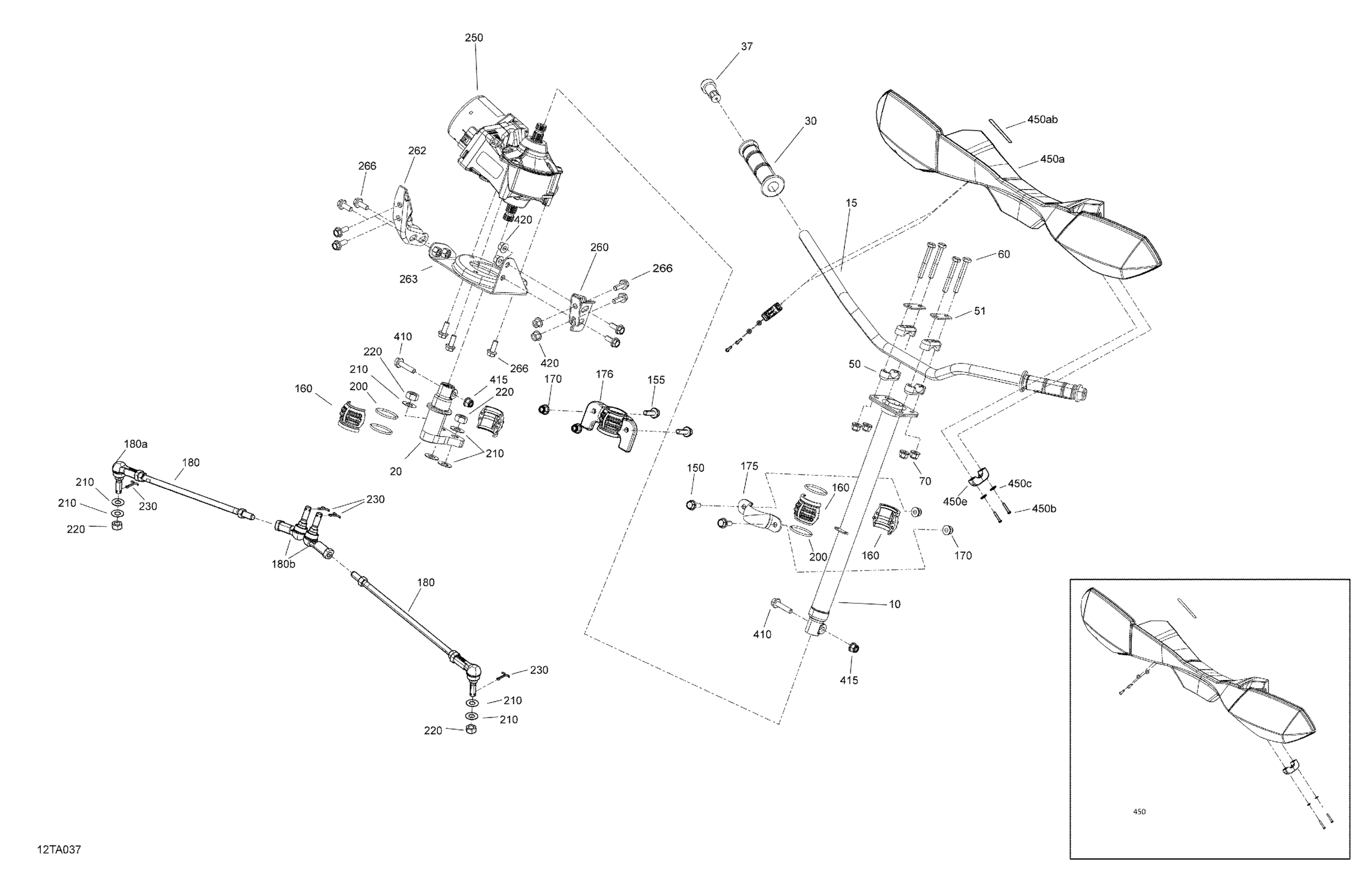

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - XT - North America, 2021 03- Mechanic - Steering Diagram
#
10
Main Tube Kit | Model With DPS
703501108
Unavailable
15
Black, Handle Bar
709401240
Unavailable
20
Pitman Arm | Model With DPS Except XMR
703501160
Unavailable
30
Handle Grip
709400493
Unavailable
37
End Piece
709400449
Unavailable
50
Steering Support
709401799
Unavailable
51
Stiffner
709400509
Unavailable
60
Hex. Screw M8 X 60
207086046
Unavailable
70
Hex. Elastic Flange Nut M8
233281416
Unavailable
150
Hex. Flange Screw M8 X 20
207682044
Unavailable
155
Hex. Flange Screw M8 X 25
207682534
Unavailable
160
Spherical Half Bushing
709400783
Unavailable
170
Hex. Flange Elastic Nut M8
233281414
Unavailable
175
Upper Column Attachment
709400827
Unavailable
176
Column Attachment
709401428
Unavailable
180
Tie-Rod Ass`y | Includes 180 to 180b
703501039
Unavailable
180a
LH Ball Joint
709402303
Unavailable
180b
RH Ball Joint
709402302
Unavailable
200
O-Ring
293300068
Unavailable
210
Hardened Washer
706200281
Unavailable
220
Nut M12
250100099
Unavailable
230
Cotter Pin
211400013
Unavailable
250
Power Steering Ass'y | Model With DPS
709403187
Unavailable
260
LH Power Steering Bracket | Model With DPS
709402184
Unavailable
262
RH Bracket | Model With DPS
709402185
Unavailable
263
Power Steering Support | Model With DPS
709401743
Unavailable
266
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
410
Hex. Flange Screw M8 X 45 Scotch Grip
250001133
Unavailable
415
Hex. Elastic Flange Nut M8
233281416
Unavailable
420
Hex. Flange Nut
233081436
Unavailable
450
Handle Guard Ass'y, XT
703100352
Unavailable
450a
Handle Bar Protector | XT
709400822
Unavailable
450b
DPS Decal
704902966
Unavailable
450ab
Hex. Flange Screw K40 X 25
241142560
Unavailable
450c
Flat Washer | XT
211200035
Unavailable
450e
U-Clamp | XT
517303264
Unavailable
