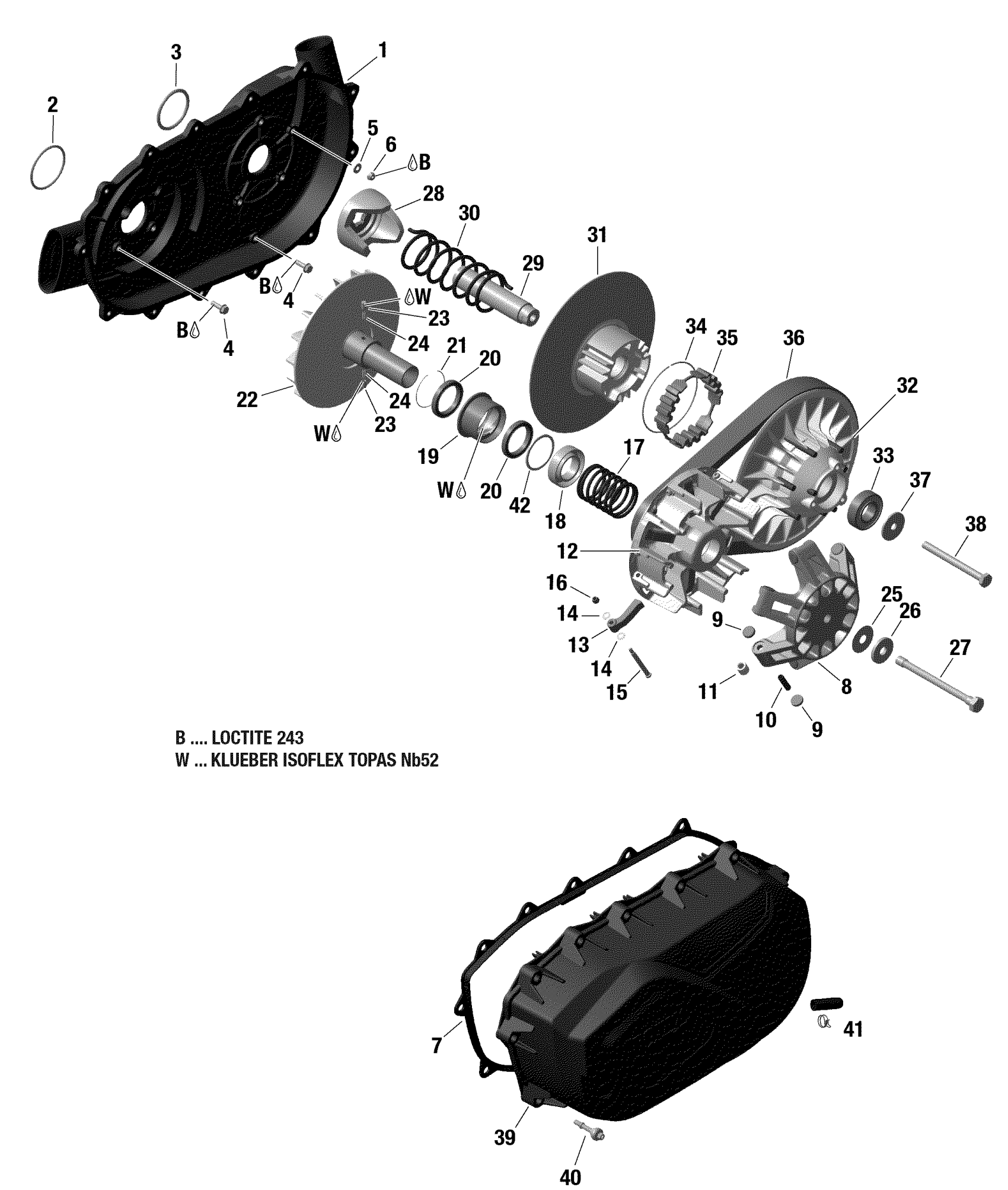

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - North America, 2020 05- Transmission 211 Diagram

#

Description
Price

1

CVT Air Guide

420612304

Unavailable

2

O-Ring

420430408

Unavailable

3

O-Ring

420631089

Unavailable

4

Hex.Screw M6 X 20

420441311

Unavailable

5

Flat Washer

224061121

Unavailable

6

Lock Nut

420842041

Unavailable

7

Gasket

420430126

Unavailable

8>11

Governor Cup Ass'y | Includes 6 to 9

420280522

Unavailable

9

Slider Shoe Set

420281296

Unavailable

10

Roller Axle

417223257

Unavailable

11

Roller

417223767

Unavailable

12

Outer Haft

420280467

Unavailable

13>16

Centrifugal Lever Kit | Includes 13-16

420248609

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring, Drive Pulley

420238610

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Drive Pulley Clutch

420257195

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Retaining Ring

420245951

Unavailable

22

Inner Half

420280374

Unavailable

23

Spring Sleeve

420229577

Unavailable

24

Spring

420239134

Unavailable

25

Thrust Washer

420627920

Unavailable

26

Spring Washer

420627768

Unavailable

27

Hex. Screw M12 X 140

420641859

Unavailable

28

Cam

420280473

Unavailable

29

Driven Pulley Shaft

420220914

Unavailable

30

Compression Spring

420638040

Unavailable

31

Inner Half Ass'y | Includes 33a to 35

420280499

Unavailable

32>35

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

Unavailable

33

Ball Bearing

420932421

Unavailable

34

Retaining Ring

420245911

Unavailable

35

Torque Gear

420660124

Unavailable

36

V-Belt

422280366

Unavailable

37

Thrust Washer

420627590

Unavailable

38

Hex. Screw M10 X 110

420441485

Unavailable

39

Variator Cover

420611397

Unavailable

40

Hex Screw M6 X 30

420440568

Unavailable

41

Drain Plug Kit

707001179

Unavailable
