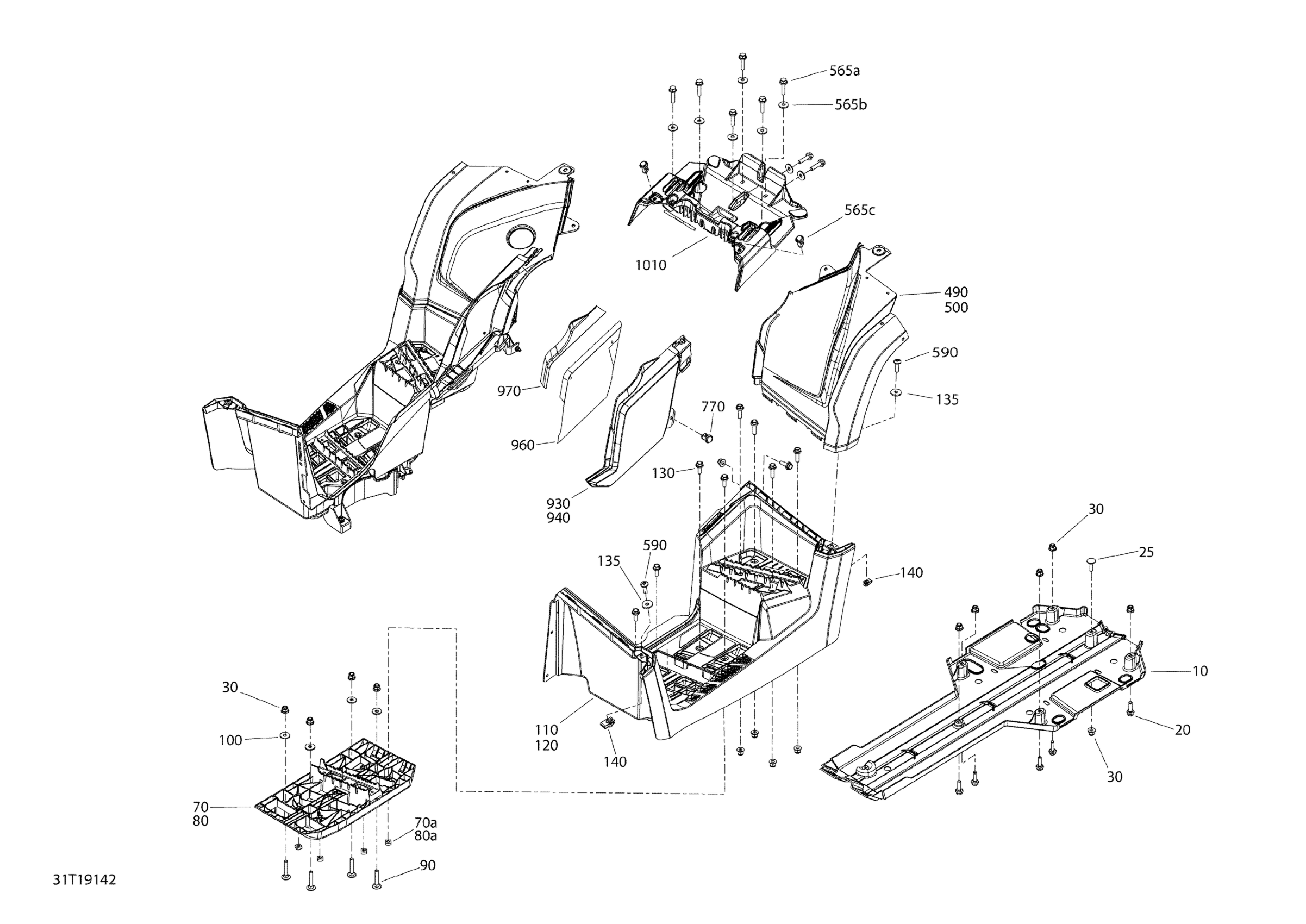

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - North America, 2019 09- Body And Accessories 6X6 MAX - 1000 EFI - North america - Middle Diagram
#
Description
Price
10
Protective Plate Kit
715002374
Unavailable
20
Hex. Flange Screw M6 X 20
207662054
Unavailable
25
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
30
Flange Elastic Nut M6
233261434
Unavailable
70
LH Structural Footboard
705011540
Unavailable
70a
Square Nut M6
232862412
Unavailable
80
RH Structural Footboard
705011542
Unavailable
80a
Square Nut M6
232862412
Unavailable
90
Carriage Bolt M6 X 35
207763554
Unavailable
100
Flat Washer 6 mm
234062410
Unavailable
110
LH Footrest Max
705003525
Unavailable
120
RH Footrest Max
705003521
Unavailable
130
Hex. Flange Screw M6 X 16
207661654
Unavailable
135
Flat Washer
224061201
Unavailable
140
Panel Nut M6 X 1.0
250100198
Unavailable
490
Pure Magnesium Rear LH Fender
715006078
Unavailable
490
Not Available As Spare Part - Friction Washer
Unavailable
500
Pure Magnesium Rear RH Fender
715006090
Unavailable
500
Not Available As Spare Part - Friction Washer
Unavailable
565a
Hex Flange Screw M6 X 25
250000841
Unavailable
565b
Stainless Steel Flat Washer
234062670
Unavailable
565c
Tuflok Plastic Rivet
293150230
Unavailable
590
Torx Screw M6 X 20
250000722
Unavailable
770
Tuflok Plastic Rivet
293150230
Unavailable
930
LH Extension Panel
715001897
Unavailable
940
RH Extension Panel
705004348
Unavailable
960
Heat Shield
705006870
Unavailable
970
Heat Shield
705006871
Unavailable
1010
Seat Holder
705007948
Unavailable
