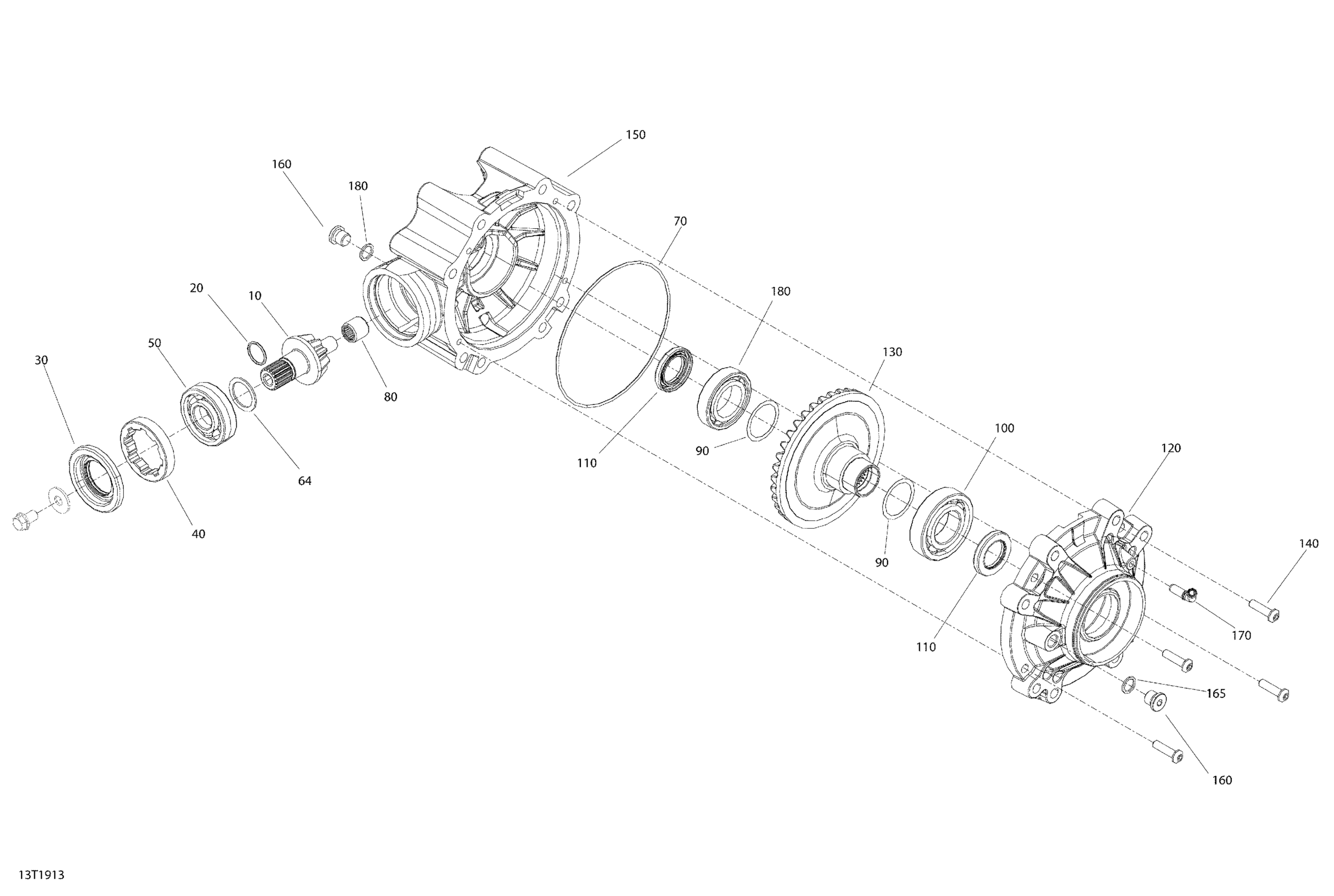

Can-Am Outlander MAX 6X6 - 1000 EFI - 2019 Rear Drive - Final Drive Unit Diagram

#

Description
Price

10

PINION 10 TOOTH - Call your local BRP dealership

705501571

Unavailable

20

O-Ring | 4X4

705500267

$6.06

30

Oil Seal | 4X4

705401481

$17.88

40

Nut | 4X4

705401603

$33.55

50

Ball Bearing | 4X4

705500260

$29.82

64

Pinion Gear Shim

705501162

$14.72

70

Seal

705502064

$8.06

80

Needle Bearing

705501408

$64.90

90

Differential Shim 0.02 mm

705502060

$12.64

100

Ball Bearing

705502738

$55.19

110

Oil Seal

705501996

$20.12

120

Cover Case

705502197

Unavailable

130

Gear, 36 Tooth

705501397

$404.45

140

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

150

Rear Gear Case

705502195

Unavailable

160

Fill Level Plug | 4X4

705500504

$8.73

165

Copper Washer | 4X4

705500506

$0.42

170

Breather Tube

705501584

$13.45

180

Ball Bearing

705502737

$44.75

200

LARGER CAP - Call your local BRP dealership | not shown

705502152

Unavailable

210

SMALLER CAP - Call your local BRP dealership | not shown

705502153

Unavailable

240

Rubber Plug | not shown

705502240

Unavailable
