08- Rear Drive - Common Parts

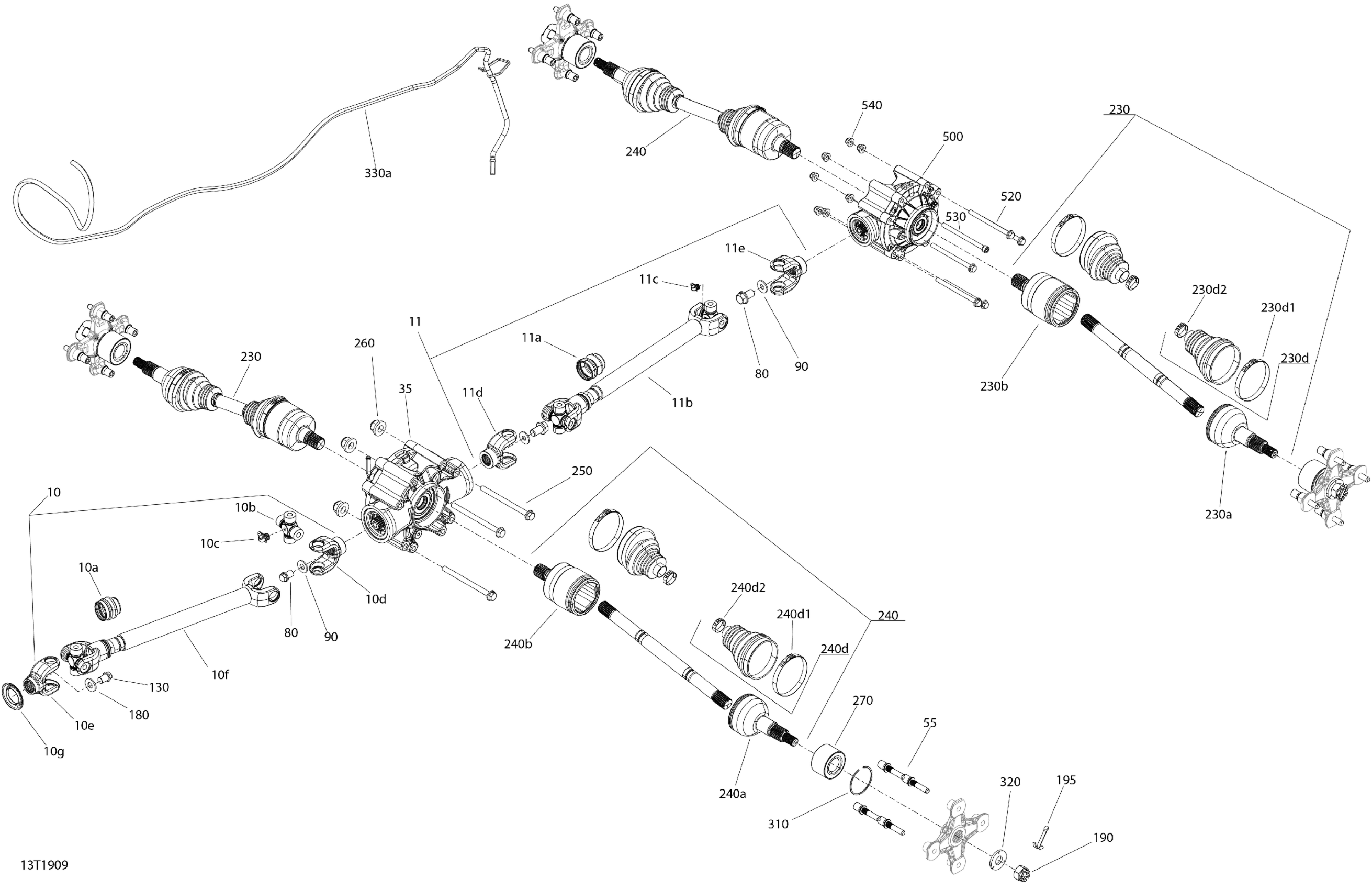

Can-Am 003 - Outlander MAX 6X6 - 1000 EFI - North America, 2019 08- Rear Drive - Common Parts Diagram
#
10
Shaft Ass'y Kit | T3
703500992
Unavailable
10
Shaft Ass'y Kit
703500989
Unavailable
10a
Rubber Boot
715900118
Unavailable
10b
Universal Joint Ass'y | T3
703500846
Unavailable
10c
Grease Fitting | T3
715900295
Unavailable
10d
Yoke | T3
715900500
Unavailable
10e
Joint | T3
715900436
Unavailable
10f
Spline Yoke
715900106
Unavailable
10g
Protector
705501123
Unavailable
11
Shaft Ass'y Kit | Includes 54 to 54h
703500987
Unavailable
11
Shaft Ass'y Kit | Built Feb 2019 and Up
703501084
Unavailable
11a
Rubber Boot
715900118
Unavailable
11b
Universal Joint
715900326
Unavailable
11c
Grease Fitting | T3
715900295
Unavailable
11d
Yoke
715900438
Unavailable
11e
Yoke | T3
715900500
Unavailable
11e
Yoke
715900499
Unavailable
11f
Protector
705501123
Unavailable
15
Protector
705501123
Unavailable
35
Final Drive Unit
705502230
Unavailable
35
Middle Drive Unit Ass'y | Built Before Feb 2019
705503088
Unavailable
55
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
80
Hex Flange Screw M12 X 16, S.Grip
250001040
Unavailable
90
Flat Washer M12
250200102
Unavailable
130
Hex Flange Screw M12 X 16
250001039
Unavailable
180
Conical Spring Washer M12
250200005
Unavailable
190
Hex. Flange Castellated Nut M18
232291413
Unavailable
195
Cotter Pin
250400071
Unavailable
230
RH CV Joint | All Except Package XMR
705502711
Unavailable
230a
CV Joint
705501776
Unavailable
230b
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
230c
Circlip
705501781
Unavailable
230d
Boot Kit
705501864
Unavailable
230d1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
230d2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
240
LH CV Joint | All Except Package XMR
705502710
Unavailable
240a
CV Joint
705501776
Unavailable
240b
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
240c
Circlip
705501781
Unavailable
240d
Boot Kit
705501864
Unavailable
240d1
Oetiker Clamp, 82.1 mm
715900241
Unavailable
240d2
Oetiker Clamp, 27.3 mm
715900242
Unavailable
250
Hex. Flange Screw M10 X 135
250001041
Unavailable
260
Hex. Flange Elastic Nut M10
233201436
Unavailable
270
Ball Bearing
293350150
Unavailable
310
Circlip
293370019
Unavailable
320
Conical Spring Washer M18
250200171
Unavailable
330a
Polyurethane Hose 4000MM Long | Includes 250 to 250a
219704389
Unavailable
500
Final Drive Unit
705502231
Unavailable
510
Hex. Flange Screw M10x145
705502741
Unavailable
520
Hex. Flange Screw M10 X 135
250001041
Unavailable
530
Socket Screw HD.din.912
231003587
Unavailable
540
Hex. Flange Elastic Nut M10
233201436
Unavailable
560
Elastic Stop Nut M10
232500416
Unavailable
