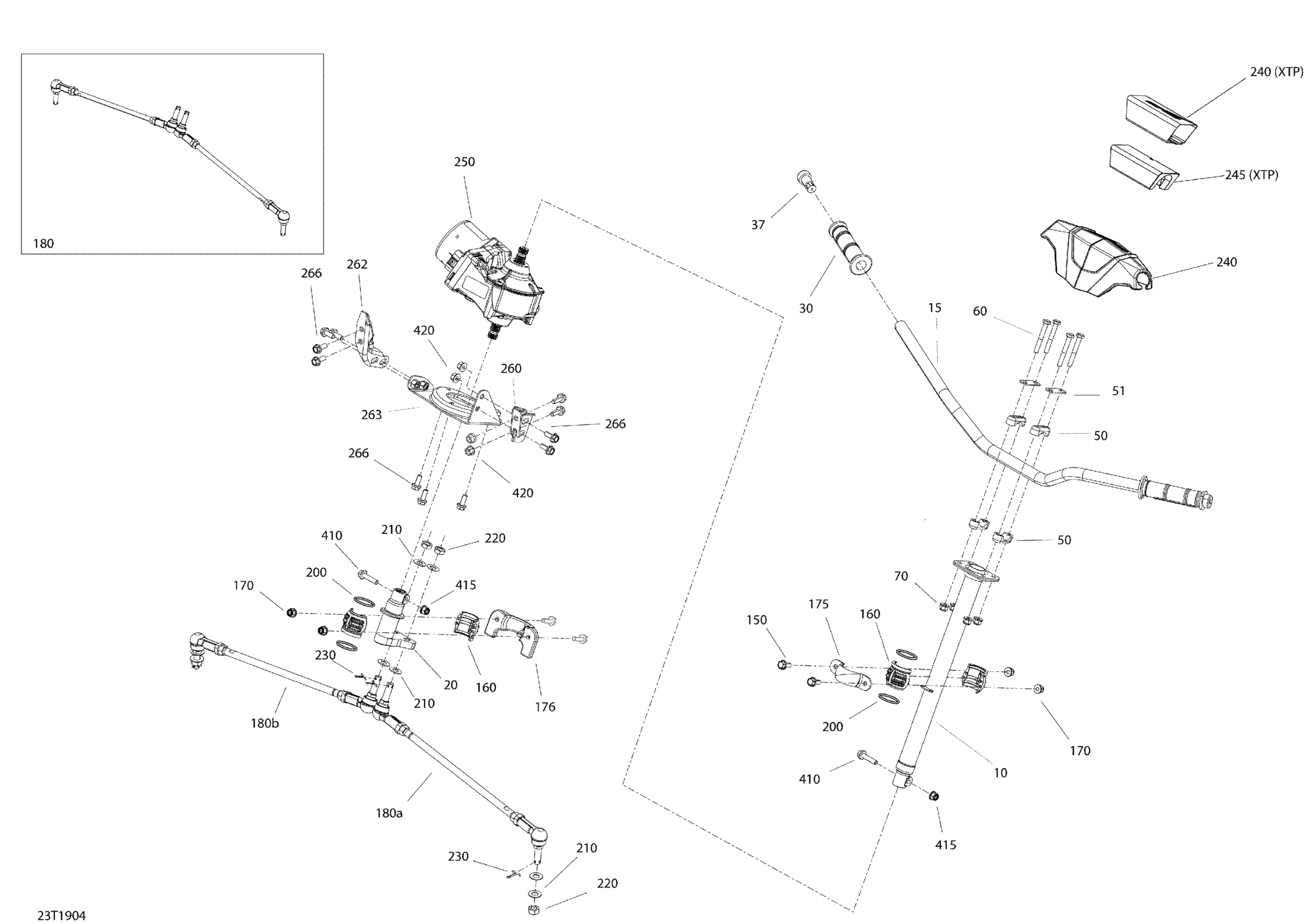

Can-Am Outlander MAX 6X6 - 1000 EFI - 2019 Steering 6X6 - 1000 EFI - North America Diagram

Main Tube Kit | Model With DPS

703501108

$74.99

Black, Handle Bar

709401240

$69.99

Pitman Arm | Model With DPS Except XMR

703501160

$43.99

Handle Grip

709400493

$14.83

End Piece

709400449

$8.49

Steering Support

709401799

$22.49

Stiffner

709400509

$4.69

Hex. Screw M8 X 60

207086046

$2.85

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M8 X 20

207682044

$1.15

Spherical Half Bushing

709400783

$7.65

Hex. Flange Elastic Nut M8

233281414

$1.47

Upper Column Attachment

709400827

$1.09

Column Attachment

709401428

$38.99

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$110.99

LH Ball Joint

709402303

$36.99

RH Ball Joint

709402302

$36.99

O-Ring

293300068

$7.65

Hardened Washer

706200281

$2.85

Nut M12

250100099

$2.09

Cotter Pin

211400013

$0.37

Cover

709400939

$24.99

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Power Steering Ass'y | Model With DPS

709403187

$1,218.99

LH Power Steering Bracket | Model With DPS

709402184

$18.49

RH Bracket | Model With DPS

709402185

$28.99

Power Steering Support | Model With DPS

709401743

$19.99

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 35

250000986

$2.11

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Nut M8

233081416

$1.15
