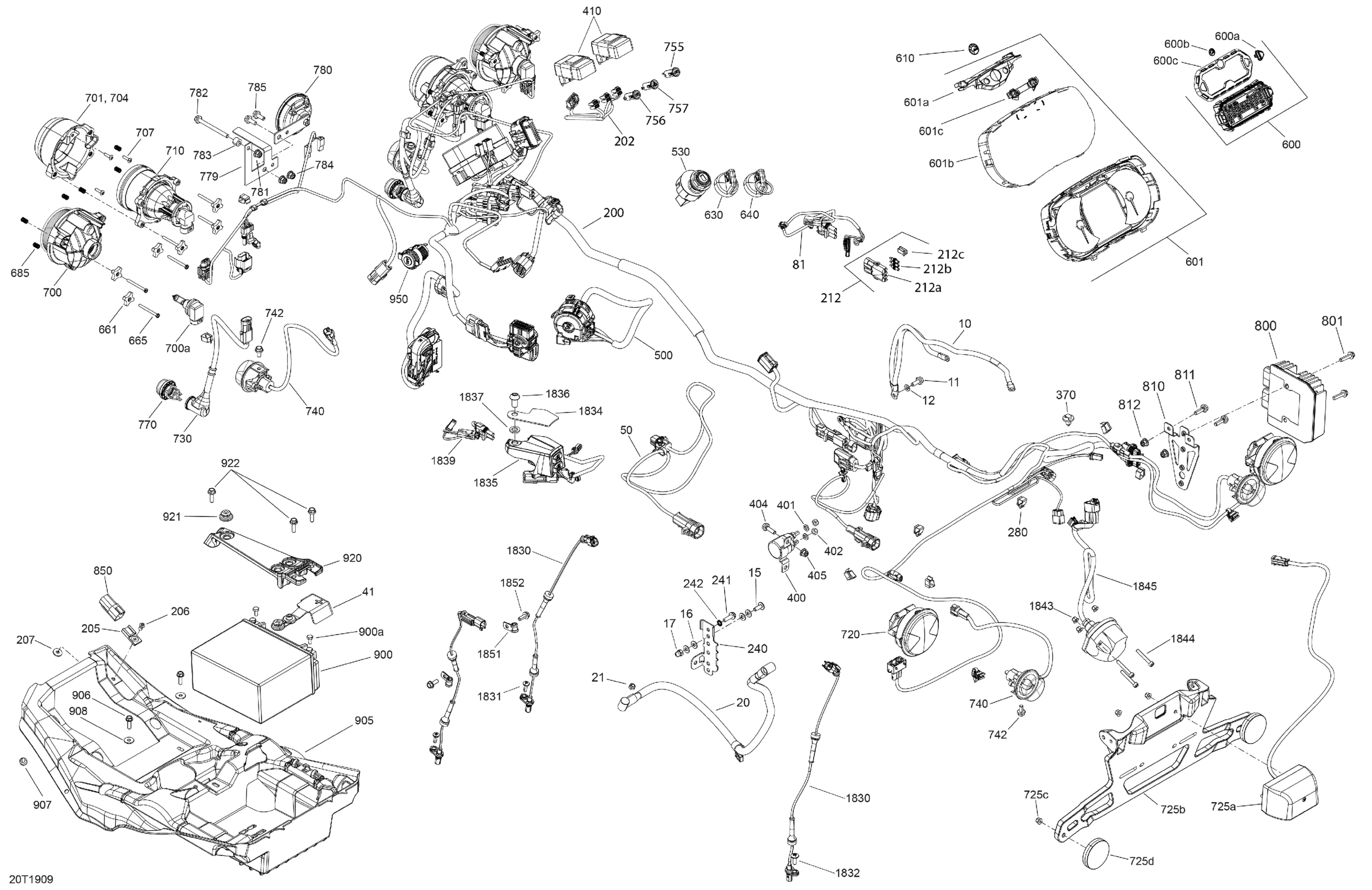

Can-Am Outlander MAX 650 EFI - T3, 2019 Electrical - 570 EFI & 650 EFI - Packages XT, XTP & Pro Nordic Diagram

#

Description
Price

10

Ground Cable

710004382

$17.88

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

12

Lock Washer Helical M6

234161601

$1.06

15

Torx Head Screw M6 X 16

250000717

$2.00

16

Flat Washer

224061121

$0.51

17

Domed Nut M6

232361493

$2.03

20

Positive Cable

710004377

$24.60

21

Elastic Stop Nut M6

232561414

$1.78

41

Battery Cable Cap

710006729

$6.72

50

Extension Cable 02 Sensor

710005819

$20.12

81

Winch Cable

710005246

$39.52

200

No ABS Cable

710006170

$905.94

200

Harness

710006169

$905.94

202

Indicator Light Cable

710005840

$16.39

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

240

Connector Bracket

710004118

$5.04

241

Hex. Flange Screw M6 X 20

210262040

$2.00

242

External Serrated Lock Washer 6 mm

234461608

$1.06

280

Clip

414227300

$1.40

370

Mount Dart

293730040

$0.99

400

Starter Relay

710007777

$45.49

401

Lock Washer Helical M6

234161601

$1.06

402

Elastic Stop Nut M6

232561414

$1.78

404

Hex. Flange Screw M6 X 20

207662054

$0.96

405

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

410

Flasher Unit

710003239

$73.10

500

LH Multi Fonction Control

710006211

$154.45

530

Ignition Switch

710008400

$72.36

600

Speedometer

710006216

$305.19

600

Speedometer | Package XTP

710006489

$394.00

600a

Trim Ring Ass'y

710001183

$17.88

600a1

BRP Logo13 mm

704904615

$11.09

600b

Button

715900265

$11.81

601

Speedometer | Package XTP

710006489

$394.00

601a

Cap Support | XTP

705004366

$11.49

601b

Lens | XTP

415129349

$22.36

601c

Speedometer Button | XTP

415129355

$13.52

610

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

610

BRP Logo13 mm

704904615

$11.09

630

Grey, Electronic Key

710002183

$53.70

640

Black, Electronic Key

710000817

$53.70

661

Handle

572106600

$9.03

665

Hex. Screw K40 X 45

250000718

$2.00

685

Spring

517168600

$6.70

700

Low Beam | Includes 54 to 55

710006177

$108.18

700a

Bulb 12V 55W

715900141

$38.78

701

RH High Front Housing

710002291

$25.34

704

LH High Front Housing

710002292

$20.12

707

Phillips Screw K40 X 16

250000723

$0.93

710

High Beam Ass'y | Includes 11 to 12

710002525

$108.18

710a

Halogen Bulb

415129249

$38.78

720

Tail Light Ass'y | Includes 32 to 33

710001645

$79.07

720a

Bulb

520000758

$8.60

725a

License Plate Light | Europe

710005563

$117.88

725b

Plate Support | Europe

708300434

$24.60

725c

Hex. Flange Elastic Nut M5

233251414

$1.91

725d

Red Reflector

705011221

$11.96

730

Position Light Harness

710005676

$12.61

740

Flasher | Europe

710002964

$34.30

742

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

755

Pilot Light Trailer Flasher

710005766

$7.64

756

Pilot Light Tail Lamp

710005767

$7.64

757

Pilot Lamp | Model-Europe

710003909

$20.12

770

Day Light | Europe

710001726

$32.81

779

Horn Support

710006113

$10.82

780

Horn

710004791

$36.54

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

782

Hex. Flange Screw M6 X 70

207667044

$0.81

783

Bushing

708001129

$9.91

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

785

Hex. Flange Screw M6 X 16

207661644

$0.70

800

Voltage Regulator

710005842

$183.55

801

Hex. Flange Forming Screw M6 X 25

210262550

$1.88

810

Rectifier Support

710001752

$6.90

811

Hex. Flange Screw M6 X 20

207662044

$1.91

812

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

850

Connector Plug

710004904

$8.30

900

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900a

Battery Bolt Kit

250000282

$3.39

905

Battery Support

710008370

$41.76

906

Hexagonal Head Screw

210262050

$2.00

907

Rubber Bumper

293830005

$6.12

908

Stainless Steel Flat Washer

234062670

$2.00

920

Retaining Plate

710009129

$7.09

921

Stopper Rubber

705014429

$6.09

922

Hex. Flange Screw M6 X 20

207662054

$0.96

950

DC Outlet

710001248

$35.79

1830

Speed Sensor

710006981

$75.34

1831

Torx Screw K50 X 16

250000720

$1.60

1832

Torx Truss Screw M6 X 16

250000721

$1.60

1834

Top Plate

715004008

$19.37

1835

Multifonction Housing Ass'y

710004990

$138.78

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$8.67

1837

Washer

503192496

$0.73

1843

Hex. Flange Elastic Nut M5

233251414

$1.91

1844

Socket Head Screw M5 X 35

205053588

$1.79

1845

Trailer Harness

710005846

$202.96

1851

Clamp

293650256

$5.00

1852

Hex. Flange Screw M6 X 16

210261640

$2.00
