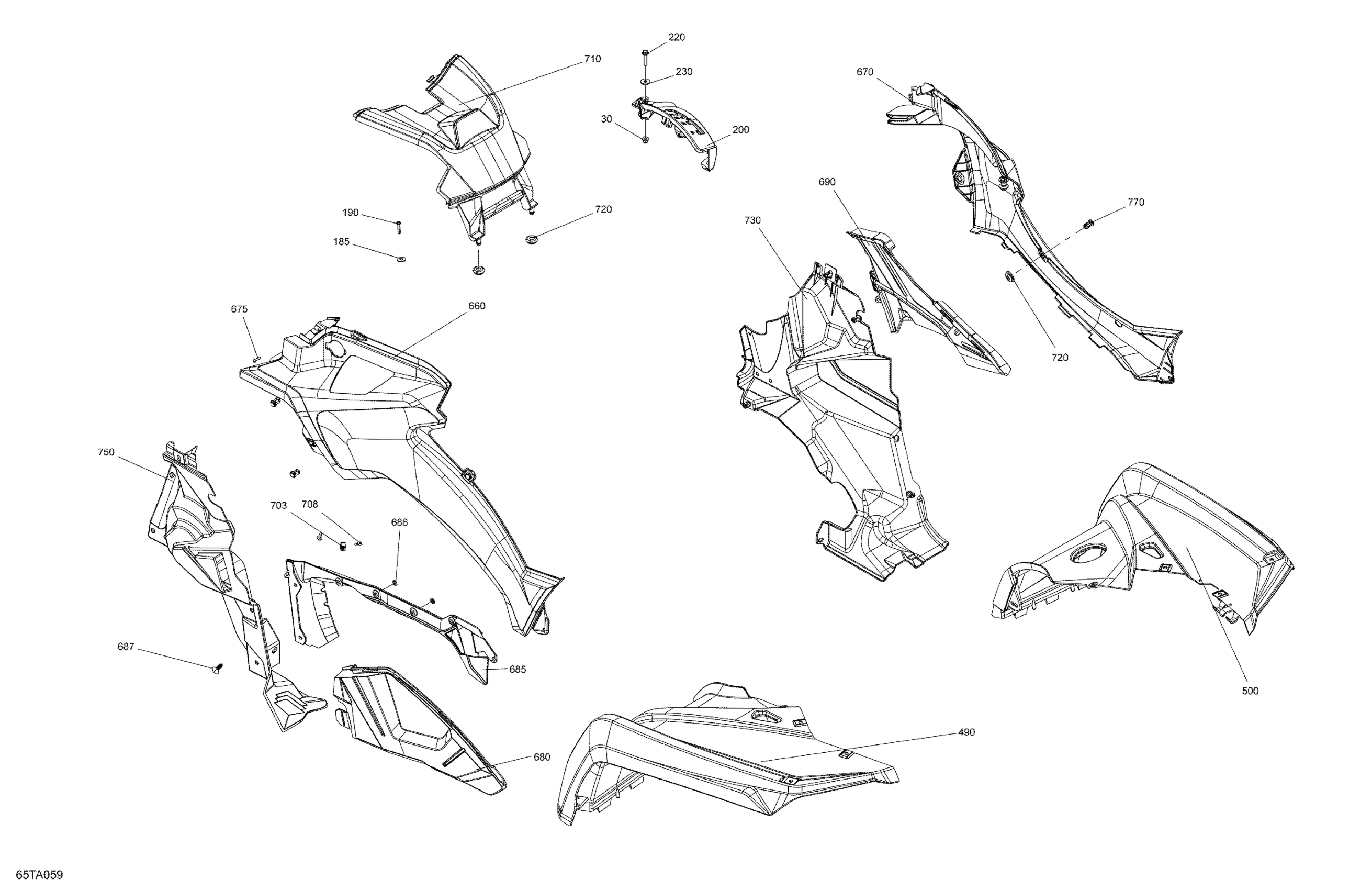

Can-Am Outlander 570 EFI - XMR - 2021 Body - Fender Kit Diagram

Flange Elastic Nut M6

233261434

$3.61

Hex. Flange Elastic Nut M8

233281434

$1.74

Flat Washer M6, Stainless

234062600

$0.64

Hex. Flange Screw K50 X 2.24 X 25

241152540

$3.61

Shifter Gate Kit | Engine 570 Except Europe, T3

715003977

$27.66

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Flat Washer

224061201

$1.11

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

Washer

517124300

$0.16

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Granite Grey, LH Rear Fender Kit | Model Granite Grey

715007973

$128.43

Granit Gray, LH Rear Fender | North America

715007045

$128.43

Granit Gray RH Rear Fender | North America

705014604

$128.43

Granite Grey, LH Central Body Panel | Model Granite Grey

705016111

$69.20

Granite Grey, RH Central Body Panel | Model Granite Grey

705016114

$55.35

Phillips Screw K40 X 16

250000723

$0.81

Deflector Body Panel Kit

715007294

$51.51

Deflector Body Panel

705014061

$39.97

Push Nut

732610072

$1.72

Black, Dart

293730006

$0.81

Engine Cover

705003444

$20.74

Extruded Panel Nut M4 X 0.7

250100143

$6.77

Torx Head Screw M4 X 16

250000797

$1.63

Dash Kit

715005837

$32.28

Grommet

705003264

$3.43

RH Front Wheel Arch Protector

705017023

$27.66

LH Front Wheel Arch Protector

705017022

$27.66

Tuflok Plastic Rivet

293150230

$1.21
