Partiron

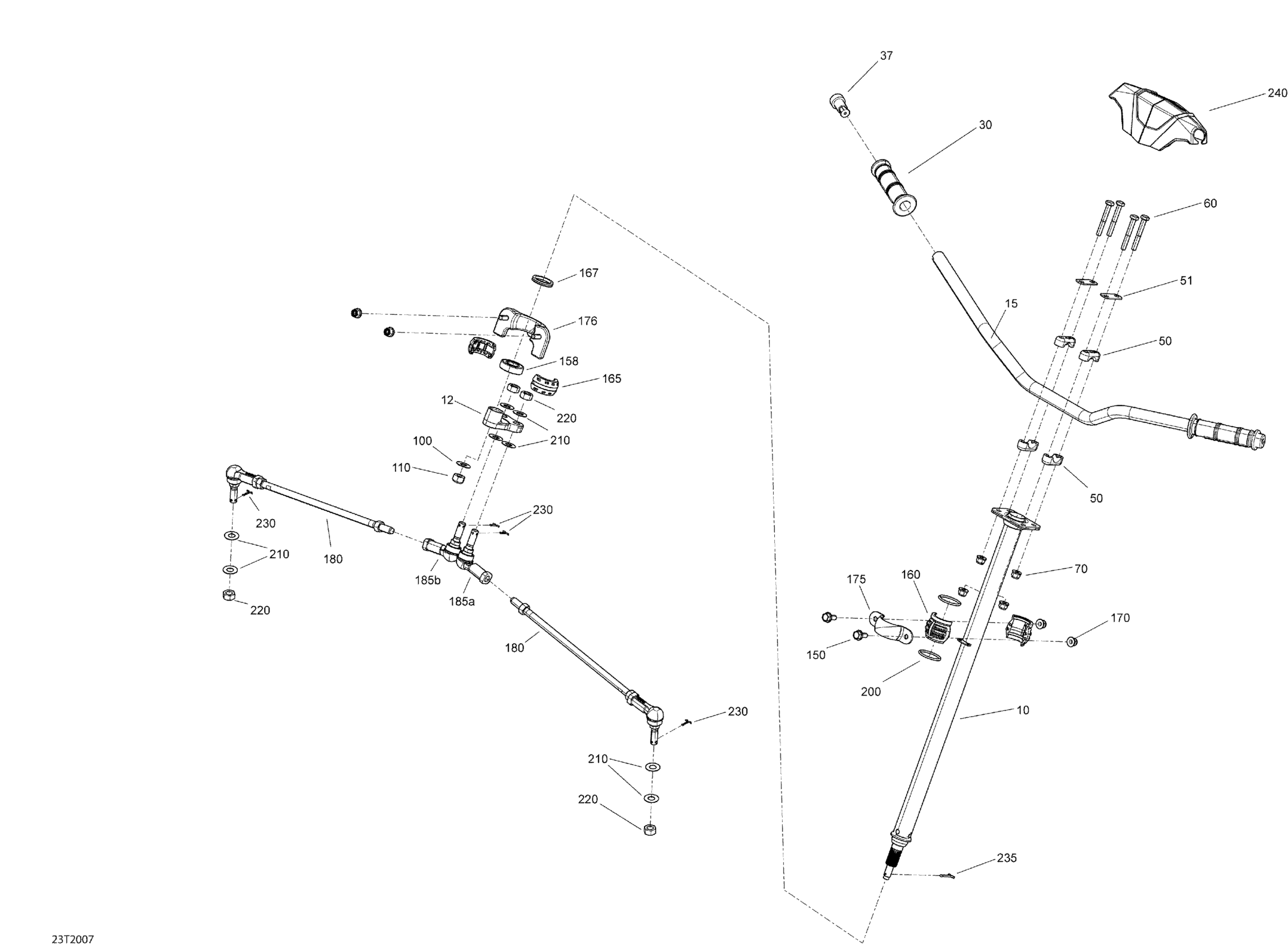

Can-Am Outlander 570 EFI - STD - International, 2020 Steering Diagram

#

Description
Price

10

Black, Upper Main Tube | Package-STD

709401545

$149.99

12

Pitman Arm | Package-STD

709401542

$28.99

15

Black, Handle Bar

709401240

$69.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709401799

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Hardened Washer

706200281

$2.85

110

Hex. Flange Elastic Nut M12

250000047

$1.90

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682534

$2.11

158

Ball Bearing | Package-STD

503190396

$14.30

160

Spherical Half Bushing

709400783

$7.65

165

Spherical Half Bushing | Package-STD

709401370

$7.23

167

Seal

293250177

$7.29

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

185a

LH Ball Joint

709402303

$36.99

185b

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

235

Cotter Pin

250400034

$2.11

240

Cover

709400939

$24.99
