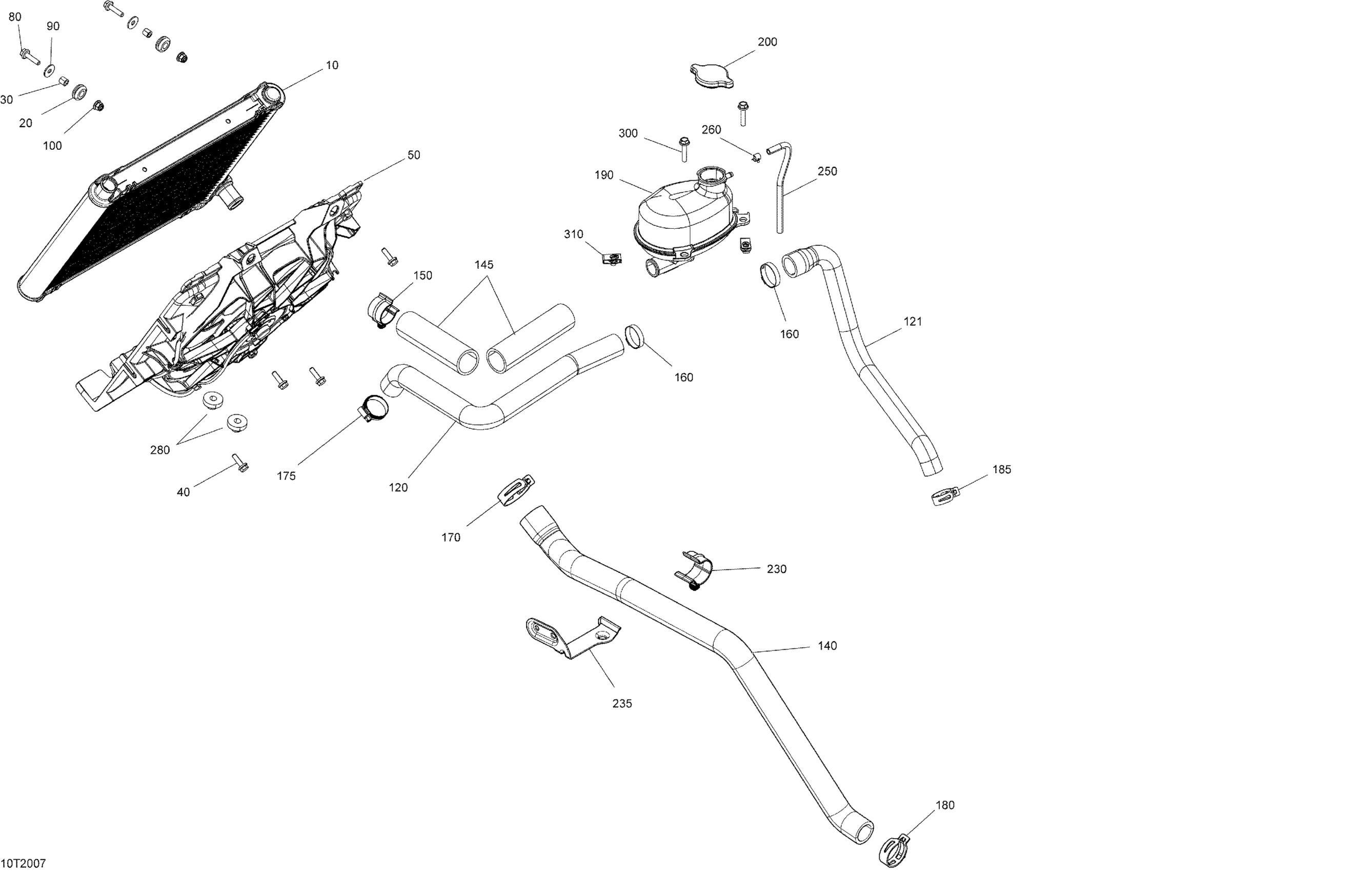

Can-Am Outlander 570 EFI - STD - International, 2020 Cooling - System Diagram

Description

Price

Radiator

709200286

$476.99

Grommet

709000582

$4.69

Bushing

293900105

$7.65

Hex. Flange Screw M6 X 20

207662034

$2.11

Fan Ass'y

709200563

$249.99

Hex. Flange Screw M6 X 25

207662534

$2.11

Flat Washer

250200082

$0.42

100

Flange Elastic Nut M6

233261434

$4.44

120

Radiator Inlet Hose

709200278

$34.99

121

Engine Outlet Hose

709200310

$19.49

140

Radiator Outlet Hose | Engine 570

709200792

$23.99

145

Tubing 35 MM 1000MM Long

219704428

$10.99

150

Retainer

275500590

$9.69

160

Gear Clamp

509000162

$7.29

170

Norma Spring Clamp

293650166

$4.44

175

Norma Gear Clamp

293650098

$4.44

180

Norma Spring Clamp

293650166

$4.44

185

Norma Spring Clamp

293650109

$4.12

190

Coolant Tank

709200297

$55.99

200

Radiator Pressure Cap

709200207

$25.49

230

Retainer

275500526

$4.55

235

Hose Support

709200641

$9.69

250

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

260

Spring Clamp

414554800

$0.88

280

Grommet

709200948

$8.89

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

310

Panel Nut M6 X 1.0

250100198

$2.11
