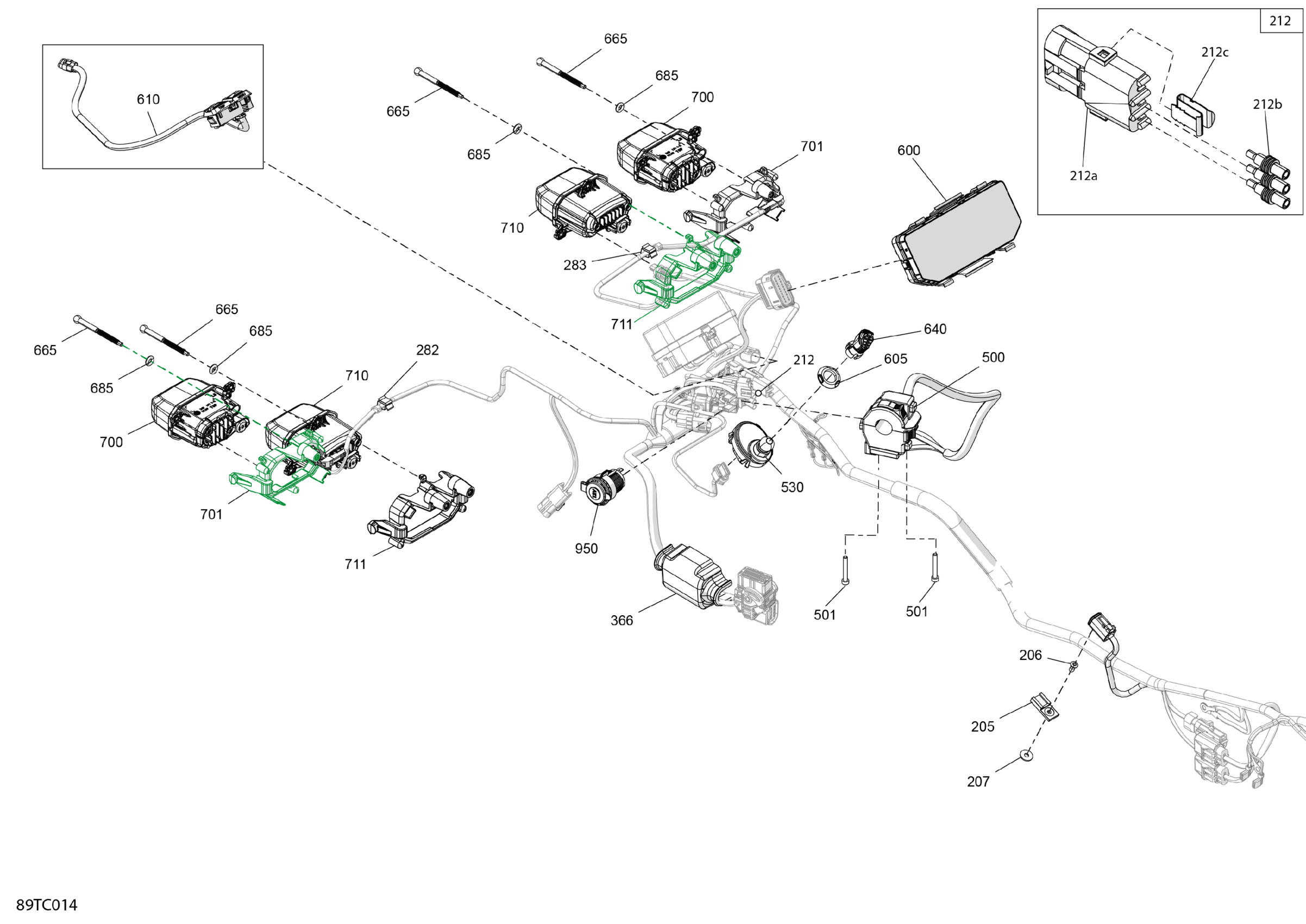

Can-Am Outlander 1000R EFI - XXC - CE, 2023 Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$9.57

206

Pop Rivet 3/16"

390402300

$0.73

207

Washer | DS 650 X

391301600

$0.46

212

Connector Ass'y | STD / Includes 7 to 10

710000917

$11.81

212a

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.31

212b

Wire Seal

278000216

$2.93

212c

Clip

710000992

$3.88

282

Clip

414227300

$1.40

283

Clip

414227300

$1.40

366

Soft Protection Sleeve

710007255

$2.51

500

Switch Handle

710006134

$66.39

501

Socket Head Screw M5 X 35

205053588

$1.79

530

Terminal Dess One-Wire

515179240

$69.37

600

Multifunction Gauge

710005253

$935.04

605

Safety Nut (DESS Switch)

278002963

$3.12

610

Multifunction Switch

710008638

$58.93

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

665

Ajustment Screw

710005837

$5.90

685

O-Ring

293300192

$3.81

700

Low Beam Light

710008088

$152.21

701

Exterior Headlight Support

710008396

$23.85

710

HIgh Beam Light

710006910

$152.21

711

Interior Headlight Support

710008394

$8.15

950

DC Outlet

710001248

$35.79
