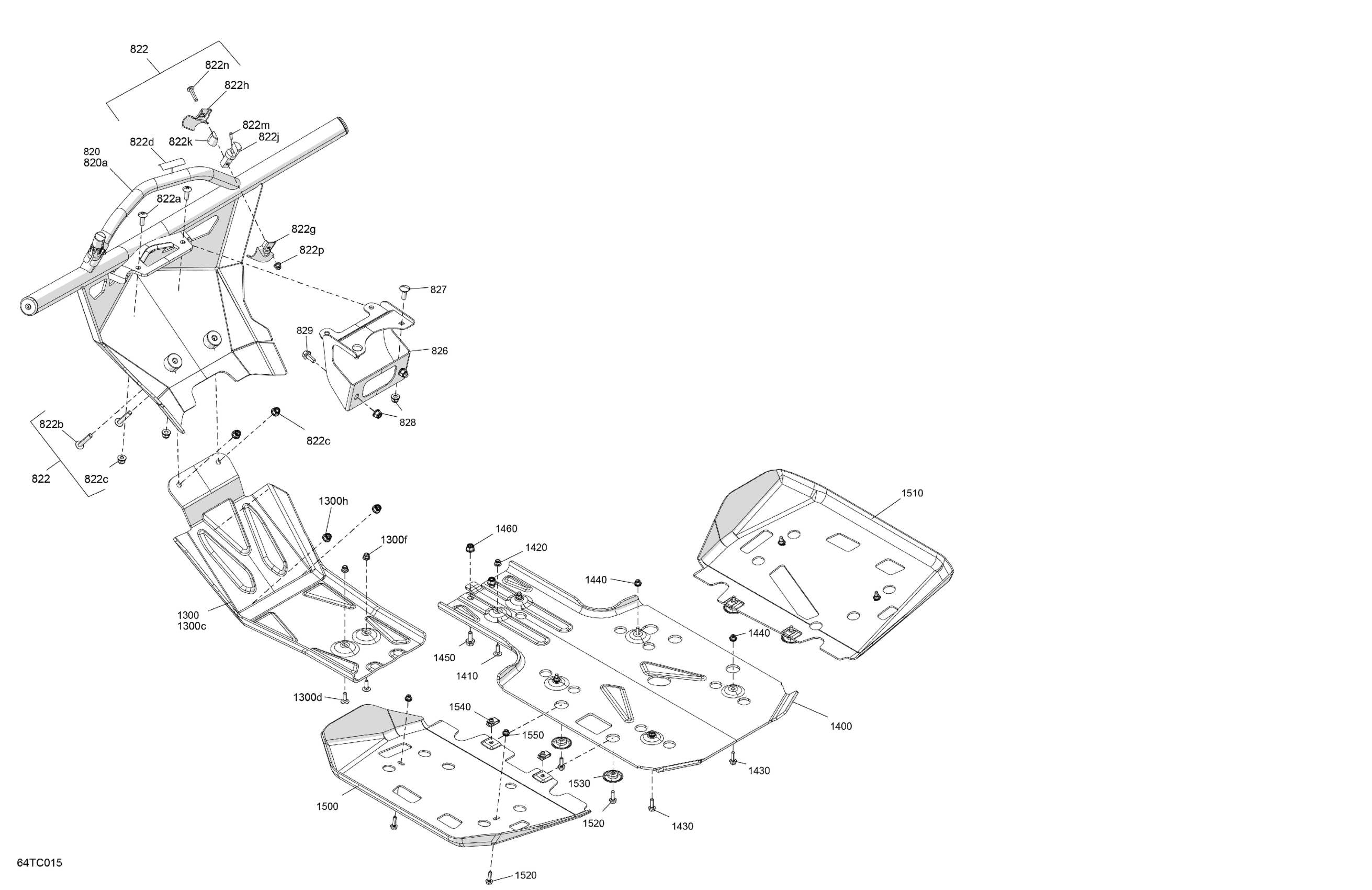

Can-Am 003 - Outlander 1000R EFI - XXC - CE, 2023 07- Body - Skid Plate and Bumper Diagram
#
820
Front Bumper Ass'y | Model XXC
715007687
Unavailable
820a
Front Bumper | Includes 820a to 820a7
705014428
Unavailable
822
Hyper Silver, Front Bumper Kit | Includes 822 to 822p
705016615
Unavailable
822a
Torx Truss M8 X 25
250000874
Unavailable
822b
Torx Truss Screw M8 X 50
250000761
Unavailable
822c
Hex. Flange Elastic Nut M8
233281414
Unavailable
822d
Warning Decal Bumper
704906938
Unavailable
822g
Clamp_Mounting Lh B-282
705018280
Unavailable
822h
Clamp_Mounting Rh B-282
705018287
Unavailable
822j
End Piece
705016578
Unavailable
822k
Sliding Block
705016579
Unavailable
822m
Socket Set Screw M5 X 20 | Europe
206252044
Unavailable
822n
Stainless, Torx Screw M6 X 30
250000842
Unavailable
822p
Hex. Flange Elastic Nut M6
233261494
Unavailable
826
Bumper Support
705012722
Unavailable
827
Carriage Bolt, M8 X 25 | XXC
207782544
Unavailable
828
Hex. Flange Elastic Nut M8
233281414
Unavailable
829
Hex. Flange Screw M8 X 25
207682544
Unavailable
1300
Front Skid Plate | Package Hunter
715000926
Unavailable
1300b
Decal "Can-Am" | Not Shown
704904566
Unavailable
1300c
Front Skid Plate | Package Hunter
715000926
Unavailable
1300d
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
1300f
Flange Elastic Nut M6
233261434
Unavailable
1300g
Hex Torx Truss M8 X30
250000745
Unavailable
1300h
Hex. Flange Elastic Nut M8
233281414
Unavailable
1400
Central Skid Plate | Package-XXC
705204031
Unavailable
1410
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
1420
Flange Elastic Nut M6
233261434
Unavailable
1430
Hex. Flange Screw M6 X 20
207662054
Unavailable
1440
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
1450
Hex. Flange Screw M8 X 25
207682544
Unavailable
1460
Hex. Flange Elastic Nut M8
233281414
Unavailable
1500
LH Skid Plate | Package Hunter
705010659
Unavailable
1510
RH Skid Plate | Package Hunter
705010660
Unavailable
1520
Hex. Flange Screw M6 X 20
207662054
Unavailable
1530
Cup | Package Hunter
705007171
Unavailable
1540
Panel Nut M6 X 1.0
250100198
Unavailable
1550
Insert Half Hex Body M6 x 1.0
250100199
Unavailable
