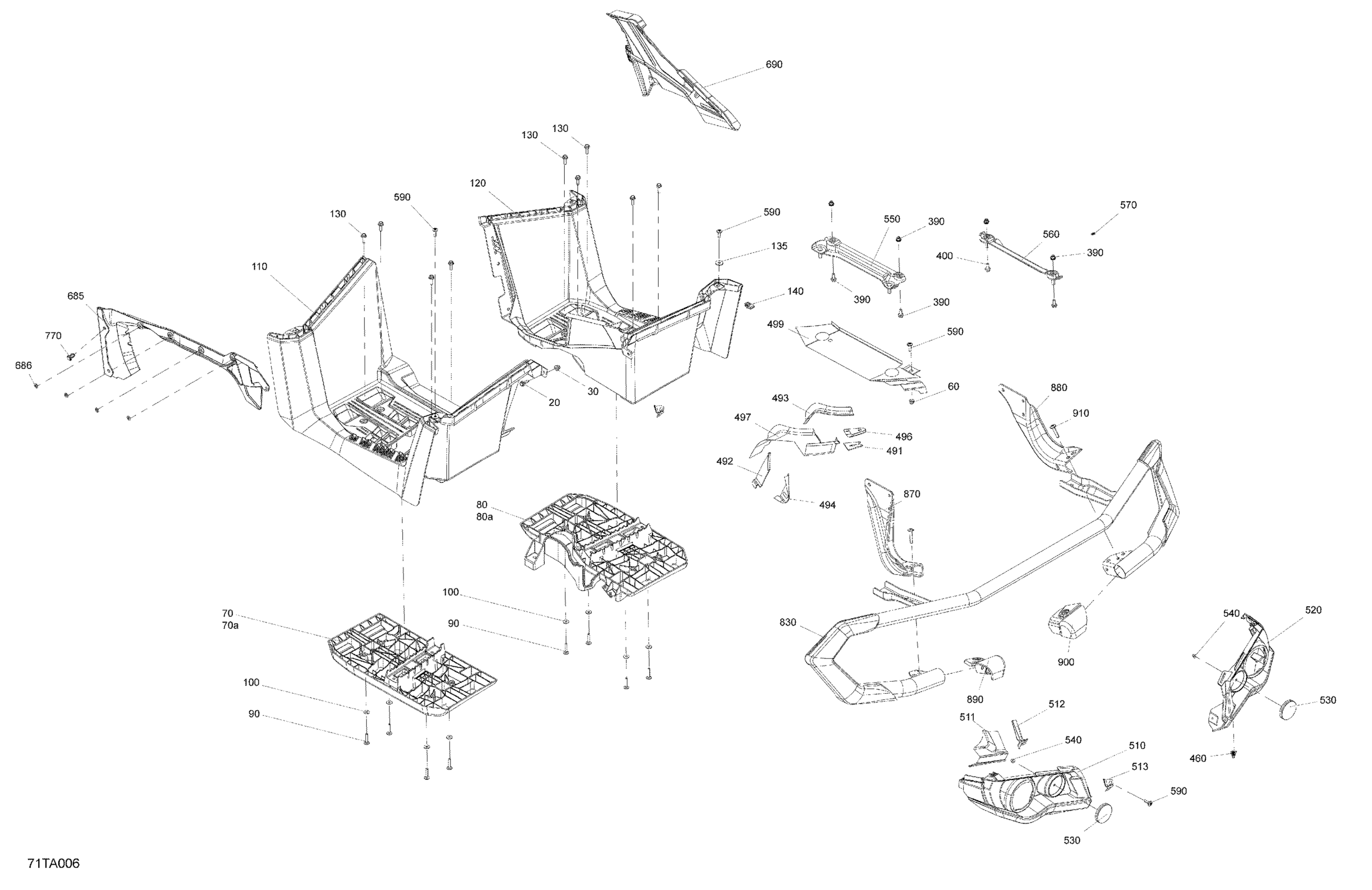

Can-Am Outlander 650 EFI - STD_DPS_XT_Mossy Oak Edition - 2021 Body - Rear Section Diagram

#

Description
Price

20

Hex. Flange Screw M6 X 20

207662054

$0.96

30

Flange Elastic Nut M6

233261434

$4.15

60

Hex. Flange Elastic Nut M8

233281434

$2.00

70

LH Structural Footboard

705011540

$108.18

70a

Square Nut M6

232862412

$1.36

80

RH Structural Footboard

705011542

$95.49

80a

Square Nut M6

232862412

$1.36

90

Carriage Bolt M6 X 35

207763554

$1.96

100

Flat Washer 6 mm

234062410

$0.73

110

LH Step

705007040

$87.28

120

RH Step

705007039

$113.40

130

Hex. Flange Screw M6 X 20

207662054

$0.96

135

Flat Washer

224061201

$1.27

140

Panel Nut M6 X 1.0

250100198

$1.99

390

Insert Half Hex Body M6 x 1.0

250100199

$2.91

400

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

460

Edge Clip

517302785

$0.81

491

Heat Shield

707002456

$3.81

492

Heat Shield

707002457

$3.81

493

Heat Shield

707002458

$16.39

494

Heat Shield

707002459

$3.81

496

Heat Shield

707002461

$3.81

497

Heat Shield

707002462

$3.81

499

Heat Shield

707002464

$3.81

510

LH Rear Facia | North America, International

705006643

$14.27

511

Heat Shield

707002103

$8.66

512

Heat Shield

707002107

$1.91

513

Heat Shield

707002594

$0.88

520

RH Rear Facia | North America, International

705006650

$14.27

530

Red Reflector

705011221

$11.96

540

Flange Elastic Nut M5

233251434

$1.91

550

LH Support

705007277

$27.58

560

RH Support

705007278

$27.58

570

Push Nut

732610072

$1.97

590

Torx Screw M6 X 20

250000722

$1.54

685

Deflector Body Panel

705014061

$38.78

686

Push Nut

732610072

$1.97

690

Engine Cover

705003444

$18.63

770

Tuflok Plastic Rivet

293150230

$1.39

830

Rear Bumper

715004920

$212.32

870

LH Rear Bracket | XT

705008164

$33.55

880

RH Rear Bracket | XT

705008165

$33.55

890

LH Bracket | XT

705005094

$6.39

900

RH Bracket | XT

705005095

$6.39

910

Stainless, Torx Screw M6 X 30

250000842

$2.00
