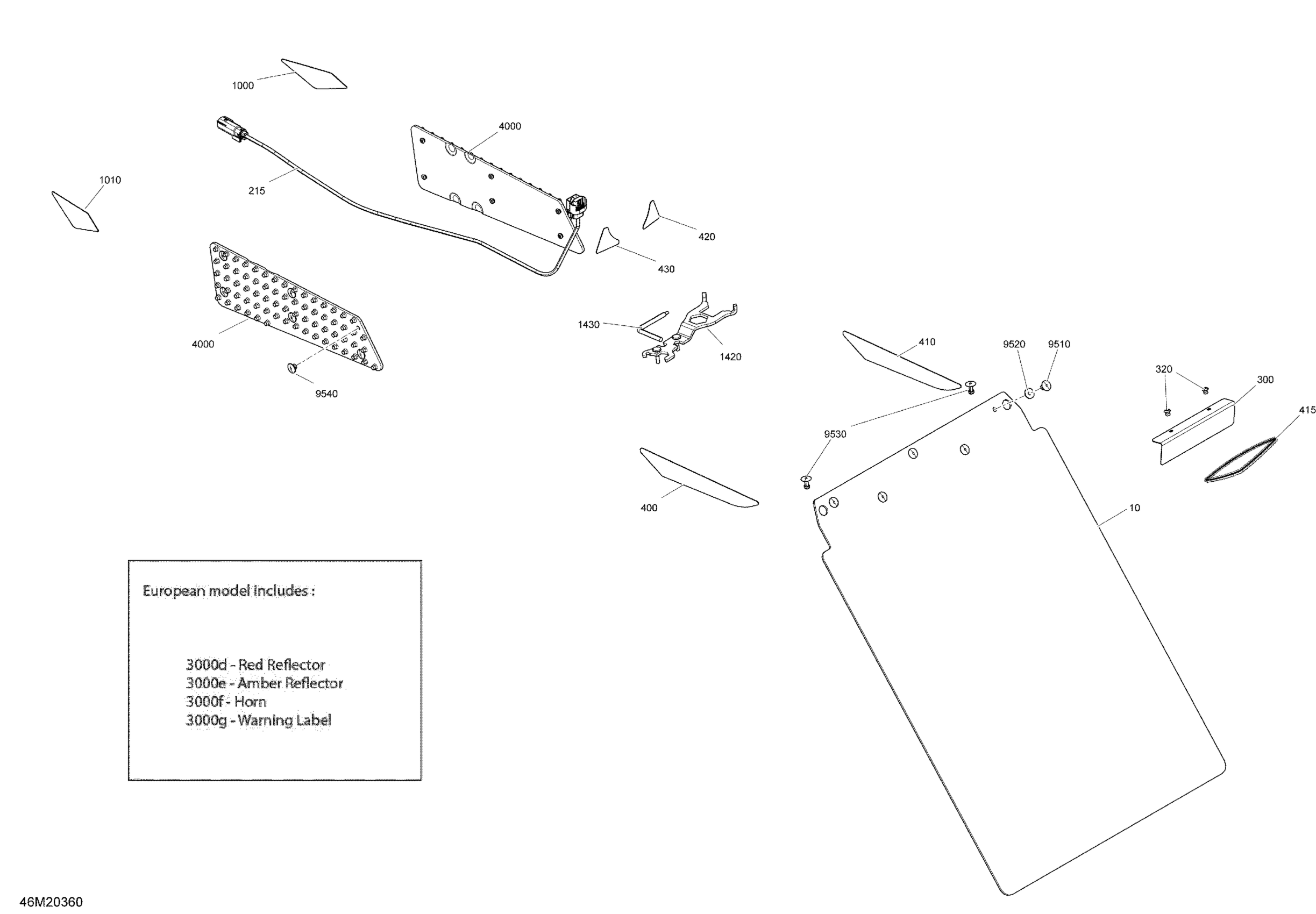

Ski-Doo MXZ 600RS - Europe, 2020 Utilities Diagram

Description

Price

Snow Flap

520002213

$79.99

215

Wiring Harness

515178825

$25.99

300

Support

520002339

Unavailable

320

Pop Rivet 3/16”

293150108

$1.19

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

415

Red, Lateral Reflector

705003412

$15.49

420

Reflector Red Rear Right

520002289

$4.79

430

Reflector Red Rear Left

520002288

$4.79

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1420

Wrench

520001499

$13.73

1430

Belt Installation Tool

417127579

$12.49

4000

Grip Plate Kit

860200164

$44.49

3000d

Red Reflector | Canada/USA

705012439

$9.99

3000e

Amber, Reflector

520000271

$19.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

9510

Pop Rivet 3/16”

293150108

$1.19

9520

Washer

517124300

$0.19

9530

Pop Rivet 3/16"

293150100

$1.09

9540

Pop Rivet 3/16"

293150103

$0.55
