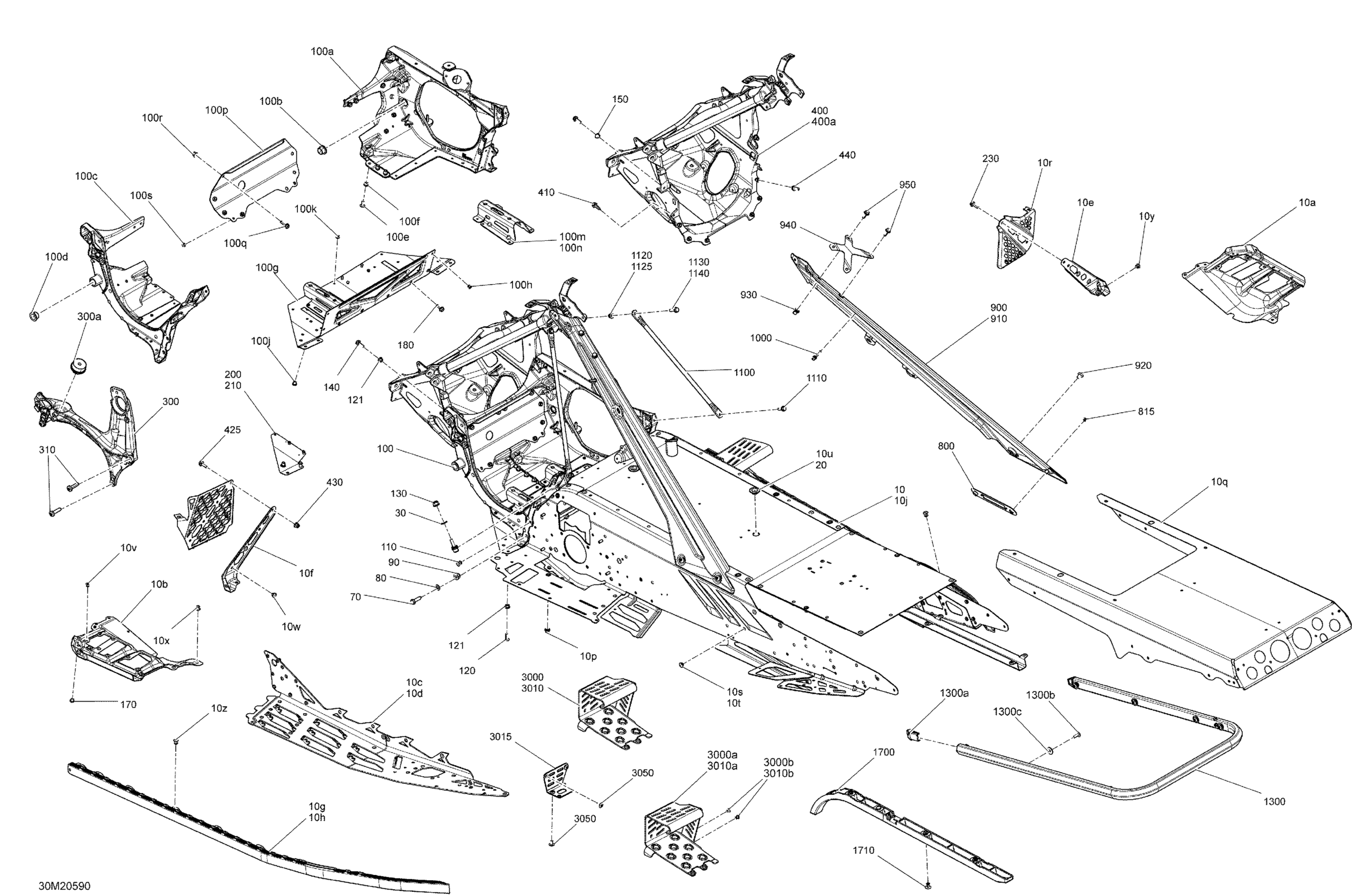

Ski-Doo MXZ 600RS - Europe, 2020 Frame - System - Racing Diagram

#

Description
Price

10

MODULE_CHASSIS TUNNEL 137 B-160 - Call your local BRP dealership | Includes 10 to 10z

415130368

Unavailable

10a

Deep Black, RH Footrest Reinforcement

518330738

$82.28

10b

Deep Black, LH Footrest Reinforcement

518331523

$82.28

10c

RH Footrest

518329010

$41.51

10d

LH Footrest

518329011

$41.51

10e

Stirrup Reinforcement

518331253

$18.43

10f

Deep Black, LH Chasssis Reinforcement

518331560

$18.43

10g

RH Roller

518329023

$180.74

10h

LH Roller

518329024

$180.74

10j

Radiator Tunnel Ass'y

518334033

$689.20

10p

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10q

Tunnel 137 Rear

518331531

Unavailable

10r

RH Footrest

518328460

$38.43

10s

Black, Dart 8 mm

293730047

$2.14

10t

Black, Dart 10 mm

293730060

$4.42

10u

Black, Plug

293730052

$6.37

10v

Rivet Avibulb 3/16

293150203

$0.29

10w

Hemlock Rivet, 6.5 mm

293150096

$3.17

10x

Hemlock Rivet, 6.5 mm

293150119

$4.00

10y

Hemlock Rivet, 6.4 mm

293150174

$6.43

10z

Ornit Rivet 6,5 X 14.5

293150266

$1.94

20

Black, Plug

293730052

$6.37

30

Washer

506151252

$3.11

70

Hex Screw M8 X 30

250000942

$0.92

80

Flat Washer 8 mm

234081410

$0.69

90

Hex. Flange Elastic Nut M8

233281414

$1.14

100

Engine Chassis Module | Includes 100 to 100s

518334278

$666.89

100a

RH Member Ass'y | Includes 100a to 100b

518330545

$208.43

100b

Leg Cushion

505073317

$5.92

100c

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

100d

Leg Cushion

505073317

$5.92

100e

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

100f

Collar Huck Magna-Grip 6.4

293150149

$0.37

100g

Bottom Plate

518331661

$34.58

100h

Rivet Avibulb 3/16

293150203

$0.29

100j

Insert M5 X 0.8

293450268

$1.95

100k

Rivet Avibulb 3/16

293150203

$0.29

100m

RH Cross Link

518329814

Unavailable

100n

LH Cross Link

518330641

Unavailable

100p

Front Member

518330100

$56.12

100q

Hex. Flange Screw M6 X 20

207662046

$1.74

100r

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

100s

Rivet Avibulb 3/16

293150203

$0.29

110

Ornit Rivet 6,5 X 14.5

293150266

$1.94

120

Tork Screw M6 X 18

250000536

$2.06

121

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

130

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Flange Screw M6 X 20

207662044

$1.66

150

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

170

Insert M5 - 0.8

293450267

$4.22

180

Hex. Flange Screw M6 X 16

207661646

$1.00

200

LH Junction Reinforcement

518329493

$20.74

210

RH Junction Reinforcement

518329494

$20.74

230

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

300

Brace Ass'y | Includes 300 to 300b

518330166

$319.20

300a

Rubber Mount

512061284

Unavailable

310

Screw-Pan HD.Torx M8X30

250001060

$0.65

400

Chassis Suspension Module

518333318

$792.28

400a

Chassis Suspension Module

518334459

$653.05

410

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

425

Hex. Flange Screw M6 X 20

207662044

$1.66

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

440

Hex. Flange Screw M6 X 16

207661646

$1.00

800

Member Fixation Plate

518329480

$10.03

815

Rivet Avibulb 3/16

293150203

$0.29

900

LH Rear Diagonal Cross Member Ass'y

518334034

$108.43

910

Deep Black, RH Rear Diag. Cross Member Ass'y

518334035

$108.43

920

Pan Head Torx Screw M8 X 12

250000887

$1.56

930

Insert

293450275

$9.89

940

Brace Rear Member

518329499

$14.42

950

Hex. Flange Screw M6 X 16

207661644

$0.61

1000

Stud M5 X 20

250300629

$1.92

1100

Upper Colomn Support

518329974

$20.74

1110

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

1120

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

1125

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1130

Hex. Flange Screw M6 X 25

207662544

$0.53

1140

Hex. Flange Screw M6 X 20

207662044

$1.66

1300

Rear Bumper | Includes 1300 to 1300b

518331570

$109.97

1300a

Cap

520001612

$8.62

1300b

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1300c

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23

3000

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$207.66

3000a

LH Footrest Ass'y | Includes 5000a to 5000a1a2

518331019

$207.66

3000b

Avex Rivet

390909100

$0.29

3010

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$207.66

3010a

RH Footrest Ass'y | Includes 5000b to 5000b1a

518331020

$207.66

3010b

Avex Rivet

390909100

$0.29

3015

Support

518329838

$30.74

3050

Torx Truss Screw M6 X 12

250000767

$1.66
