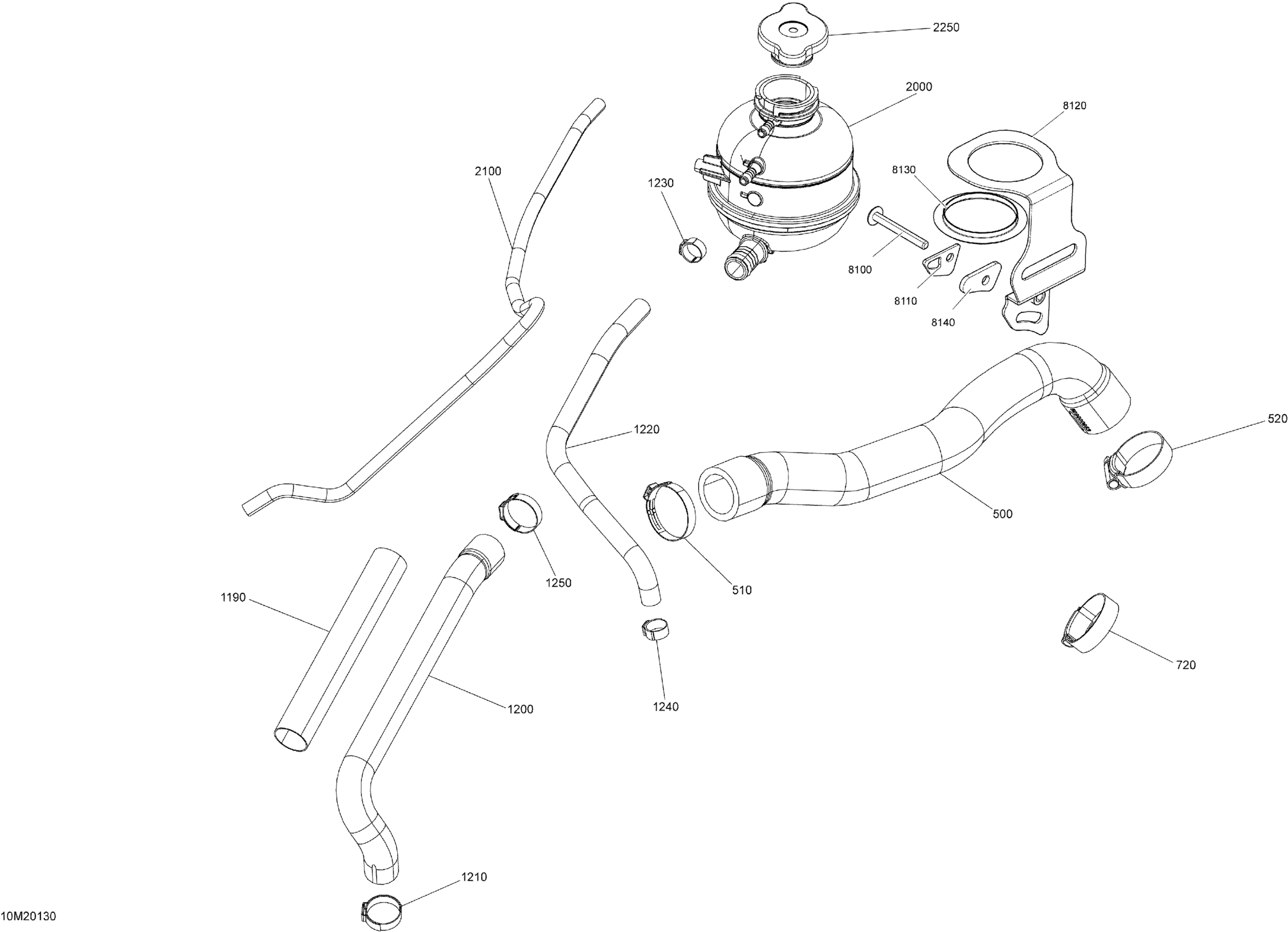

Ski-Doo 003 - MXZ 600RS - Europe, 2020 03- Cooling - System - Racing Diagram

Description

Price

500

Cooling Hose

509001089

$24.99

510

Oetiker Gear Clamp

293650254

$3.79

520

Norma Spring Clamp

293650264

$4.44

720

Norma Spring Clamp

293650264

$4.44

1190

Protector Tube 32 Mm 1000Mm Long

219704421

$26.99

1200

Hose

509001141

$23.99

1210

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

1220

Cooling Hose

509000968

$11.49

1230

Oetiker Clamp

293650046

$2.89

1240

Oetiker Clamp

293650046

$2.89

1250

Oetiker Clamp

509001041

$2.09

2000

Coolant Tank Kit

861805527

$92.99

2100

Hose 6 Mm 15000Mm Long

219704360

$132.49

2250

Radiator Pressure Cap

509000180

$20.49

8100

Torx Truss M6 X 50

250000868

$2.11

8110

Coolant Tank Support

518330617

$11.60

8120

Coolant Tank Support

509001185

$20.99

8130

Swivel Abutment

417127116

$9.39

8140

Coolant Tank Spacer

509001184

$11.60
