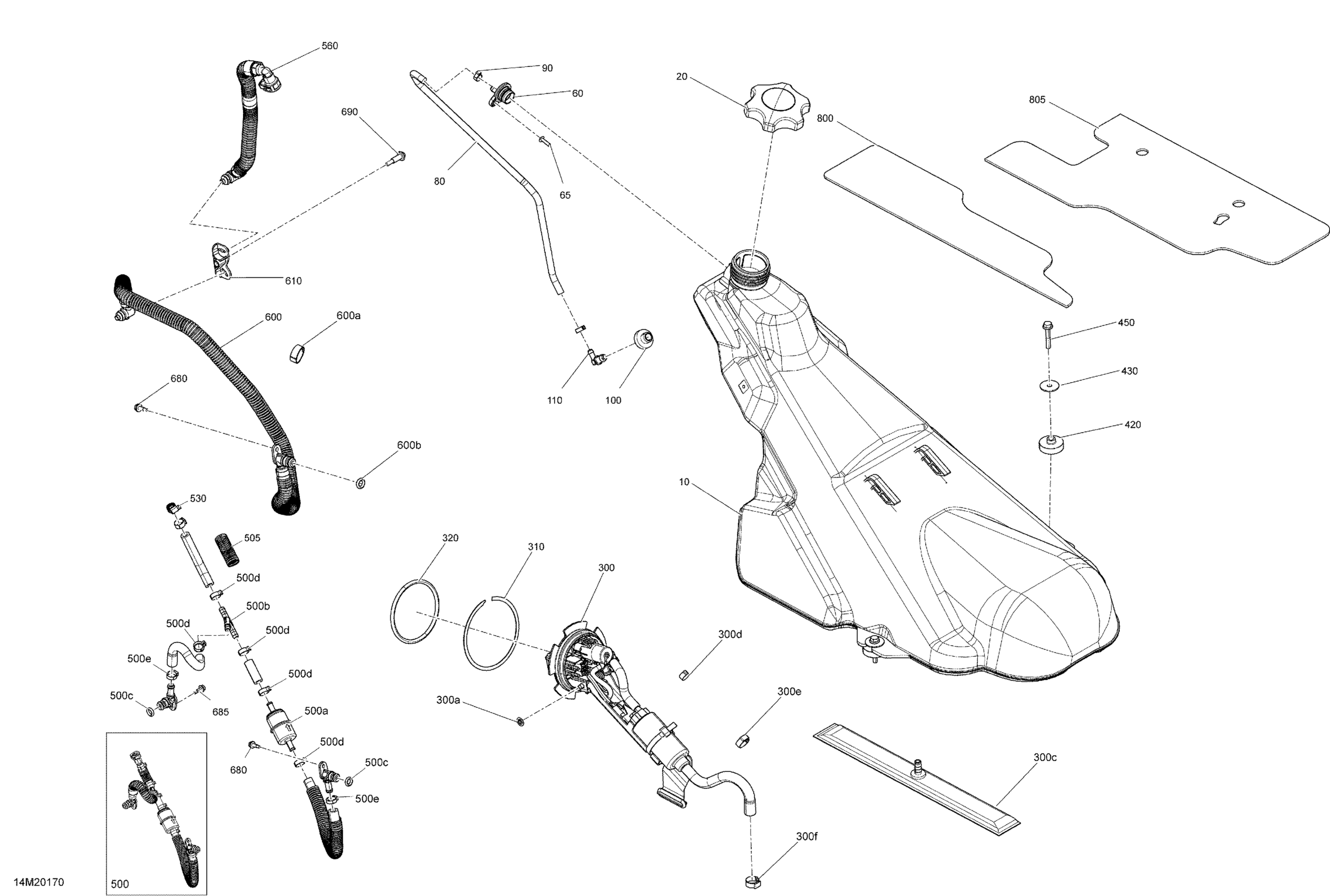

Ski-Doo MXZ 600RS - Europe, 2020 Engine - Fuel - Racing Diagram

#

Description
Price

10

Fuel Tank

513034008

$311.51

20

Fuel Tank Cap

513033944

$56.12

60

Fitting

513033864

$36.89

65

Truss Torx Screw K40 X 16

250000918

$2.06

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

90

Oeticker Clamp

293650262

$1.00

100

Grommet

709200948

$7.09

110

Male Connector

414580700

$3.38

300

Fuel Pump Ass'y | Includes 300 to 300q

513034002

$257.66

300a

Push Nut

732610072

$1.72

300c

Fuel Filter

861805584

$159.99

300d

Clamp Oetiker

293650207

$11.66

300e

Oetiker Clamp

293650125

$2.69

300f

Crimp Clamp

293650053

$2.42

310

Circlip

513033798

$12.83

320

O-Ring

513033862

$17.66

420

Socket

513034007

$7.52

430

Washer | Not Shown

503193995

$4.38

450

Hex. Flange Screw M6 X 35

207663544

$0.74

500

Hose Ass'y | Includes 500 to 500e

513034021

$71.51

500a

Fuel Filter

513034047

$20.89

500b

Y Fitting

513033926

$6.02

500c

O-Ring

513033668

$9.45

500d

Oetiker Clamp

293650125

$2.69

500e

Crimp Clamp

293650053

$2.42

505

Tubing 16 Mm 1000Mm Long

219704408

$6.23

530

Tridon Gear Clamp

293650171

$2.46

535

Crimp Clamp, 15.3-706R

293650047

$2.64

560

Hose Fuel Tank

513033931

$148.43

600

Hose Ass`y | Includes 600 to 600c This part replaces 513034001.

415130221

$148.43

600a

Ring

513033910

$6.86

600b

O-Ring

513033668

$9.45

610

Bracket

513033903

$1.26

680

Hex. Flange Screw M5 X 16

250000911

$0.70

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.07

800

Insulated Foam

513033866

$10.77

805

Insulated Foam

513033867

$15.35
