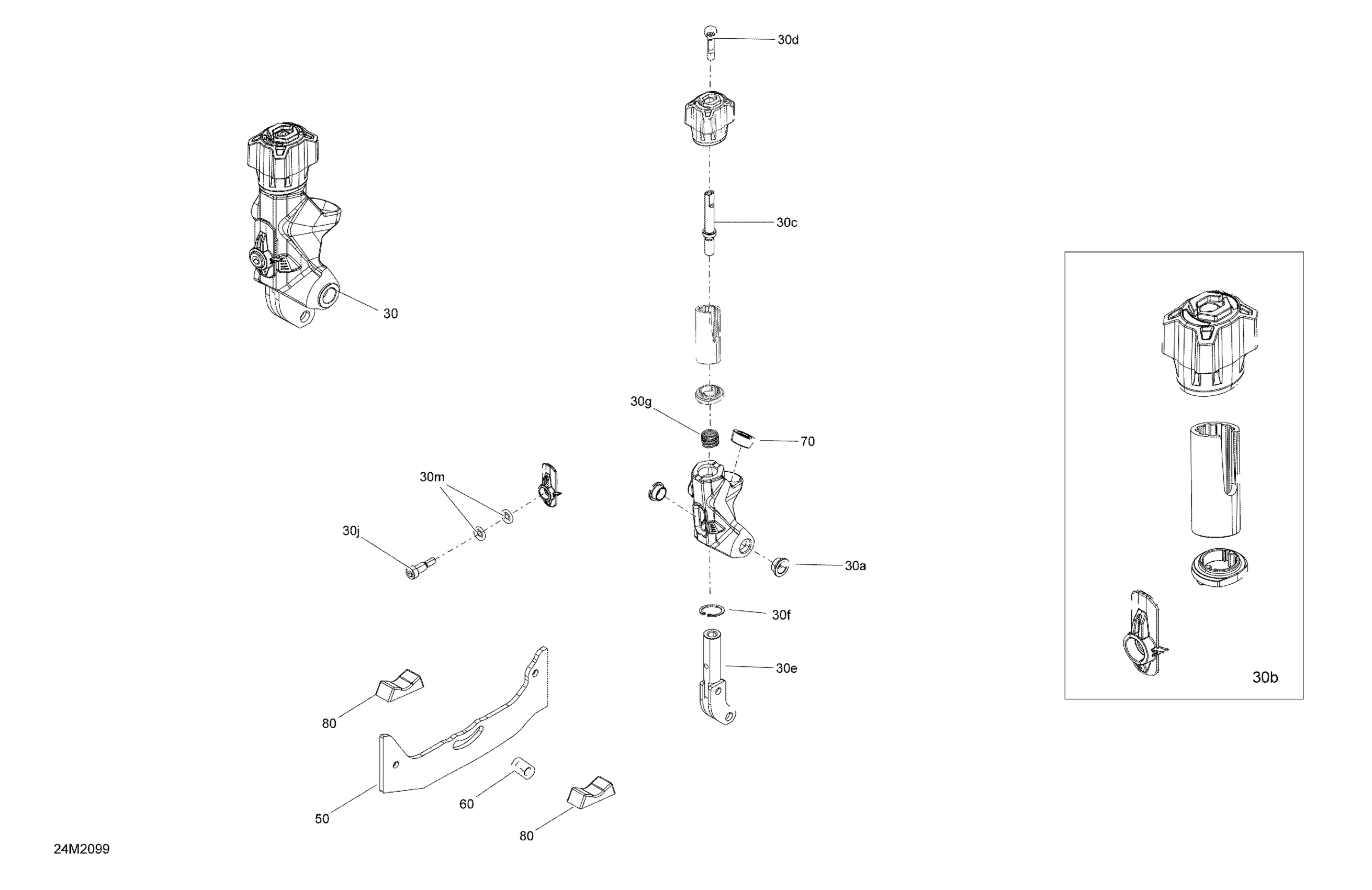

Ski-Doo 003 - MXZ 600R E-TEC - X - North America, 2020 07- Front Runner Mechanism Diagram

Description

Price

LH Runner Mechanism | Included 30 to 30m

505074118

$379.99

RH Runner Mechanism | Included 30 to 30m

505074119

$379.99

30a

Bushing

505073773

$25.99

30b

Knob Adjuster Repair Kit

415130043

$54.99

30c

Shaft

505073771

$43.99

30d

Socket Head Screw M6 X 25

250000925

$2.19

30e

Tip

505073761

$70.99

30f

Circlip

293370109

$1.99

30g

Spring

505073785

$9.69

30j

Screw

505073767

$3.38

30m

O-Ring

293300013

$8.18

Carbide Runner Kit, Ajustable TS Ski

860201178

$154.99

505073782

$11.01

Black, Rubber Grommet

505073772

$11.49

Ski Stopper

505073788

$15.72
