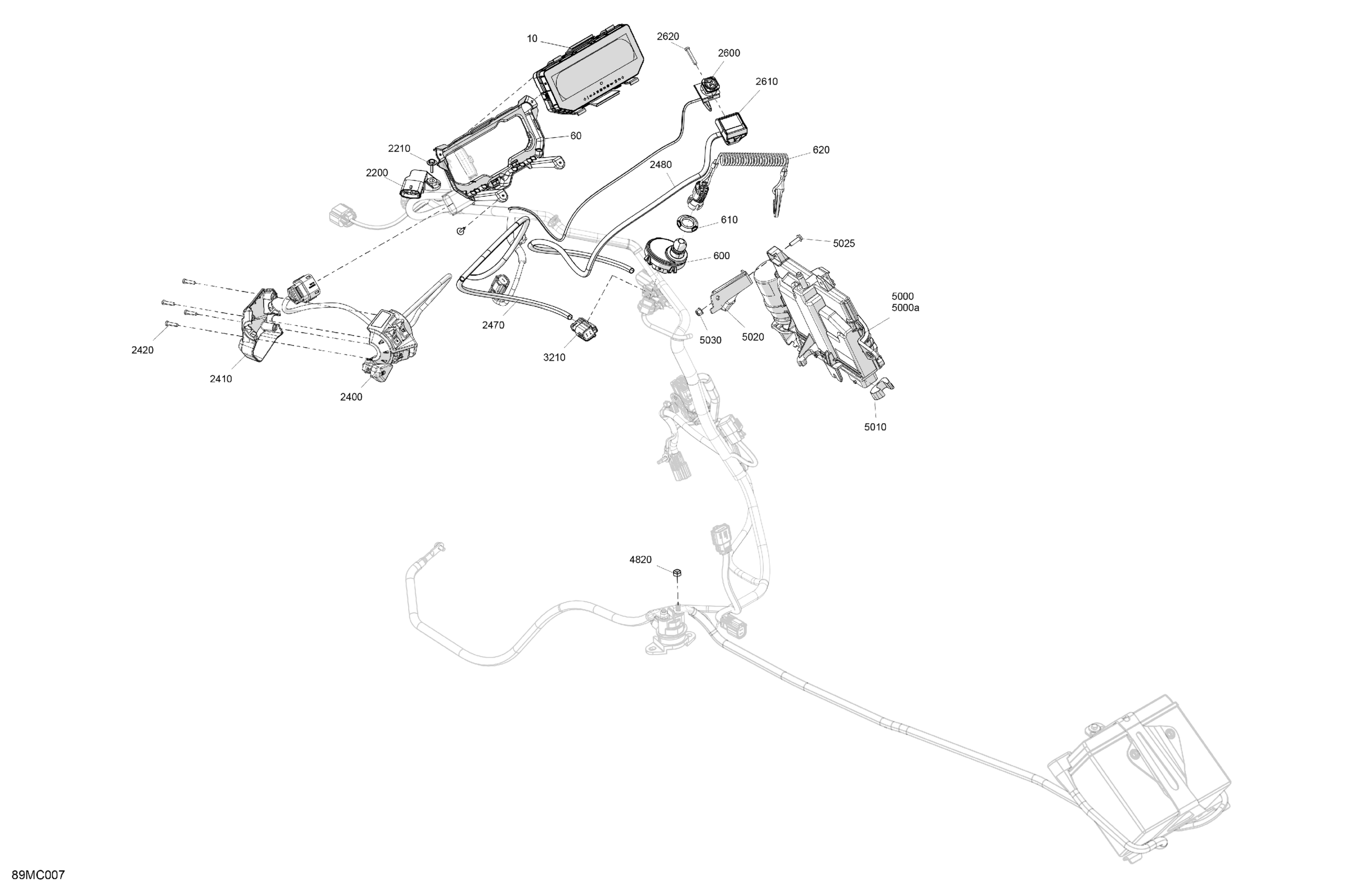

Ski-Doo 003 - MXZ 600R E-TEC - BLIZZARD - North America, 2023 08- Electric - Upper Section Diagram

Description

Price

Multifunction Gauge Full Size Mono

515178227

$559.99

Gauge Support

515178965

$6.69

600

Terminal DESS One Wire

515179305

$74.99

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2200

Pressure And Temperature Sensor

707000995

$88.99

2210

Screw M4 X 16

250000725

$3.49

2400

LH Switch Housing

515178196

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3210

4 Circuits Female Housing

515178177

$12.18

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Engine Control Module | Includes 5000 to 5000a

512061478

$589.99

5000a

Capacitor

515177272

$90.99

5010

Rubber Stopper

515178430

$2.11

5020

Module Support

515178159

$4.44

5025

Hex. Flange Screw, Scotch Grip

207551634

$2.00

5030

Flange Elastic Nut M5

233251434

$2.00
