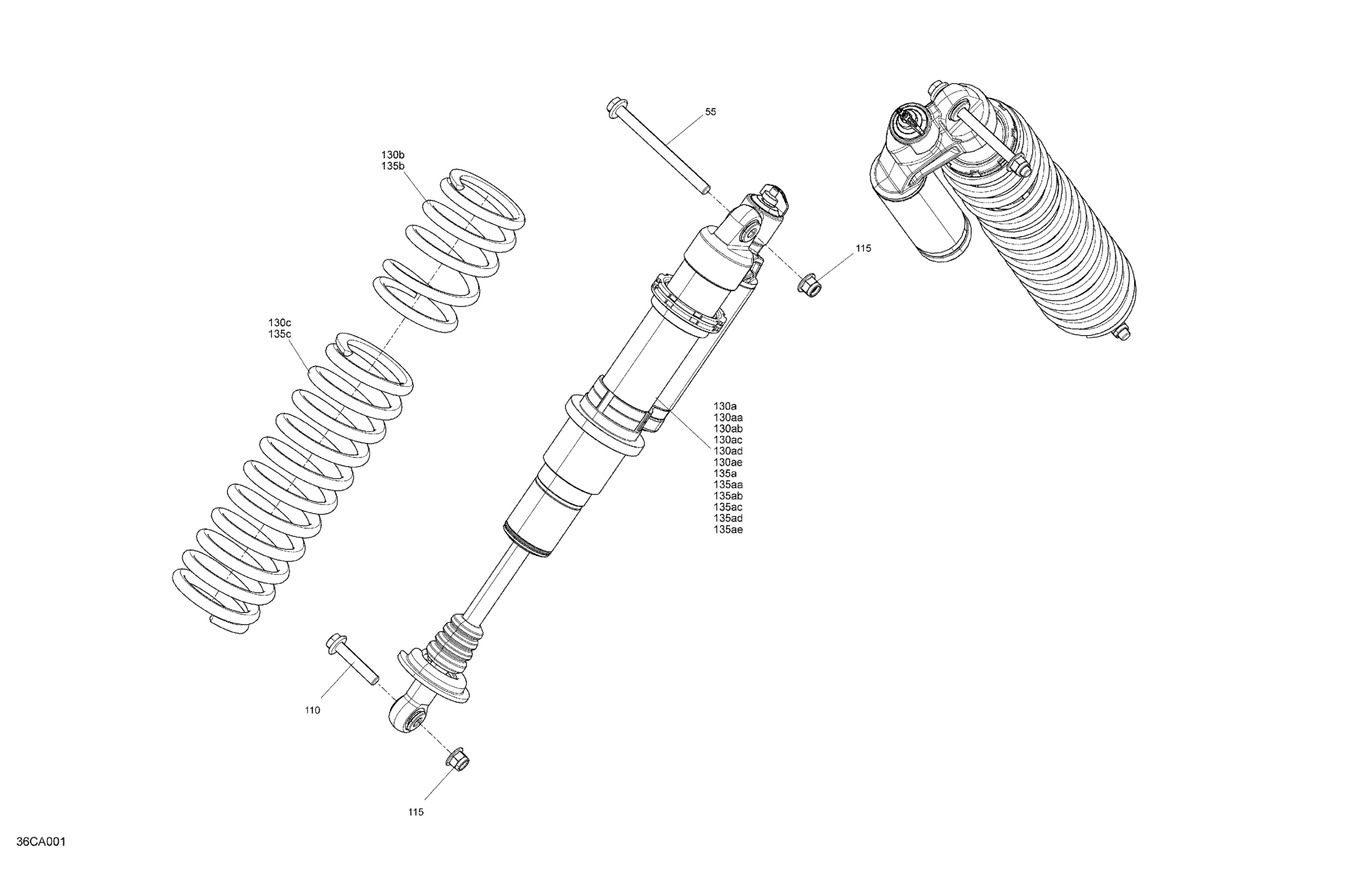

Can-Am Maverick Turbo - XRC - 2021 Suspension - Front Shocks Diagram

Description

Price

Flange Screw M12 X 145

250000861

$6.67

110

Flange Screw M12 X 60

250000857

$7.41

115

Elastic Flange Nut M12

233221466

$2.89

130a

LH Front Shock | Includes 130a to 130a5

706203319

$919.99

130aa

Spherical Bearing

715900337

$84.99

130ab

Ball Joint

706004078

$47.49

130ac

O-Ring Bushing

715900338

$12.63

130ad

Circlip

715900480

$11.49

130ae

Reducer

715900481

$27.99

130b

Chalk, Compression Spring

706204339

$100.49

130c

Chalk, Compression Spring

706204340

$126.99

135a

RH Front Shock | Includes 130a to 130a5

706203318

$919.99

135aa

Spherical Bearing

715900337

$84.99

135ab

Ball Joint

706004078

$47.49

135ac

O-Ring Bushing

715900338

$12.63

135ad

Circlip

715900480

$11.49

135ae

Reducer

715900481

$27.99

135b

Chalk, Compression Spring

706204339

$100.49

135c

Chalk, Compression Spring

706204340

$126.99
