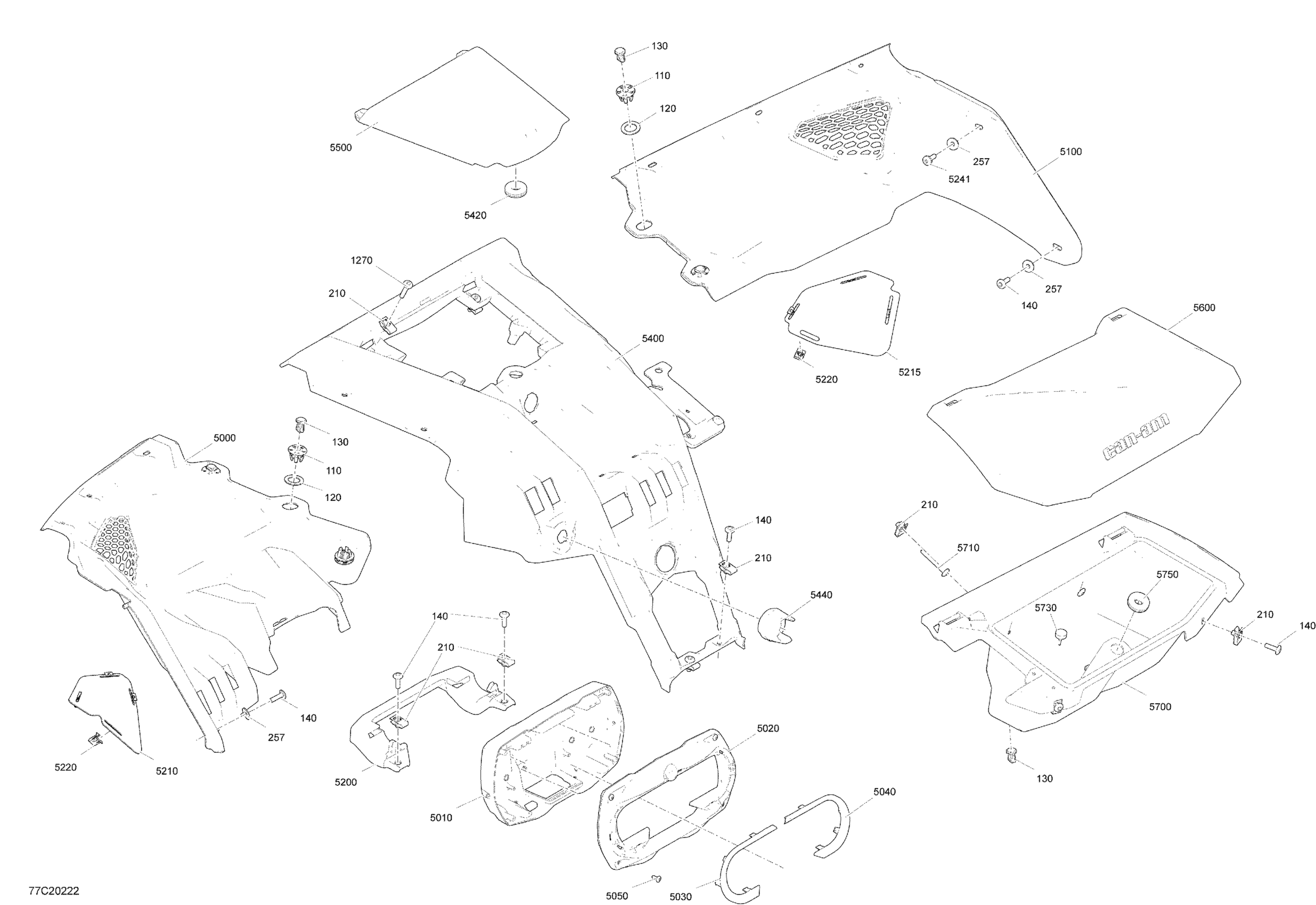

Can-Am Maverick Turbo - XRC - 2020 Cab Interior - Dashboard Section - XRC Diagram

Description

Price

110

Insert

707900133

$2.89

120

Washer

503189273

$3.28

130

Tuflok Plastic Rivet

293150230

$1.47

140

Torx Screw M6 X 20

250000722

$1.68

205

Torx Screw K50 X 16

250000720

$1.69

210

Panel Nut M6 X 1.0

250100198

$2.11

257

Stainless Steel Flat Washer

234062670

$2.11

1270

Stainless, Torx Screw M6 X 30

250000842

$2.11

5000

LH Dashboard Kit

715006587

$114.99

5010

Rear Gauge Trim

709402141

$23.99

5020

Front Gauge Trim

709402142

$22.49

5030

Deep Black, LH Trim Gauge

705012349

$5.59

5040

Deep Black, RH Trim Gauge

705012351

$5.59

5050

Torx Truss Screw K40 X 12

250000577

$2.11

5100

RH Dashboard

707900698

$40.99

5200

Dash Support

707900479

$16.49

5210

LH Speaker Cover

707900465

$28.49

5215

RH Speaker Cover

707900590

$28.49

5220

Edge Clip

517302785

$0.88

5241

Torx Screw M6 X 20

250000712

$2.11

5400

Central Dashboard

707901065

$72.99

5420

Grommet

517303756

$4.09

5440

Key Protector

707900598

$4.19

5500

Dash Cover

707900400

$26.99

5600

Glove Box Cover Kit

715004067

$55.99

5700

Glove Box

707900350

$104.99

5710

Torx Truss M6 X 50

250000868

$2.11

5730

Rubber Stopper

708000759

$4.19

5750

Grommet

517303756

$4.09
