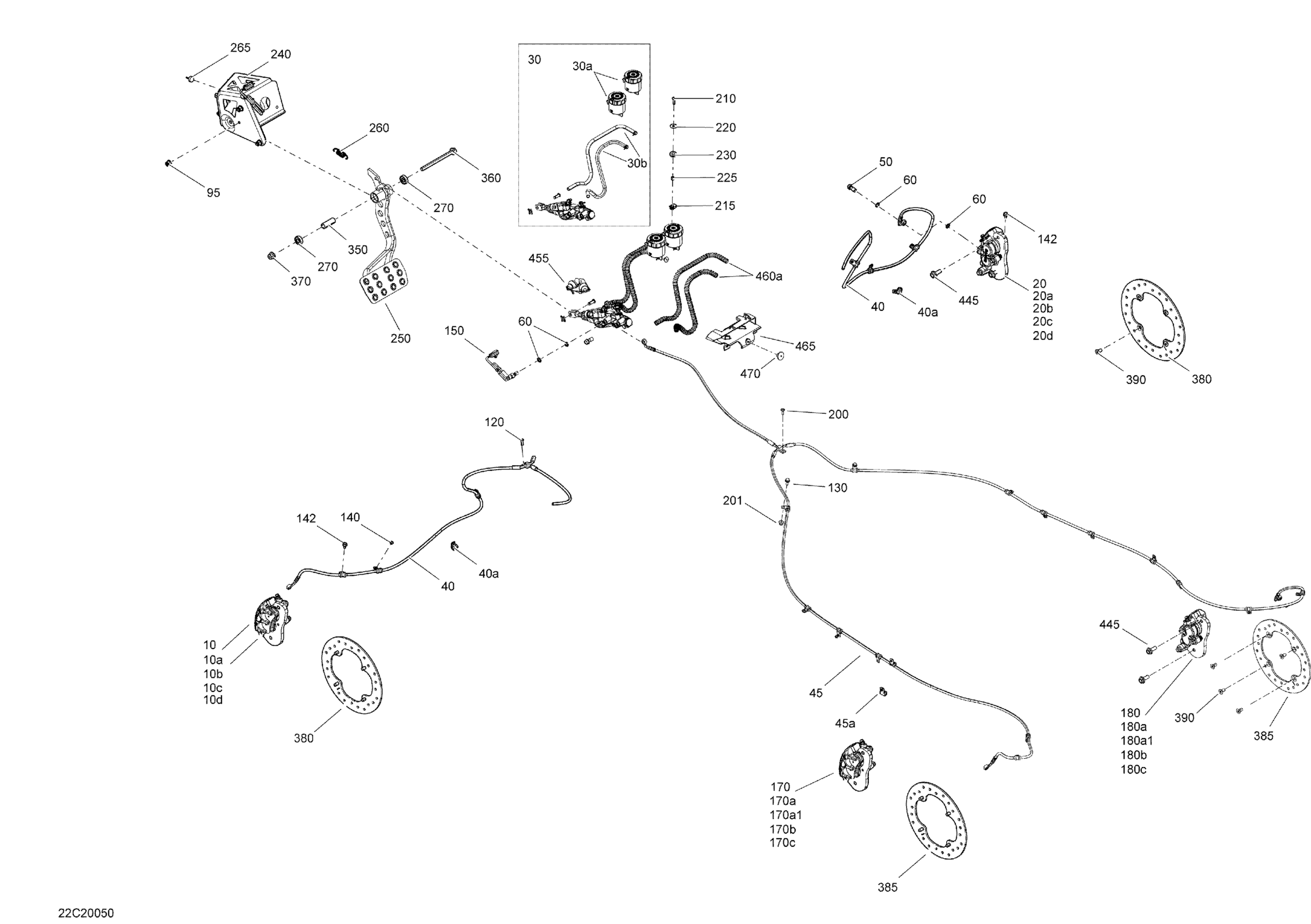

Can-Am Maverick Turbo - XRC - 2020 Brakes Diagram

#

Description
Price

10

LH Front Brake Caliper | Includes 10 to 10c

705602180

$230.74

10a

LH Brake Pads

715900379

$111.51

10b

Pin Kit | Packages STD & PRO

715900384

$10.98

10c

Bleeding Screw

705601017

$6.45

10d

Cap Spring Kit

715900385

$17.66

20

RH Front Brake Caliper | RH Front

705601888

$230.74

20a

RH Brake Pads

715900380

$110.67

20b

Pin Kit | Packages STD & PRO

715900384

$10.98

20c

Bleeding Screw

705601017

$6.45

20d

Cap Spring Kit

715900385

$17.66

30

Master Cylinder

705601863

Unavailable

30a

Oil Tank

705601020

$36.89

30b

Oil Housing Hose

705601019

$15.35

40

Front Flexible Hose | Includes 40 to 40a

705601492

$147.66

40a

Clamp

293650256

$4.36

45

Rear Flexible Hose | Includes 45 to 45a

705601493

$203.05

45a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Copper Washer

705601628

$4.34

95

Hex. Elastic Flange Nut M8

233281416

$1.25

120

Torx Screw M6 X 16 | Not shown

235661644

$4.39

130

Hex. Flange Screw M6 X 16

207661644

$0.61

140

Pop Rivet 3/16"

390402200

$0.26

142

Hex. Flange Screw M6 X 10

210261040

$1.25

150

Brake Switch

705601250

$59.97

170

LH Rear Brake Caliper | Includes 170 to 170d

705602186

$294.49

170a

LH Brake Pads

715900386

$110.67

170a1

Pin Kit | Packages STD & PRO

715900384

$10.98

170a1

Pin Kit | Packages STD & PRO

715900384

$10.98

170b

Bleeding Screw

705601017

$6.45

170c

Cap Spring Kit

715900385

$17.66

180

RH Rear Brake Caliper | Includes 170 to 170d

705601892

$294.49

180a

RH Brake Pads

715900387

$110.67

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180a1

Pin Kit | Packages STD & PRO

715900384

$10.98

180b

Bleeding Screw

705601017

$6.45

180c

Cap Spring Kit

715900385

$17.66

200

Torx Screw K50 X 16

250000720

$1.39

201

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

210

Torx Screw M5 X 25

250000762

$1.74

215

Panel Nut M5 X 0.8

250000958

$3.48

220

Flat Washer

250200040

$1.82

225

Bushing

293900112

$10.14

230

Grommet

414036300

$2.22

240

Brake Support Plate Ass'y

705207621

$50.74

250

Brake Pedal

705601676

$64.58

260

Brake Pedal Spring

705600792

$9.22

265

Rubber Stopper

708000759

$3.61

270

Bearing

705600458

$7.03

350

Bushing | RT

705601275

$14.37

360

Hex. Flange Screw, M10 X 130

230603046

$6.08

370

Hex. Flange Elastic Nut M10

233201436

$1.74

380

Brake Disc

705601533

$113.82

385

Brake Disc

705601376

$59.97

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

445

Hex. Flange Screw M10 X 25

207502546

$1.74

455

Hose Support

705601750

$4.60

460a

Tubing 10 MM 1000MM Long

219704407

$2.20

465

Oil Tank Support

705601815

$4.95

470

Pop Rivet 3/16"

293150103

$0.54
