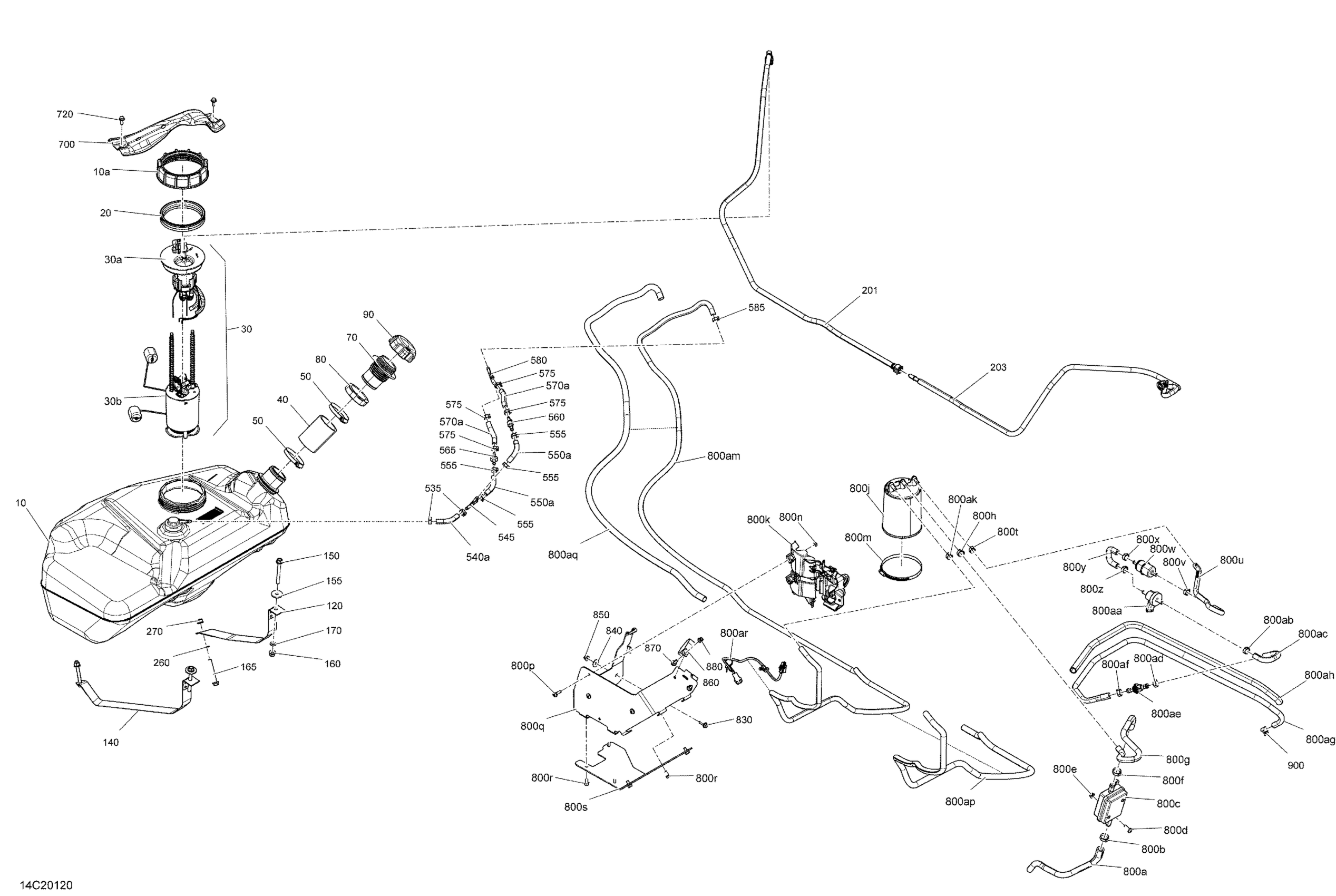

Can-Am Maverick Turbo - XRC - 2020 Fuel - EVAP Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$273.85

10a

Special Nut M130

250100062

$20.12

20

Gasket

293250173

$17.88

30

Fuel Pump | Includes 30 to 30b

709001056

$353.87

30a

Fuel Filter

270600113

$31.31

30b

Fuel Sender

715900424

$130.57

40

Filler Neck

709000748

$28.33

50

Norma Clamp

293650081

$11.33

70

Filler Neck

709000867

$14.33

80

Filler Neck Nut, Fuel

211100012

$11.51

90

Fuel Cap

709000868

$29.07

120

Fuel Tank Strap

709000910

$38.03

140

Fuel Tank Strap

709000911

$38.03

150

Screw Hex. FLange M8x75

250001084

$0.79

155

Flat Washer M8

250200187

$2.01

160

Hex. Flange Elastic Nut M8

233281414

$1.31

165

Hex. Flange Screw, M8 X 65

207686544

$11.18

170

Flat Washer 8 mm

234081410

$0.79

201

Formed Hose

709000987

$39.49

203

Formed Hose

709001059

$41.76

260

Flat Washer 8 mm

234081410

$0.79

270

Hex. Flange Elastic Nut M8

233281414

$1.31

535

Oetiker Clamp

293650042

$2.82

540a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

545

Y-Fitting

293710059

$9.40

550a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

555

Oetiker Clamp

293650042

$2.82

560

Check Valve

513033469

$29.07

565

Check Valve

275500398

$9.84

570a

Hose 6.35Mm 5000Mm Long

219704611

Unavailable

575

Oetiker Clamp

293650042

$2.82

580

Y-Fitting

293710059

$9.40

585

Oetiker Clamp

293650042

$2.82

700

Connector Protector

707900594

$18.63

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

800a

Formed Hose

709000869

$14.33

800b

Oetiker Clamp

293650186

$3.82

800c

Air Filter

709000524

$41.01

800d

Torx Screw M6 X 20

250000712

$2.00

800e

Hex. Flange Elastic Nut M6

233261494

$1.45

800f

Oetiker Clamp

293650186

$3.82

800g

Formed Hose

709000870

$14.90

800h

Crimp Clamp

293650053

$2.78

800j

Charcoal Canister This part replaces 709001294.

709001673

$79.07

800k

Canister Support | EVAP Models

709000851

$4.40

800m

Tridon Clamp

293650054

$8.63

800n

Hex. Elastic Stop Nut M6

232561600

$1.06

800p

Torx Screw M6 X 20

250000712

$2.00

800q

Primary Support

709000955

$94.00

800r

Hex. Flange Screw M6 X 12

210261250

$1.79

800s

Secondary Support

709000956

$17.13

800t

Oetiker Clamp

293650042

$2.82

800u

Formed Hose

709000853

$14.33

800v

Oetiker Clamp

293650046

$2.67

800w

Fuel Filter

513034047

$35.99

800x

Crimp Clamp, 15.3-706R

293650047

$3.03

800y

Formed Hose

709000857

$14.33

800z

Crimp Clamp, 15.3-706R

293650047

$3.03

800aa

Bleed Valve

709000443

$65.64

800ab

Crimp Clamp, 15.3-706R

293650047

$3.03

800ac

Formed Hose

709000873

$14.90

800ad

Crimp Clamp

293650053

$2.78

800ae

Check Valve

275500941

$23.10

800af

Crimp Clamp

293650053

$2.78

800ag

Hose 3000Mm Long

219704612

$77.58

800ah

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800ak

Oetiker Clamp

293650046

$2.67

800am

Hose | Includes 800am to 800aq

709000877

Unavailable

800ap

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800aq

Tubing 16 Mm 1000Mm Long

219704408

$7.15

800ar

Purge Valve Cable

710005718

$18.63

830

Hex. Flange Screw M6 X 20

207662054

$0.96

840

Flat Washer M6.6 X 22

250200162

$2.19

850

Hex. Flange Elastic Nut M6

233261494

$1.45

860

Open Clamp

293850132

$13.51

870

Hex. Flange Screw M6 X 20

207662054

$0.96

880

Hex. Flange Elastic Nut M6

233261494

$1.45

900

Norma Spring Clamp

293650214

$14.90
