Description

Price

10

Seat Shell Kit

708002065

$244.99

20

Backrest Cushion

708002676

$439.99

30

Seat Base Cushion

708002678

$239.99

35

Stopper

708002670

$3.89

40

Headrest

708002131

$104.99

45

Torx Screw Truss Head K50X20 T20

250000760

$2.11

50

Velcro Tape

708002535

$4.14

70

Adjustable Trolley Kit

703500997

$63.99

75

Carriage

708003450

$63.99

80

Seat Rail

708003061

$53.99

90

Seat Rail

708003064

$53.99

100

Adjustment Handle

708002655

$16.99

130

Passenger 4-Point Harness

715005022

$308.99

130a

LH Shoulder Pad

708002824

$37.99

130b

RH Shoulder Pad

708002825

$37.99

135

Elastic Flange Nut M12

233221416

$2.85

136

Safety Belt screw

708002504

$5.29

137

Position Washer

708000891

$1.29

140

LH Front Safety Belt 4 Points

708002917

$264.99

140a

LH Shoulder Pad

708002824

$37.99

140b

RH Shoulder Pad

708002825

$37.99

180

Elastic Flange Nut M12

233221416

$2.85

190

Hex. Flange Screw M8 X 55

207685554

$5.29

195

Elastic Flange Nut M8

233281464

$1.01

200

Hex. Flange Screw M6 X 50

207665054

$4.76

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

220

Wheel

708002134

$15.99

240

Rear Bushing

708002299

$10.99

250

Plate | Includes 250 to 250a

708003680

$2.69

270

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

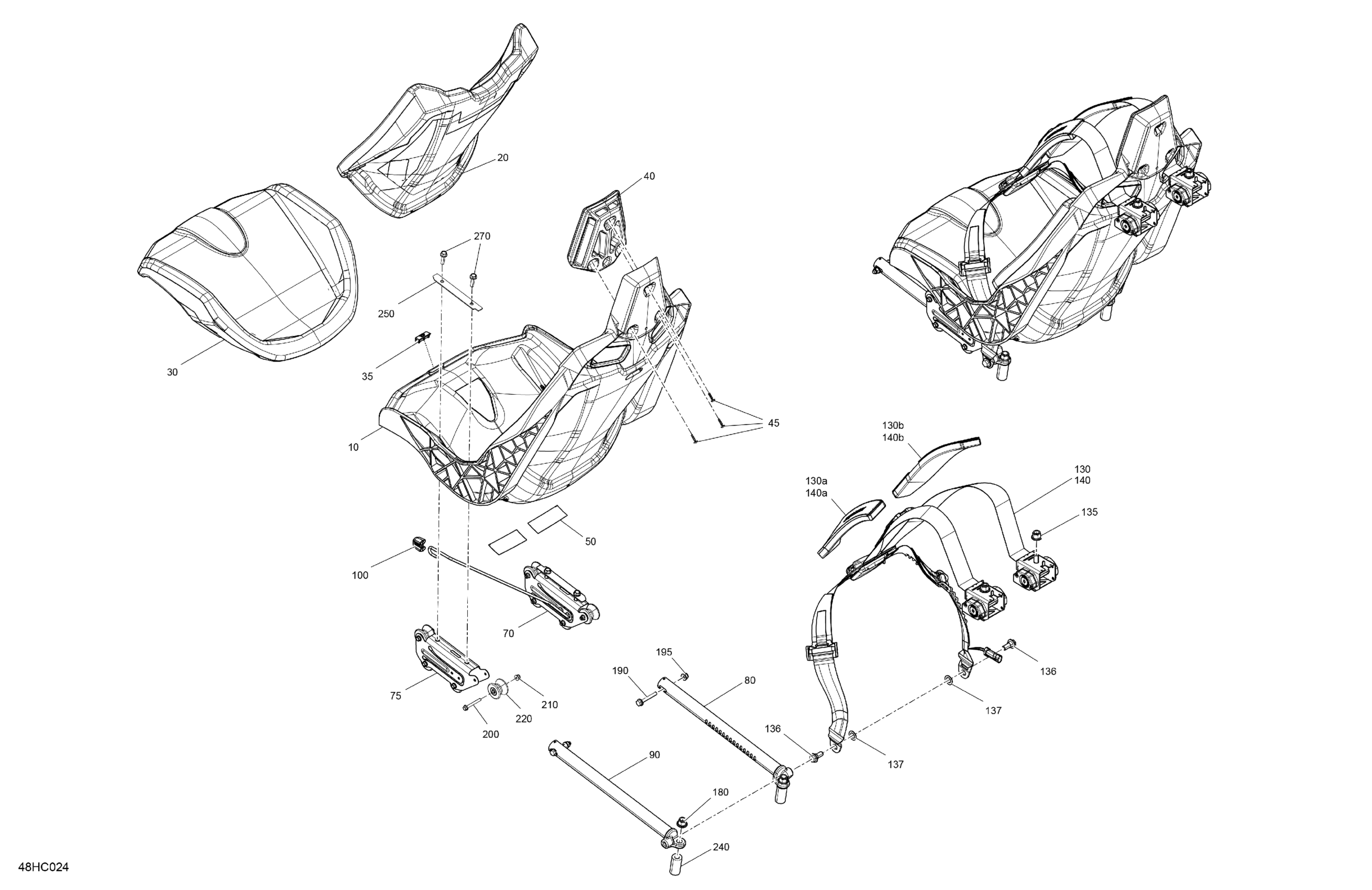

Can-Am 003 - Maverick Turbo RR - XRS STD - CE, 2023 07- Body - Seat Diagram

Seat Shell Kit

Backrest Cushion

Seat Base Cushion

Stopper

Headrest

Torx Screw Truss Head K50X20 T20

Velcro Tape

Adjustable Trolley Kit

Carriage

Seat Rail

Seat Rail

Adjustment Handle

Passenger 4-Point Harness

LH Shoulder Pad

RH Shoulder Pad

Elastic Flange Nut M12

Safety Belt screw

Position Washer

LH Front Safety Belt 4 Points

LH Shoulder Pad

RH Shoulder Pad

Elastic Flange Nut M12

Hex. Flange Screw M8 X 55

Elastic Flange Nut M8

Hex. Flange Screw M6 X 50

Hex. Flange Elastic Nut M6 x 1.0

Wheel

Rear Bushing

Plate | Includes 250 to 250a

Hex. Flange Screw M8 X 30, Scotch Grip
