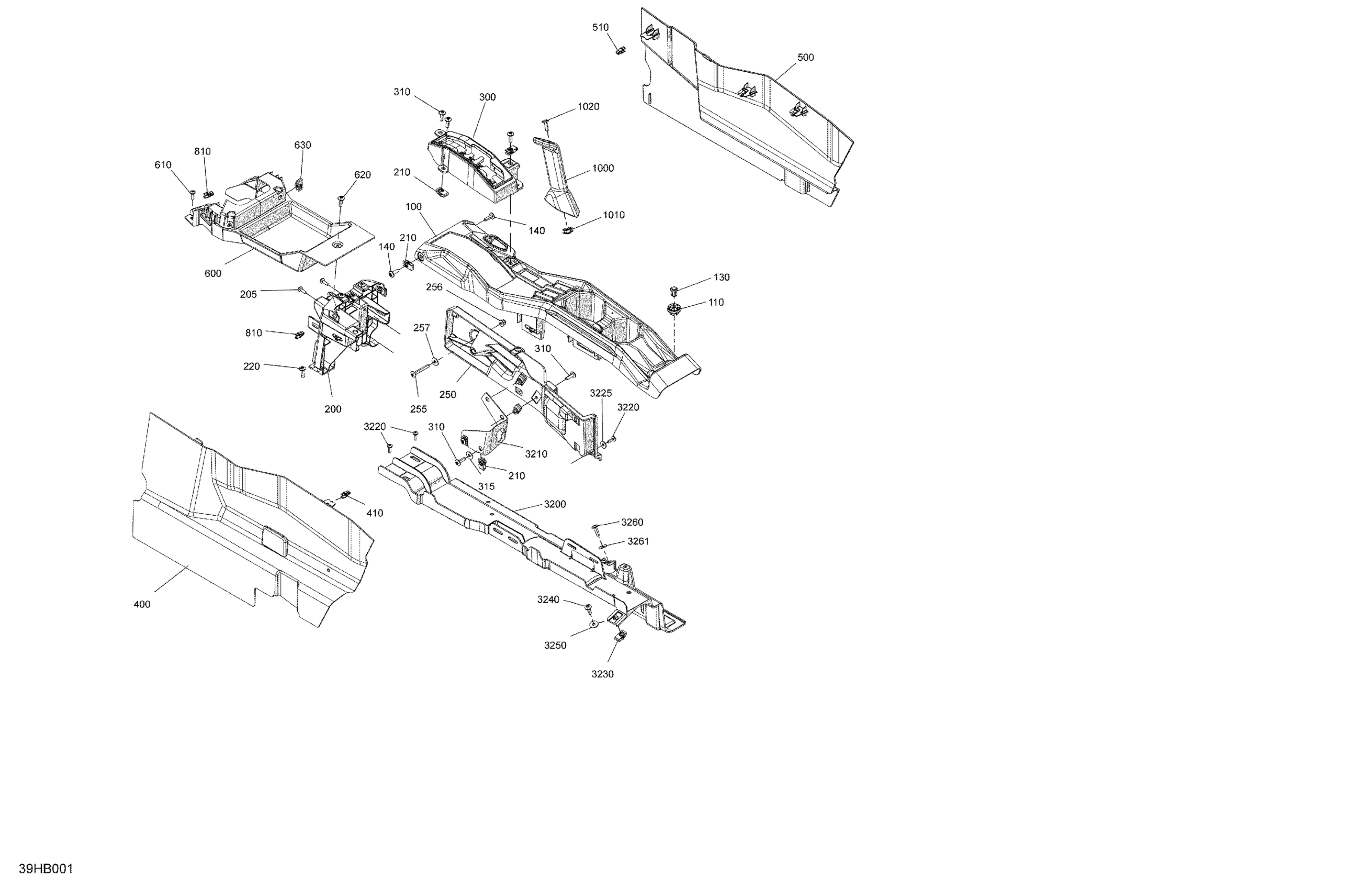

Can-Am Maverick Turbo RR - XRS - CE, 2022 Cab Interior - Center Console Diagram

Description

Price

100

Front Console

707900395

Unavailable

110

Insert

707900133

$2.89

130

Tuflok Plastic Rivet

293150230

$1.47

140

Torx Screw M6 X 20

250000722

$1.68

200

Front Central Console Support

707900459

$65.99

205

Torx Screw K50 X 16

250000720

$1.69

210

Panel Nut M6 X 1.0

250100198

$2.11

220

Torx Screw M6 X 20

250000722

$1.68

250

Shifter Gate Support

707900488

$26.99

255

Torx Screw M6 X 45

250000748

$1.90

256

Hex. Flange Elastic Nut M6

233261466

$2.00

257

Stainless Steel Flat Washer

234062670

$2.11

300

Lever Indicator

707900644

$24.99

310

Torx Screw M6 X 20

250000722

$1.68

315

Stainless Steel Flat Washer

234062670

$2.11

400

LH Lateral Dash Panel

707900396

$73.99

410

Clip

705010721

$2.61

500

RH Lateral Dash Panel

707900397

$73.99

510

Clip

705010721

$2.61

600

Front Top Console

707900460

Unavailable

610

Torx Screw K50 X 16

250000720

$1.69

620

Torx Screw M6 X 20

250000722

$1.68

630

Panel Nut M6 X 1.0

250100198

$2.11

810

Clip

705010721

$2.61

1000

Passenger Handle

707900011

$13.75

1010

Connector Tube

707900048

$6.19

1020

Torx Screw M6 X 20

250000722

$1.68

3200

Central Support Hose

707900710

$49.99

3210

Cable Support

707900478

$11.99

3220

Torx Screw K50 X 16

250000720

$1.69

3225

Washer M5

250200025

$0.74

3230

Panel Nut M6 X 1.0

250100198

$2.11

3240

Torx Screw M6 X 20

250000722

$1.68

3250

Stainless Steel Flat Washer

234062670

$2.11

3260

Torx Screw M6 X 20

250000722

$1.68

3261

Stainless Steel Flat Washer

234062670

$2.11
