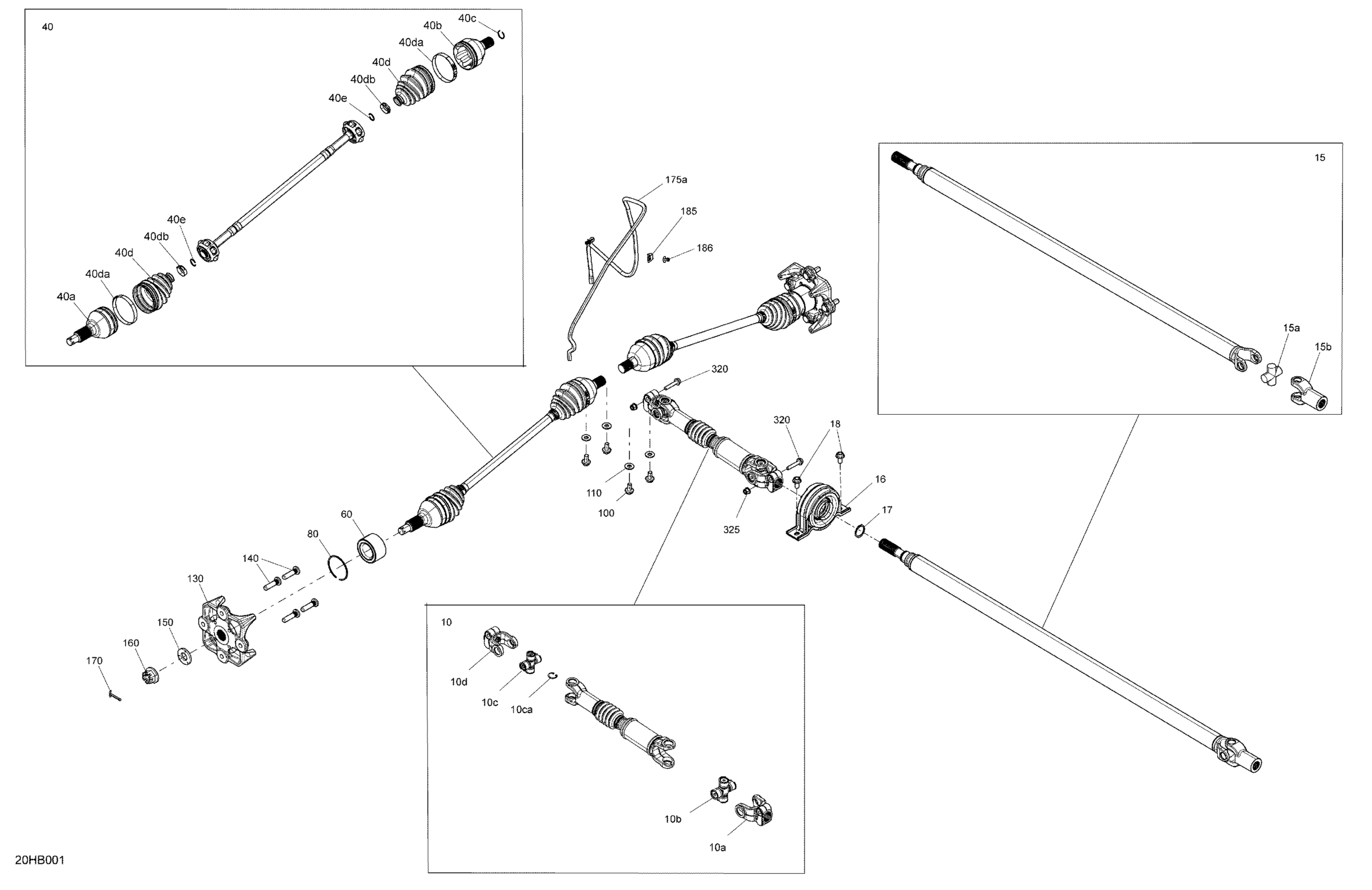

Can-Am Maverick Turbo RR - XRS - CE, 2022 Drive - Front - Common Parts Diagram

#

Description
Price

10

Drive Axle Ass'y

705402948

$206.49

10a

Yoke

715900704

$35.99

10b

Universal Joint Kit

715900705

$52.99

10c

Universal Joint Ass'y | Includes 100b to 100b1

219800424

$46.49

10ca

Circlip | Not shown

219800423

$1.37

10d

Yoke

715900914

$30.49

15

Drive Axle Ass'y

705403004

$248.99

15a

U-Joint Cross Kit | Engine 450

715900435

$78.49

15b

Yoke

715900401

$35.99

16

Ball Bearing Ass'y

705403522

$47.49

17

Snap Ring

293370098

$3.17

18

Hex. Flange Screw M10 X 20

207502046

$2.11

40

Performance CV Axle | Includes 40 to 40f

705402048

$275.49

40a

CV Joint

715900574

$259.49

40b

Plunging Joint

715900575

$259.49

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40da

Oetiker Clamp, Large

715900260

$10.33

40db

Oetiker Clamp, Small

715900261

$5.29

40e

O-ring

715900580

$2.51

60

Ball Bearing

293350151

$71.49

80

Internal Retaining Ring

293370169

$1.37

100

Hex. Flange Screw M10 X 25

207502546

$2.11

110

Conical Spring Washer 10 mm

234201474

$1.69

130

Wheel Hub

705502122

$116.49

140

Wheel Stud M12X1.5

250300625

$3.91

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

175a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

185

Open Clamp

518321570

$7.69

186

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
