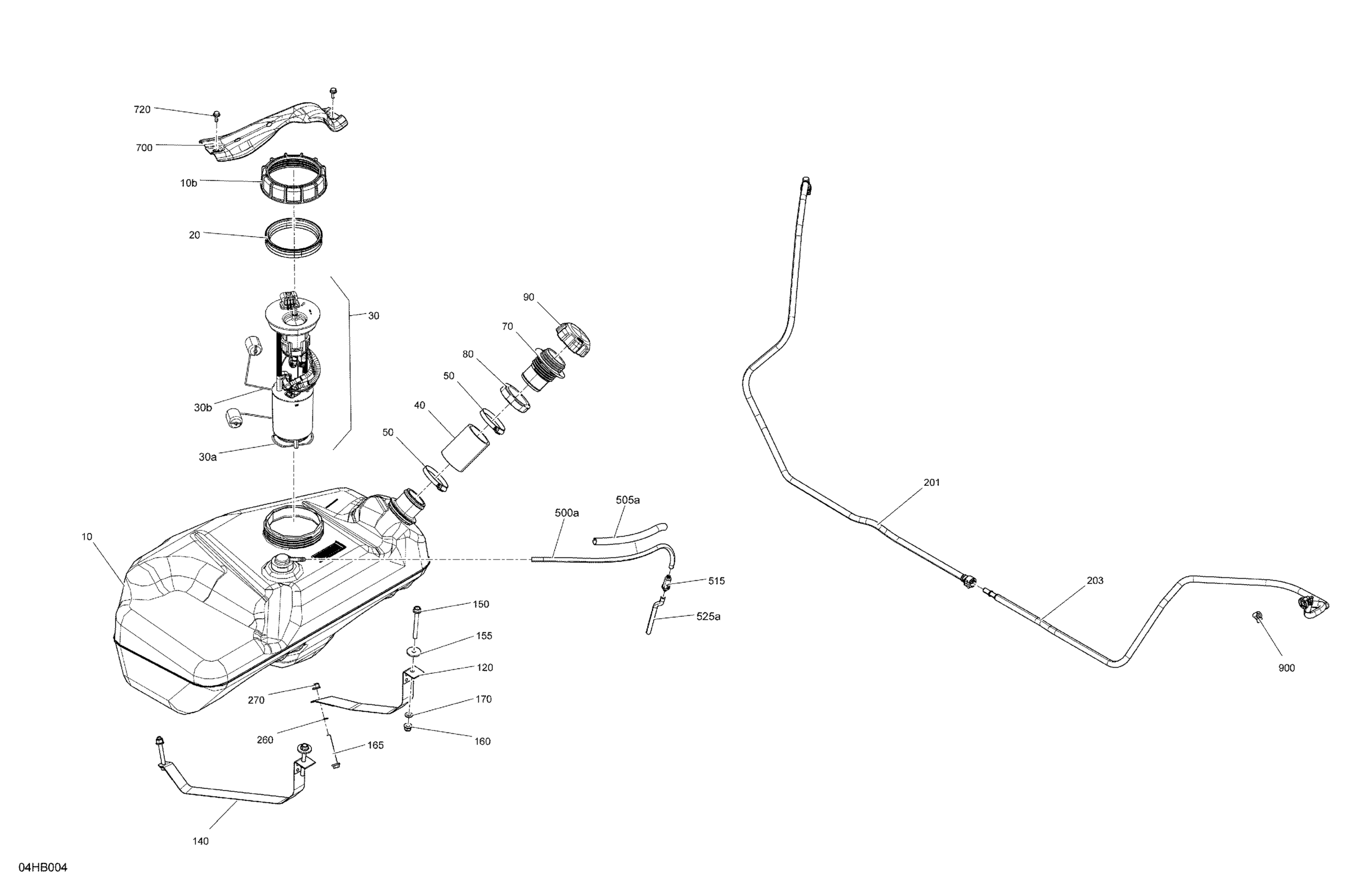

Can-Am 003 - Maverick Turbo RR - XRS - CE, 2022 02- Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$309.99

10b

Special Nut M130

250100062

$21.99

20

Gasket

293250173

$18.49

30

Fuel Pump | Includes 30 to 30b

709001057

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Filler Neck

709000748

$31.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000867

$15.36

80

Fuel Filler Neck Nut

293600206

$13.18

90

Fuel Cap

709000868

$32.99

120

Fuel Tank Strap

709000910

$41.49

140

Fuel Tank Strap

709000911

$41.49

150

Screw Hex. FLange M8x75

250001084

$0.83

155

Flat Washer M8

250200187

$2.11

160

Hex. Flange Elastic Nut M8

233281414

$1.47

165

Hex. Flange Screw, M8 X 65

207686544

$13.16

170

Flat Washer 8 mm

234081410

$0.83

201

Formed Hose

709000987

$39.49

203

Formed Hose

709001059

$45.49

260

Flat Washer 8 mm

234081410

$0.83

270

Hex. Flange Elastic Nut M8

233281414

$1.47

500a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

505a

Tubing 10 MM 1000MM Long

219704407

$2.79

515

Filter

709001120

$8.05

525a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

700

Connector Protector

707900594

$22.49

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

900

Norma Spring Clamp

293650214

$15.89
