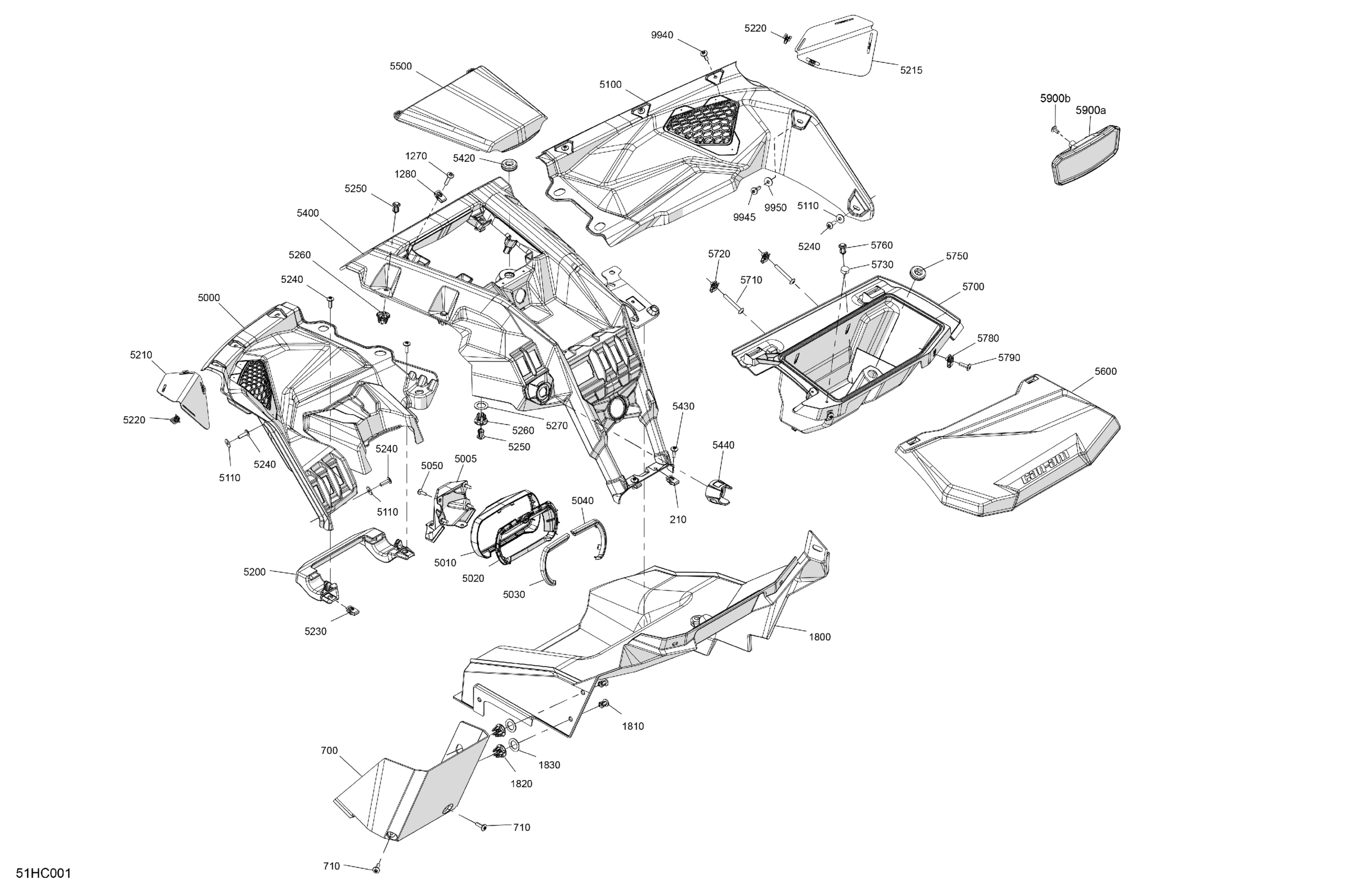

Can-Am Maverick Turbo RR - RS - 2023 Cab Interior - Dashboard Diagram

#

Description
Price

210

Panel Nut M6 X 1.0

250100198

$1.73

700

Cover Central Console

707900473

$23.85

710

Torx Screw M6 X 20

250000722

$1.34

1270

Stainless, Torx Screw M6 X 30

250000842

$1.74

1280

Panel Nut M6 X 1.0

250100198

$1.73

1800

RH Lower Dashboard

707901064

$68.63

1810

Tuflok Plastic Rivet

293150230

$1.21

1820

Insert

707900133

$2.89

1830

Washer

503189273

$3.10

5000

LH Dashboard Kit

715006587

$102.21

5005

Cluster Support

709402140

$15.64

5010

Rear Cluster Cap

709402092

$12.61

5020

Gauge Trim

709402742

$12.30

5030

Deep Black, LH Trim Gauge

709402210

$25.34

5040

Deep Black, RH Trim Gauge

709402211

$25.34

5050

Torx Screw K50 X 16

250000720

$1.39

5100

RH Dashboard

707900698

$36.54

5110

Stainless Steel Flat Washer

234062670

$1.74

5200

Dash Support

707900479

$13.52

5210

LH Speaker Cover

707900465

$26.09

5215

RH Speaker Cover

707900590

$26.09

5220

Edge Clip

517302785

$0.70

5230

Panel Nut M6 X 1.0

250100198

$1.73

5240

Torx Screw M6 X 20

250000722

$1.34

5250

Tuflok Plastic Rivet

293150230

$1.21

5260

Insert

707900133

$2.89

5270

Washer

503189273

$3.10

5400

Central Dashboard

707901065

$59.67

5420

Grommet

517303756

$3.15

5430

Torx Screw M6 X 20

250000722

$1.34

5440

Key Protector

707900598

$4.04

5500

Dash Cover

707900400

$23.85

5600

Glove Box Cover Kit

715004067

$49.97

5700

Glove Box

707901133

$85.04

5710

Torx Truss M6 X 50

250000868

$1.74

5720

Panel Nut M6 X 1.0

250100198

$1.73

5730

Rubber Stopper

708000759

$3.61

5750

Grommet

517303756

$3.15

5760

Tuflok Plastic Rivet

293150230

$1.21

5780

Panel Nut M6 X 1.0

250100198

$1.73

5790

Torx Screw M6 X 20

250000722

$1.34

5900a

Central Mirror

707900502

$52.96

5900b

Torx Truss Screw M6 X 12

250000767

$1.66

9940

Torx Screw M6 X 20

250000722

$1.34

9945

Torx Screw M6 X 20

250000712

$1.74

9950

Stainless Steel Flat Washer

234062670

$1.74
