Partiron

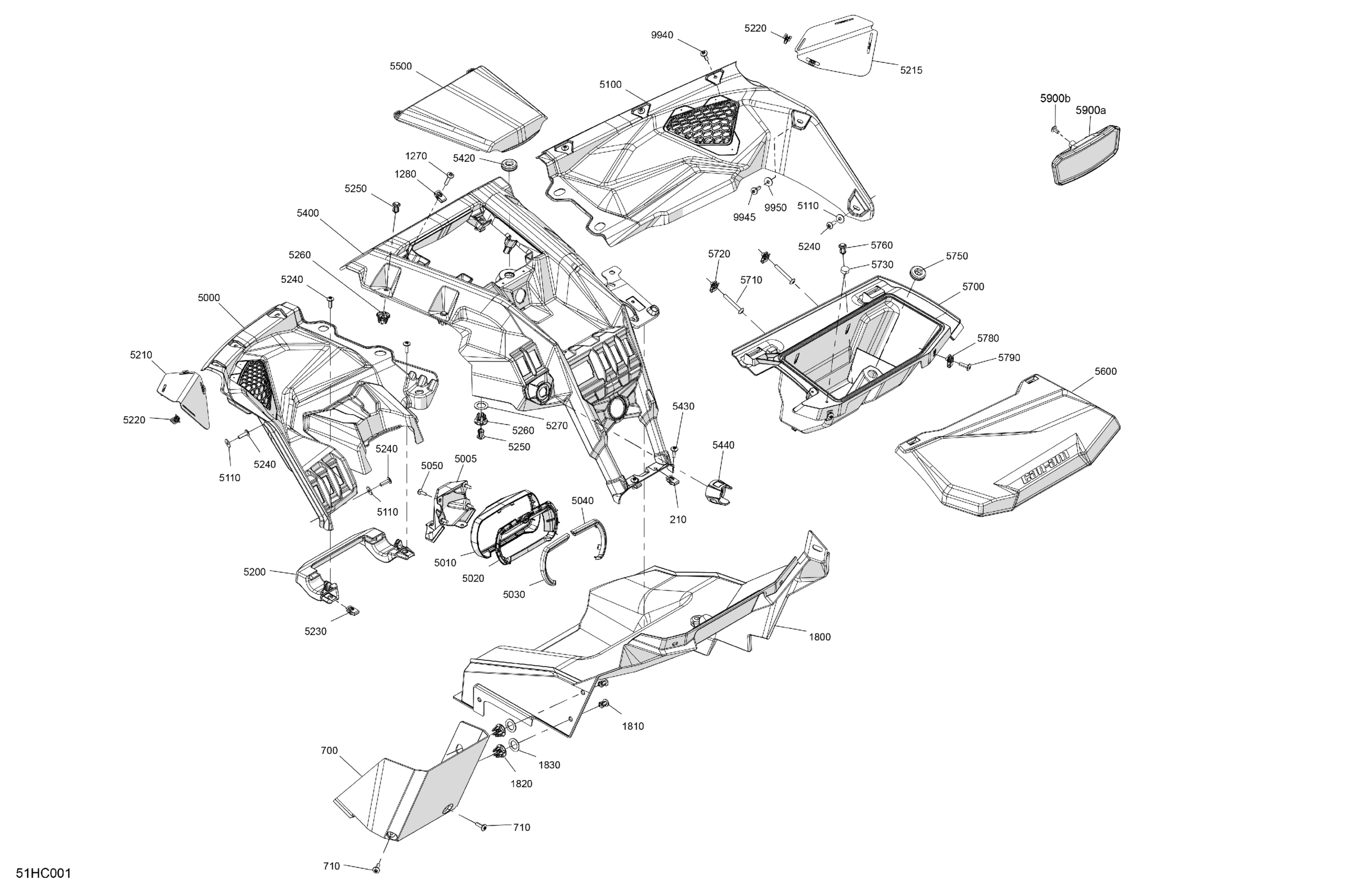

Can-Am Maverick Turbo RR - RS - 2023 Cab Interior - Dashboard Diagram

#

Description
Price

210

Panel Nut M6 X 1.0

250100198

$2.11

700

Cover Central Console

707900473

$26.99

710

Torx Screw M6 X 20

250000722

$1.68

1270

Stainless, Torx Screw M6 X 30

250000842

$2.11

1280

Panel Nut M6 X 1.0

250100198

$2.11

1800

RH Lower Dashboard

707901064

$76.99

1810

Tuflok Plastic Rivet

293150230

$1.47

1820

Insert

707900133

$2.89

1830

Washer

503189273

$3.28

5000

LH Dashboard Kit

715006587

$114.99

5005

Cluster Support

709402140

$17.49

5010

Rear Cluster Cap

709402092

$13.99

5020

Gauge Trim

709402742

$13.99

5030

Deep Black, LH Trim Gauge

709402210

$28.99

5040

Deep Black, RH Trim Gauge

709402211

$28.99

5050

Torx Screw K50 X 16

250000720

$1.69

5100

RH Dashboard

707900698

$40.99

5110

Stainless Steel Flat Washer

234062670

$2.11

5200

Dash Support

707900479

$16.49

5210

LH Speaker Cover

707900465

$28.49

5215

RH Speaker Cover

707900590

$28.49

5220

Edge Clip

517302785

$0.88

5230

Panel Nut M6 X 1.0

250100198

$2.11

5240

Torx Screw M6 X 20

250000722

$1.68

5250

Tuflok Plastic Rivet

293150230

$1.47

5260

Insert

707900133

$2.89

5270

Washer

503189273

$3.28

5400

Central Dashboard

707901065

$72.99

5420

Grommet

517303756

$4.09

5430

Torx Screw M6 X 20

250000722

$1.68

5440

Key Protector

707900598

$4.19

5500

Dash Cover

707900400

$26.99

5600

Glove Box Cover Kit

715004067

$55.99

5700

Glove Box

707901133

$94.99

5710

Torx Truss M6 X 50

250000868

$2.11

5720

Panel Nut M6 X 1.0

250100198

$2.11

5730

Rubber Stopper

708000759

$4.19

5750

Grommet

517303756

$4.09

5760

Tuflok Plastic Rivet

293150230

$1.47

5780

Panel Nut M6 X 1.0

250100198

$2.11

5790

Torx Screw M6 X 20

250000722

$1.68

5900a

Central Mirror

707900502

$56.99

5900b

Torx Truss Screw M6 X 12

250000767

$2.00

9940

Torx Screw M6 X 20

250000722

$1.68

9945

Torx Screw M6 X 20

250000712

$2.11

9950

Stainless Steel Flat Washer

234062670

$2.11
