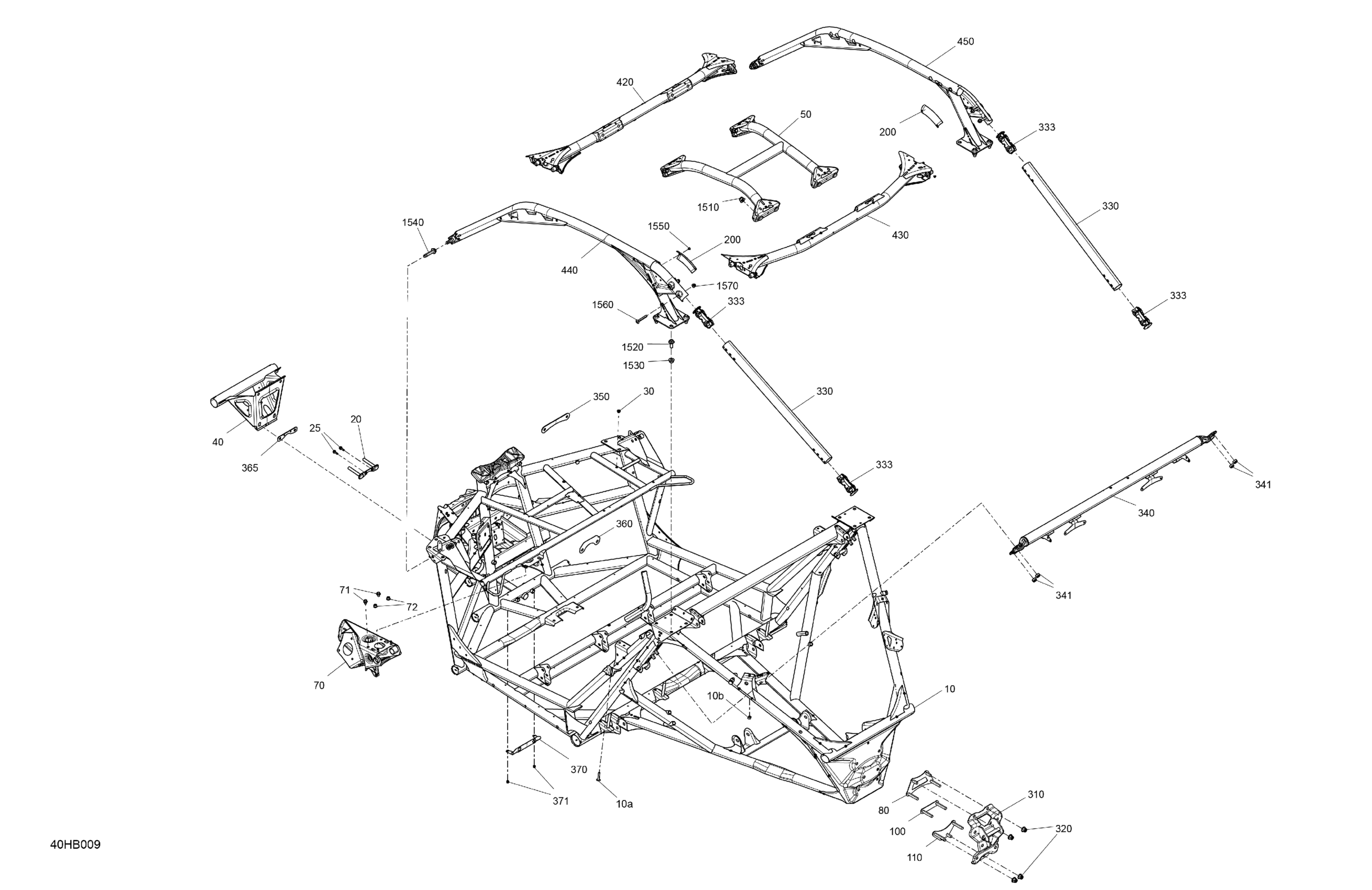

Can-Am Maverick Turbo RR - RS - 2022 Frame - System Diagram

Black, Frame Kit

715009098

$3,459.99

Weld Pin 8mm X 40mm

250000913

$1.61

Nut M6

250100059

$1.60

Front Plate

705207424

$18.43

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

Insert Half Hex Body M6 x 1.0

250100199

$2.54

Black, Front Bumper Kit

715008490

$359.97

Deep Black, Reinforcement Cage | Includes 50 to 50a1j

705210064

$91.99

DPS Support

705206924

$66.12

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

Hex. Elastic Flange Nut M8

233281416

$1.25

Rear Upper Plate

705211557

$17.66

Rear Central Plate

705211558

$17.66

Rear Lower Plate

705211556

$16.89

Black, LH Link Plate | Except Model Gold

705205926

$23.82

Junction Plate Kit

715008492

$41.51

Elastic Flange Nut M12

250001195

$2.15

Deep Black, Rear Pillar

705210066

$24.99

Sleeve

705210648

$9.29

Safety Belt Anchorage

705210001

$119.97

Elastic Stop Nut M12

232521416

$1.40

Connecting Plate

705211552

$4.95

Retaining Plate

705210249

$4.86

Front Plate | Package STD

705207438

$2.69

Support

706203122

$11.00

Pop Rivet 3/16"

390402200

$0.26

Deep Black, Front Cross Member | Includes 420 to 420a1j

705210068

$204.99

Deep Black, Rear Cross Member | Includes 430 to 430a1h

705210070

$204.99

Black, LH Cage Kit

715008442

$399.99

Black, RH Cage Kit

715008456

$399.99

Elastic Flange Nut M12

250001195

$2.15

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$5.07

Elastic Flange Nut M12

250001195

$2.15

Flange Screw M12 X 60

250000857

$6.08

Rivet 3/16"

293150102

$0.71

Torx Truss M8 X 65

250000901

$1.56

Elastic Flange Nut M8

250100025

$1.25
