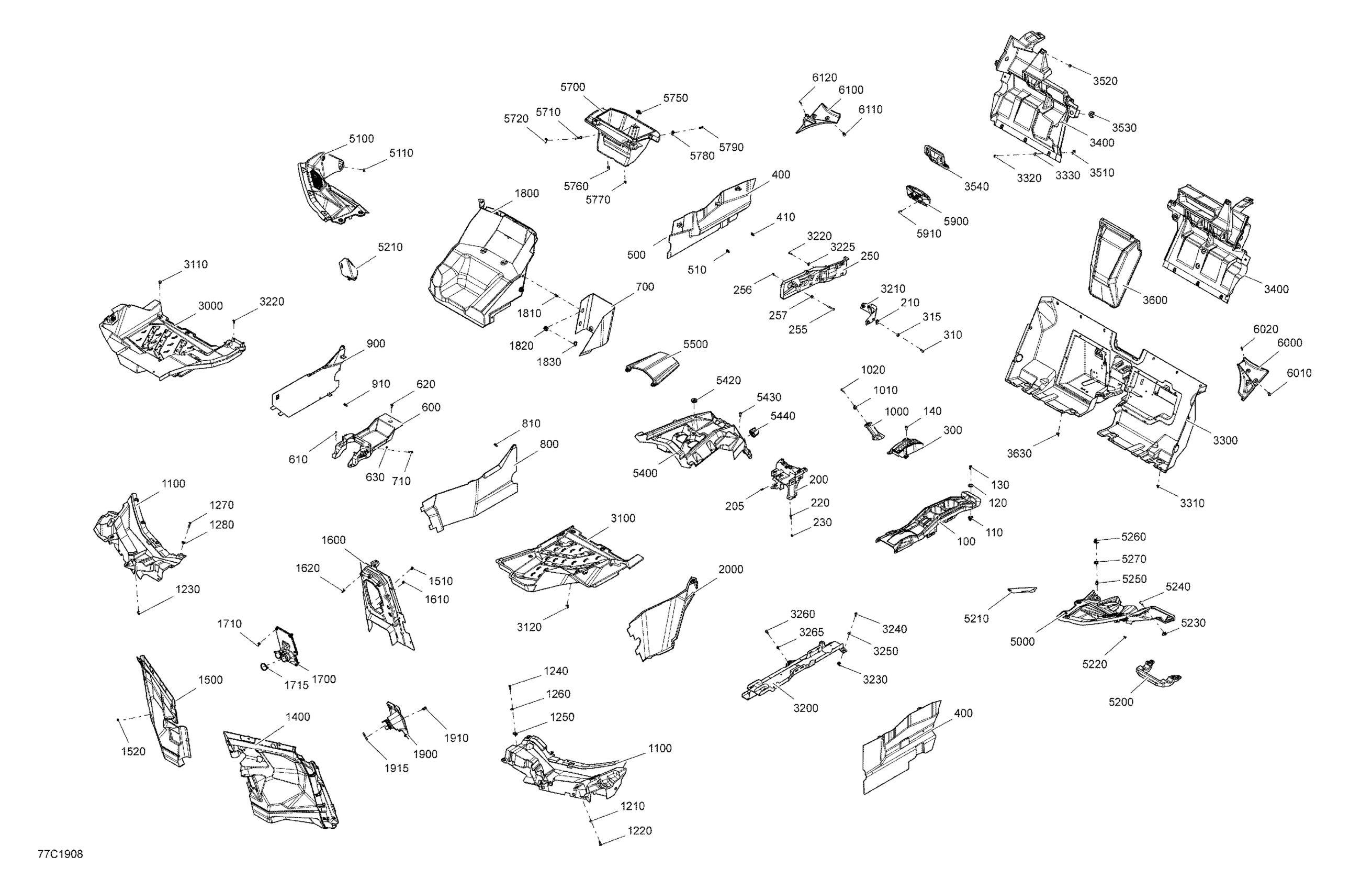

Can-Am Maverick Turbo R - 2019 Cab Interior Maverick - North America Diagram

#

Description
Price

100

Front Console Kit

715004068

$146.99

100

Front Console Kit

715004068

$146.99

100

Front Console Kit

715004068

$146.99

100

Front Console Kit

715005023

$137.28

100

Front Console Kit

715005023

$137.28

110

Insert

707900133

$2.89

120

Washer

503189273

$3.10

130

Tuflok Plastic Rivet

293150230

$1.39

140

Torx Screw M6 X 20

250000722

$1.54

200

Front Central Console Support

707900459

$58.93

205

Torx Screw K50 X 16

250000720

$1.60

210

Panel Nut M6 X 1.0

250100198

$1.99

220

Torx Screw M6 X 20

250000722

$1.54

250

Shifter Gate Support

707900488

$23.85

255

Torx Screw M6 X 45

250000748

$1.79

256

Hex. Flange Elastic Nut M6

233261466

$1.91

257

Stainless Steel Flat Washer

234062670

$2.00

300

Lever Indicator

707900644

$22.36

310

Torx Screw M6 X 20

250000722

$1.54

315

Stainless Steel Flat Washer

234062670

$2.00

400

LH Lateral Dash Panel

707900396

$66.39

410

Clip

705010721

$2.03

500

RH Lateral Dash Panel

707900397

$66.39

510

Clip

705010721

$2.03

600

Front Top Console

707900460

Unavailable

610

Torx Screw Truss Head K50X20 T20

250000760

$2.00

620

Torx Screw M6 X 20

250000722

$1.54

630

Panel Nut M6 X 1.0

250100198

$1.99

700

Cover Central Console

707900473

$23.85

710

Torx Screw M6 X 20

250000722

$1.54

800

LH Console Panel

707901087

$64.90

810

Clip

705010721

$2.03

900

RH Console Panel

707901088

$66.39

910

Clip

705010721

$2.03

1000

Passenger Handle

707900011

$12.43

1010

Connector Tube

707900048

$5.52

1020

Torx Screw M6 X 20

250000722

$1.54

1100

LH Front Upper Deflector

707900337

$128.33

1200

RH Front Upper Deflector

707900338

$167.13

1210

Stainless Steel Flat Washer

234062670

$2.00

1220

Torx Screw M6 X 20

250000722

$1.54

1230

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1240

Torx Screw M6 X 20

250000722

$1.54

1250

Panel Nut M6 X 1.0

250100198

$1.99

1260

Stainless Steel Flat Washer

234062670

$2.00

1270

Stainless, Torx Screw M6 X 30

250000842

$2.00

1280

Panel Nut M6 X 1.0

250100198

$1.99

1400

LH Front Bulkhead

707900930

$84.30

1500

RH Front Bulkhead

707900931

$46.99

1510

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1520

Panel Nut M6 X 1.0

250100198

$1.99

1600

Front Bulkhead Panel

707900407

$47.73

1610

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

1620

Tuflok Plastic Rivet

293150230

$1.39

1700

Grommet

707900701

$15.64

1710

Tuflok Plastic Rivet

293150230

$1.39

1715

Tie-Rap 180 mm

414115200

$0.10

1800

RH Lower Dash Panel

707900410

$68.63

1810

Tuflok Plastic Rivet

293150230

$1.39

1820

Insert

707900133

$2.89

1830

Washer

503189273

$3.10

1900

Steering Column Cover

707900754

$11.51

1910

Tuflok Plastic Rivet

293150230

$1.39

1915

Tie Wrap 368 mm

293750008

$0.97

2000

Side Panel Cover

707900477

$54.45

2005

Panel Nut M6 X 1.0

250100198

$1.99

3000

LH Front Floor

707900339

$60.42

3100

RH Front Floor

707900340

$60.42

3110

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3120

Tuflok Plastic Rivet

293150230

$1.39

3200

Central Support Hose

707900710

$44.75

3210

Cable Support

707900478

$10.82

3220

Torx Screw K50 X 16

250000720

$1.60

3225

Washer M5

250200025

$0.70

3230

Panel Nut M6 X 1.0

250100198

$1.99

3240

Torx Screw M6 X 20

250000722

$1.54

3250

Stainless Steel Flat Washer

234062670

$2.00

3260

Torx Screw M6 X 20

250000722

$1.54

3261

Stainless Steel Flat Washer

234062670

$2.00

3300

Rear Lower Seperation Panel

707900929

$82.06

3310

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3320

Torx Screw M6 X 20

250000722

$1.54

3330

Stainless Steel Flat Washer

234062670

$2.00

3370

Cover Fuse Box

707900703

$33.55

3380

Tuflok Plastic Rivet

293150230

$1.39

3400

LH Upper Bulkhead Kit

703501073

$80.57

3410

Bulkhead Cover

707900652

$12.73

3500

RH Upper Bulkhead Kit

707900935

$79.07

3510

Panel Nut M6 X 1.0

250100198

$1.99

3520

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3530

Grommet

705010718

$2.69

3540

Bulkhead Cover

707900486

$12.79

3600

Central Upper Rear Bulkhead

707900442

$33.55

3600

Middle Upper Rear Bulkhead | Includes 3600 to 3600a

707900649

$33.55

3620

Hose Support | Not Shown

707900651

$35.04

3630

Tuflok Plastic Rivet

293150230

$1.39

3660

Support Hose Rear

707900699

$5.21

3670

Support Hose Rear

707900729

$5.21

5000

LH Dashboard Kit

715006587

$102.21

5100

RH Dashboard

707900698

$36.54

5110

Stainless Steel Flat Washer

234062670

$2.00

5200

Dash Support

707900479

$13.52

5210

LH Speaker Cover

707900465

$26.09

5215

RH Speaker Cover

707900590

$26.09

5220

Edge Clip

517302785

$0.81

5230

Panel Nut M6 X 1.0

250100198

$1.99

5240

Torx Screw M6 X 20

250000722

$1.54

5241

Torx Screw M6 X 20

250000712

$2.00

5250

Tuflok Plastic Rivet

293150230

$1.39

5260

Insert

707900133

$2.89

5270

Washer

503189273

$3.10

5400

Dashboard Central

707900700

$57.43

5420

Grommet

517303756

$3.61

5430

Torx Screw M6 X 20

250000722

$1.54

5440

Key Protector

707900598

$4.04

5500

Dash Cover

707900400

$23.85

5600

Glove Box Cover Kit

715004067

$49.97

5700

Glove Box

707900350

$85.04

5710

Torx Truss M6 X 50

250000868

$2.00

5720

Panel Nut M6 X 1.0

250100198

$1.99

5750

Grommet

517303756

$3.61

5760

Tuflok Plastic Rivet

293150230

$1.39

5770

Rubber Bumper

293830005

$6.12

5780

Panel Nut M6 X 1.0

250100198

$1.99

5790

Torx Screw M6 X 20

250000722

$1.54

5900

Central Mirror

707900502

$52.96

5910

Torx Truss Screw M6 X 12

250000767

$1.91

6000

Warning Label Plate

707900507

$9.85

6010

Pop Rivet 3/16"

293150103

$0.52

6020

Torx Screw K50 X 16

250000720

$1.60

6100

Warning Label Plate

707900574

$9.85

6110

Pop Rivet 3/16"

293150103

$0.52

6120

Torx Screw K50 X 16

250000720

$1.60

6200

LH Shoulder Pad

707900615

$11.72

6250

RH Shoulder Pad

707900616

$11.72

6260

Panel Nut M6 X 1.0

250100198

$1.99

6270

Torx Screw M6 X 20

250000722

$1.54

6280

Stainless Steel Flat Washer

234062670

$2.00
