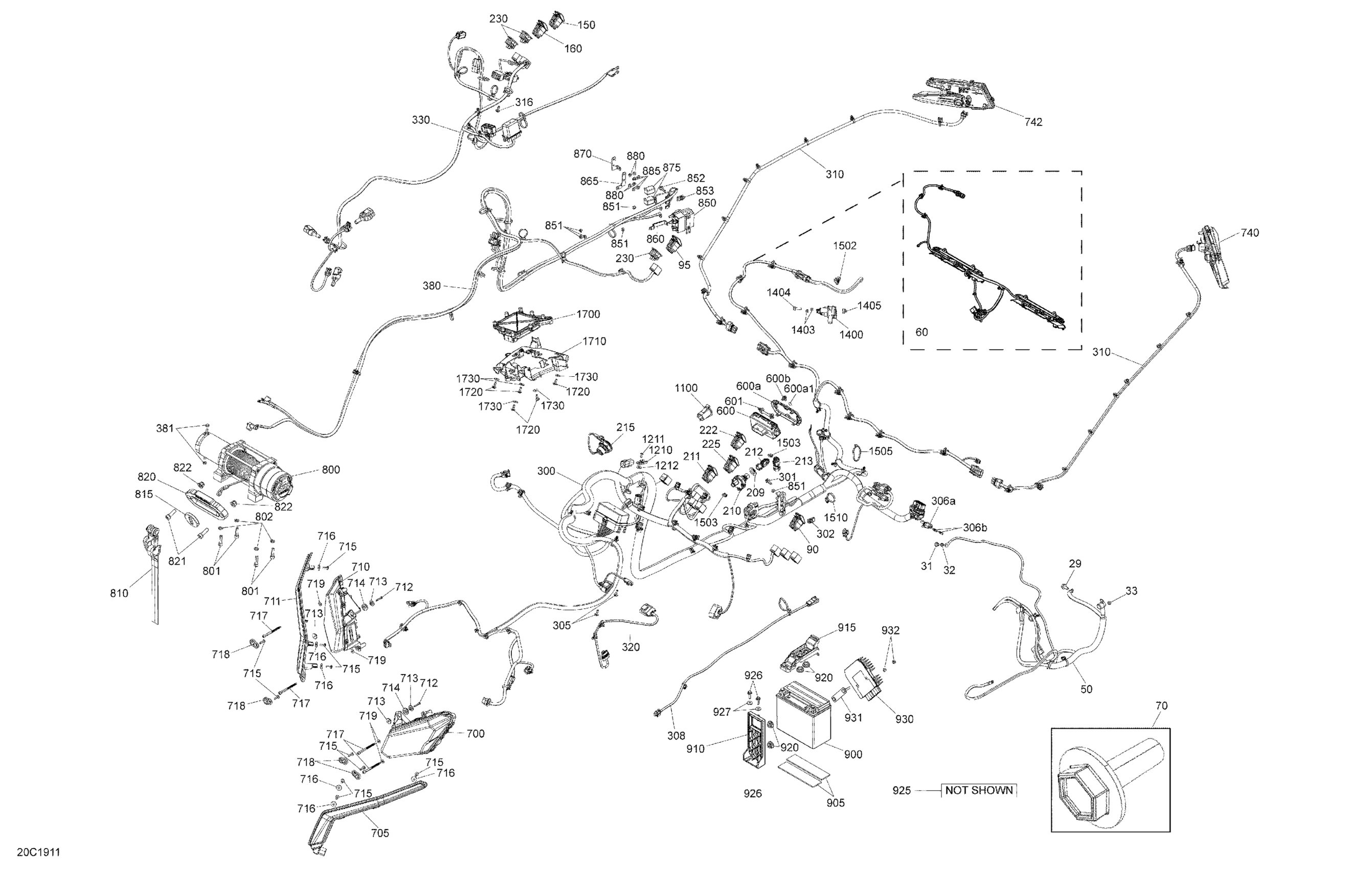

Can-Am Maverick Turbo R - 2019 Electrical - Packages XMR & XRC Diagram

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

External Serrated Lock Washer 6 mm

234461608

$1.06

Elastic Stop Nut M6

232561434

$1.78

Starter Wiring Harness

710006022

$64.15

Wiring Harness Junction

710006246

$87.28

Screw PT Type K-50 X 16

250000959

$2.00

Light Switch

710004492

$44.00

Differential Switch

710006040

$29.82

Differencial Mode Switch

710005903

$29.82

Diffrrential Mode Switch

710005925

$21.61

Safety Nut (DESS Switch)

278002963

$3.12

Terminal Dess One-Wire | Except Model Europe

515178840

$77.58

Switch DPS

710001781

$22.24

Grey Key RFID | Except Model Europe, Except T3

710004964

$53.70

Green Key RFID | Except Model Europe, Except T3

710005232

$53.70

Start-Stop Button | Not Shown

710005213

$55.94

Driving Mode Switch

710005909

$36.49

Switch, Over ride

710002053

$19.27

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

Main Wiring Harness | Includes 300 to 300a

710006253

$827.58

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Screw PT Type K-50 X 16

250000959

$2.00

Rear Wiring Harness

710006424

$24.60

Screw PT Type K-50 X 16

250000959

$2.00

Cable Throttle Pedal

710005291

$211.91

Front Differential Wiring Harness

710006807

$44.75

Speedometer | Includes 600 to 600a

710006334

$394.00

Lens | XTP

415129349

$22.36

Speedometer Button | XTP

415129355

$13.52

LH Front Auxiliary LED Light

710008811

$436.99

LH Signature Beam

710004994

$151.46

RH Front Auxiliary LED Light

710008812

$427.49

RH Signature Beam

710004995

$151.46

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.25

Torx Screw K50 X 16

250000720

$1.60

Stainless Steel Flat Washer

234062670

$2.00

Ajustment Screw

710005837

$5.90

Adjustment Guide

710005097

$7.88

O-Ring

293300192

$3.81

LH Tail Light

710004743

$120.12

RH Tail Light

710004744

$120.12

Electric Winch

710006990

$711.16

Elastic Stop Nut M6, Brass

232561200

$4.03

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Battery Bolt Kit

250000282

$3.39

Rubber Pad

293830126

$12.64

Fixation Plate

710004788

$9.48

Fixation Plate

710004789

$6.72

Stopper Rubber

705014429

$6.09

Insert Half Hex Body M6 x 1.0

250100199

$2.91

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Flat Washer 6 mm

234062410

$0.73

Voltage Regulator

710005842

$183.55

Bracket

710005782

$10.67

Elastic Stop Nut M6

232561434

$1.78

Battery Cable Cap

710006471

$2.59

12V Power Outlet

710005374

$31.31

Clip

270000141

$9.57

Pop Rivet 3/16"

390402300

$0.73

Washer | DS 650 X

391301600

$0.46

Starter Relay

278003012

$40.27

Elastic Stop Nut M6, Brass

232561200

$4.03

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

Front Drive Module

710006479

$423.85

FDM Support

710005807

$6.73

Screw PT Type K-50 X 16

250000959

$2.00

Washer M5

250200025

$0.70
