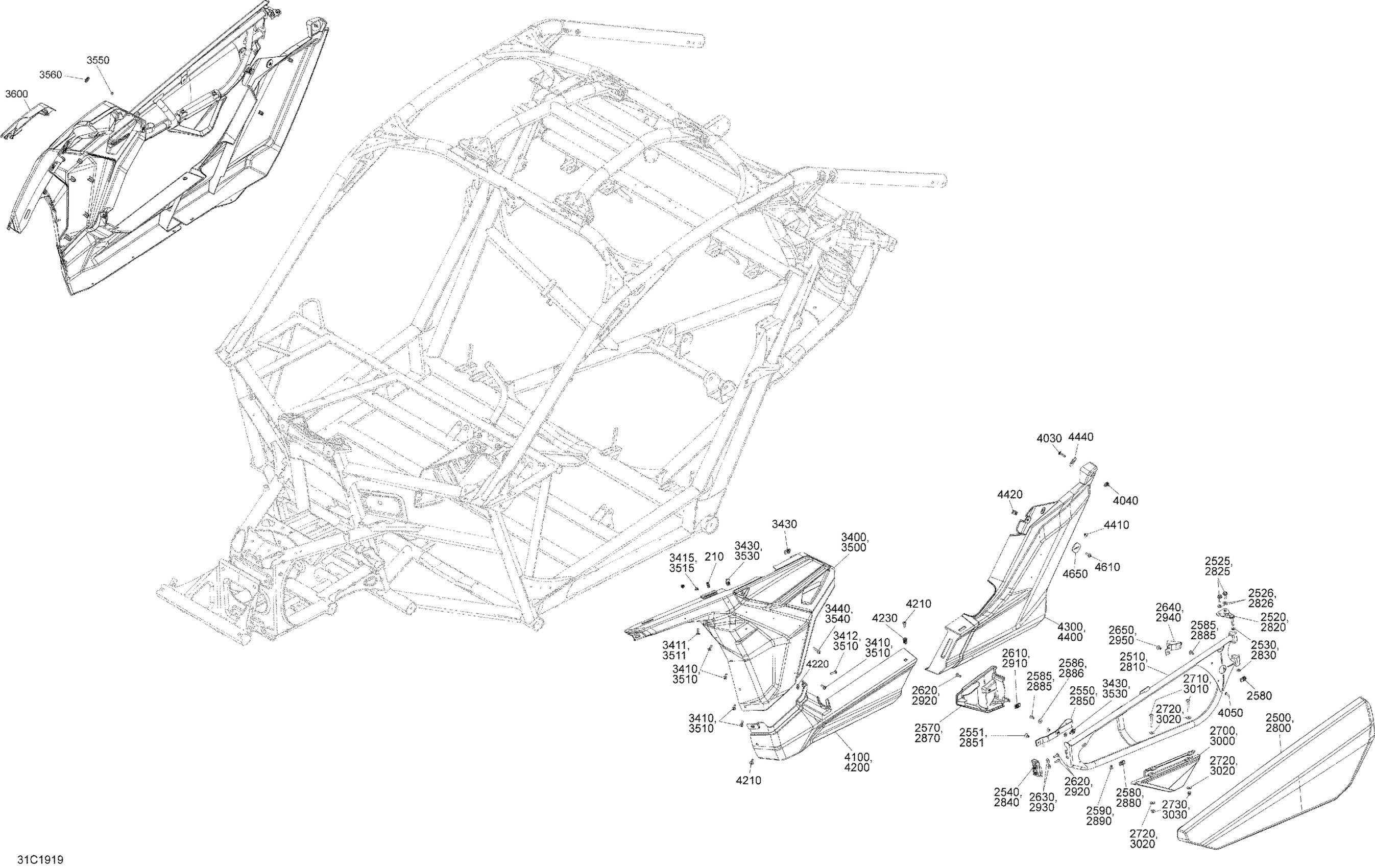

Can-Am Maverick Turbo R - 2019 Body - Side Section - Platinum Silver Diagram

#

Description
Price

210

Clip

705010721

$2.31

2500

Silver Platinum, LH Door Panel

705012581

$197.66

2510

Deep Black, LH Front Door

705018468

$145.35

2520

Door Support

705011187

$10.98

2525

Hex Screw Washer Head M8 X 20

207582054

$2.61

2526

Flat Washer M8

234081430

$1.74

2530

Flat Washer 8 mm, Nylon

234081100

$1.00

2540

LH Latch

705013095

$55.35

2550

Belt

293850135

$14.75

2551

Pop Rivet 3/16"

293150103

$0.54

2552

Bushing | DS 650 X

293900104

$5.26

2570

LH Latch Cover

705013535

$36.89

2580

Panel Nut M6 X 1.0

250100198

$1.73

2585

Torx Truss Screw M6 X 16

250000721

$1.39

2586

Stainless Steel Flat Washer

234062670

$1.74

2590

Pop Rivet 3/16"

293150103

$0.54

2610

Panel Nut M6 X 1.0

250100198

$1.73

2620

Torx Screw M6 X 20

250000722

$1.34

2630

Flat Washer

224061121

$0.44

2640

Door Belt

293850129

$15.35

2650

Pop Rivet 3/16"

293150103

$0.54

2700

LH Lower Door Panel

705010732

$53.82

2710

Torx Truss Screw M6 X 50

250000749

$3.11

2720

Stainless Steel Flat Washer

234062670

$1.74

2730

Hex. Flange Elastic Nut M6

233261466

$1.66

2800

Silver Platinum, RH Door Panel

705012582

$197.66

2810

Deep Black, RH Front Door

705018470

$145.35

2820

Door Support

705011187

$10.98

2825

Hex Screw Washer Head M8 X 20

207582054

$2.61

2826

Flat Washer M8

234081430

$1.74

2830

Flat Washer 8 mm, Nylon

234081100

$1.00

2840

RH Latch

705013096

Unavailable

2850

Belt

293850135

$14.75

2851

Pop Rivet 3/16"

293150103

$0.54

2852

Bushing | DS 650 X

293900104

$5.26

2870

RH Latch Cover

705013536

$36.89

2880

Panel Nut M6 X 1.0

250100198

$1.73

2885

Torx Truss Screw M6 X 16

250000721

$1.39

2886

Stainless Steel Flat Washer

234062670

$1.74

2890

Pop Rivet 3/16"

293150103

$0.54

2910

Panel Nut M6 X 1.0

250100198

$1.73

2920

Torx Screw M6 X 20

250000722

$1.34

2930

Flat Washer

224061121

$0.44

2940

Door Belt

293850129

$15.35

2950

Pop Rivet 3/16"

293150103

$0.54

3000

RH Lower Door Panel

705010733

$59.97

3010

Torx Truss Screw M6 X 50

250000749

$3.11

3020

Stainless Steel Flat Washer

234062670

$1.74

3030

Hex. Flange Elastic Nut M6

233261466

$1.66

3400

Black, LH Front Lateral Panel Kit

715006594

$115.35

3410

Torx Screw M6 X 20

250000722

$1.34

3411

Torx Screw M6 X 20

250000712

$1.74

3412

Torx Truss Screw M6 X 25

250000807

$1.74

3415

Hex. Flange Elastic Nut M6

233261494

$1.26

3430

Panel Nut M6 X 1.0

250100198

$1.73

3440

Torx Truss M6 X 50

250000868

$1.74

3500

RH Front Lateral Panel Kit

715004074

$101.51

3510

Torx Screw M6 X 20

250000722

$1.34

3511

Torx Screw M6 X 20

250000712

$1.74

3515

Hex. Flange Elastic Nut M6

233261494

$1.26

3530

Panel Nut M6 X 1.0

250100198

$1.73

3540

Torx Truss M6 X 50

250000868

$1.74

3550

Hex. Flange Elastic Nut M6

233261494

$1.26

3560

Grommet

517303756

$3.15

3600

Lateral Cover

705017564

$40.74

4030

Torx Truss Screw M6 X 25

250000807

$1.74

4040

Panel Nut M6 X 1.0

250100198

$1.73

4050

Torx Screw K50 X 16

250000720

$1.39

4100

LH Central Lateral Panel

705009513

$64.58

4200

Deep Black, RH Central Body Panel

705017555

$69.20

4210

Torx Screw M6 X 20

250000722

$1.34

4220

Panel Nut M6 X 1.0

250100198

$1.73

4230

Insert

705016606

$2.31

4300

LH Rear Lateral Panel

705010676

$110.74

4400

Deep Black, RH Rear Lateral Panel

705010677

$110.74

4410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

4420

Panel Nut M6 X 1.0

250100198

$1.73

4440

Support Plate

705003841

$0.91

4610

Torx Screw M6 X 20

250000722

$1.34

4650

Support Plate

705003841

$0.91
